Neles Corporation

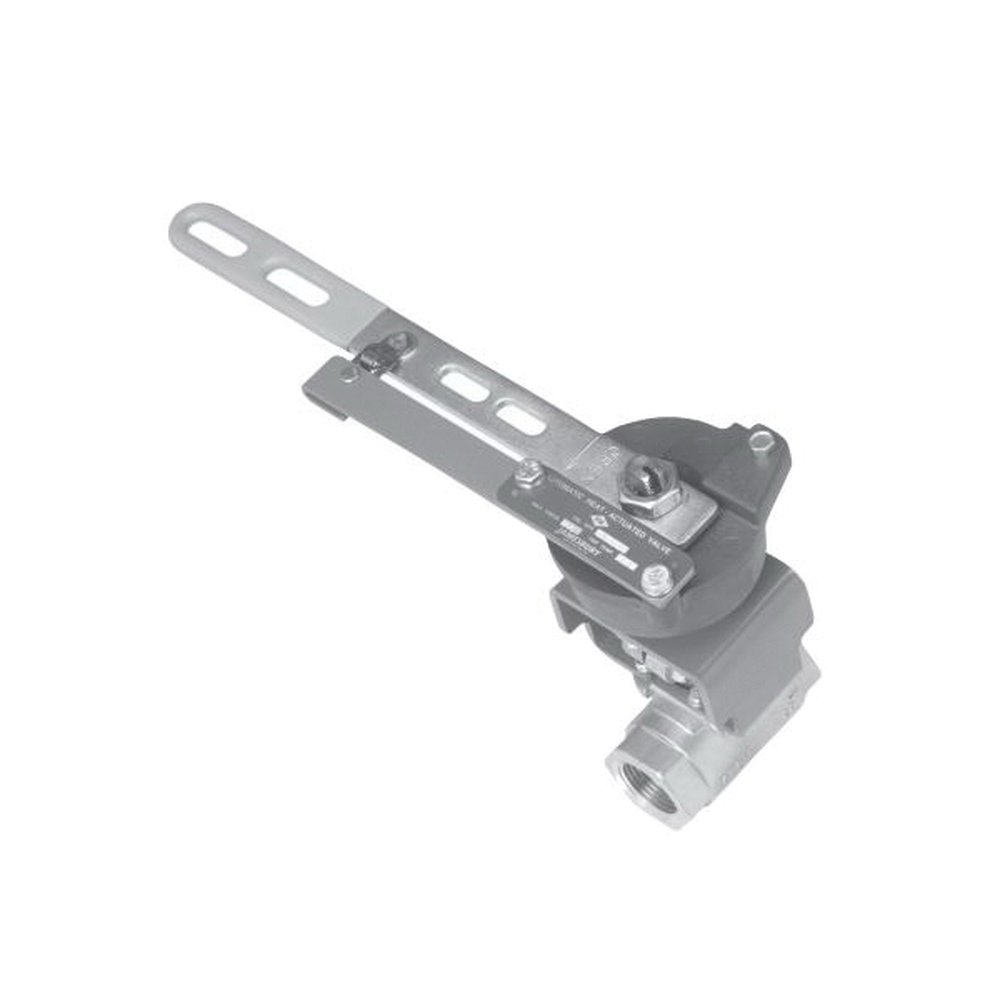

1-1/2 1075 73T010 JAMESBURY EMERGENCY SHUTOFF VALVE

Mouse over image to zoom, click to enlarge

Description: Jamesbury™ Emergency Shut-Off and Firesafe Valve, Series: 1075, 1-1/2 in Nominal, Screwed End Style, 1440/2000 psi Pressure, 165 deg F, 95 cfm Flow Rate, Media: Flammable Fluid/Gas/Liquid, Spring Return Handle Actuator, 316 Stainless Steel Body, 316 Stainless Steel Trim/PTFE Seat Trim

Manufacturer PN: MA0127590

Forberg Smith PN: 3507689

Invoice Description:

1-1/2 1075 73T010 JAMESBURY EMERGENCY SHUTOFF VALVE

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Jamesbury™ MA0127590 1075 Emergency Shut-Off and Firesafe Valve, 1-1/2 in Nominal, Screwed End Style, 316 Stainless Steel Body, Spring Return Handle Actuator

Price:  $1,194.00 / ea
Price not maintained - Will need to be verified


Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

The Jamesbury™ brand FM (factory manual) approved emergency shut-off and firesafe valves figure 1075 are manual assemblies consisting of the Jamesbury™ Fire-Tite™ valves and the Jamesbury™ Torq-Handle™ these assemblies provide automatic closure of a normally open valve in the event of a fire or excessive temperature. These assemblies are used for all types of media including flammable gases, liquids and toxic fluids.
Jamesbury™ Emergency Shut-Off and Firesafe Valve, Series: 1075, 1-1/2 in Nominal, Screwed End Style, 1440/2000 psi Pressure, 165 deg F, 95 cfm Flow Rate, Media: Flammable Fluid/Gas/Liquid, Spring Return Handle Actuator, 316 Stainless Steel Body, 316 Stainless Steel Trim/PTFE Seat Trim

Specifications

 Actuator Type Spring Return Handle
 Body Material 316 Stainless Steel
 Brand Name Jamesbury™
 End Style Screwed
 Flow Rate 95 cfm
 Manufacturer Part Number MA0127590
 Nominal Size 1/1/2002 in
 Pressure Rating 1440/2000 psi
 Series 1075
 Standards/Approvals Class 1, Group C and D, Class 2, Groups E/F/G and G, Division 1|CSA Certified|FM Approved
 Temperature Rating 165 deg F
 Trim Material 316 Stainless Steel Trim/PTFE Seat

Features

▪ 1440 psi ASME rated and 2000 psi CWP rated pressure
▪ Automatic closure in the event of a fire
▪ FM approved for emergency shut-off service
▪ FM approved as firesafe valves for flammable liquid service
▪ Quarter turn operation for shut-off in the event of an emergency
▪ Flexible lip seat design for reliable long-lasting sealing
▪ PTFE seats and seals for easy cycling, even when operated infrequently
▪ Series 2000 body style
▪ Spring-to-close Torq-Handle™ release mode
▪ Without switch

Resources

 Product Data Sheet
