1-1/2 AZ2236XTD MODEL D CS/SS BV THD

Mouse over image to zoom, click to enlarge

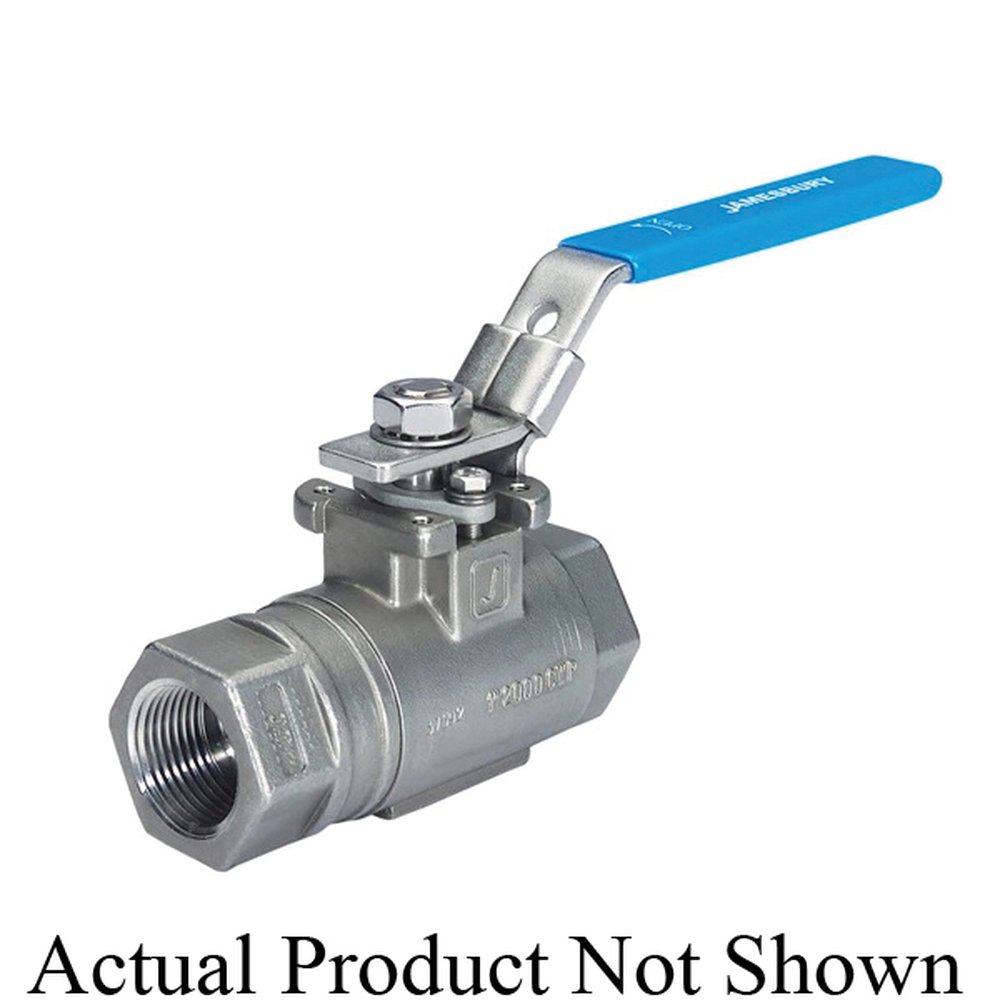

Description: Jamesbury™ Ball Valve, A-Style Model D Fire-Tite®, 1-1/2 in Nominal, Threaded End Style, 2000 psi Pressure, -20 to 100 deg F, Standard Port, 1-1/4 in Orifice, 316 Stainless Steel Ball, 4.56 in Inlet to Outlet Length, 4.27 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem/Xtreme™ Seat Trim, Graphite/TFM® Softgoods

Manufacturer PN: MA0010250

Forberg Smith PN: 4567933

Invoice Description:

1-1/2 AZ2236XTD MODEL D CS/SS BV THD


SPEC SHEET

How Can We Make This Page Better?

Jamesbury™ MA0010250 A-Style Model D Fire-Tite® Ball Valve, 1-1/2 in Nominal, Threaded End Style, Carbon Steel Body, Standard Port, Graphite/TFM® Softgoods

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The A-style ball valve, brings you the performance and design features you've been looking for all in a single, low-cost valve. This ball valve's unique design offers firetest specifications, rugged actuator mounting and flexible lip seats for application versatility that surpasses other ball valves. Intended for replacement of existing installed product only. The A-style ball valve is available in 1/4 to 2 in (DN 8 to 50) sizes rated by the traditional approach for threaded end valves. This approach determines cold working pressure (CWP) based on paragraph UG101 of the ASME boiler and pressure vessel code.
Jamesbury™ Ball Valve, A-Style Model D Fire-Tite®, 1-1/2 in Nominal, Threaded End Style, 2000 psi Pressure, -20 to 100 deg F, Standard Port, 1-1/4 in Orifice, 316 Stainless Steel Ball, 4.56 in Inlet to Outlet Length, 4.27 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem/Xtreme™ Seat Trim, Graphite/TFM® Softgoods

Specifications

 Body Material Carbon Steel
 Brand Name Jamesbury™
 End Style Threaded
 Inlet to Outlet Length 4.56 in
 Manufacturer Part Number MA0010250
 Nominal Size 1-1/2 in
 Orifice Size 1-1/4 in
 PART NUMBER KEYWORDS MA0010250 ; 1-1/2 AZ-2236XTD ; 112AZ2236XTD
 Pressure Rating 2000 psi
 Softgoods Material Graphite/TFM®
 Standards/Approvals API 607|ASTM A216 Type WCB
 Temperature Rating -20 to 100 deg F
 Top to Inlet Center 4.27 in
 Trim Material 316 Stainless Steel Stem/Xtreme™ Seat
 Type A-Style Model D Fire-Tite®

Features

▪ Direct replacement for vintage A-style product
▪ Graphite/TFM® seal material
▪ Robust engineering design
▪ Self-relieving seat technology
▪ High quality
▪ Unique face to face dimension
▪ Very long service life
▪ Bi-directional in hazardous media service
▪ Low fugitive emissions
▪ Bubble tight shut-off
▪ Automatable
