NIBCO Inc.

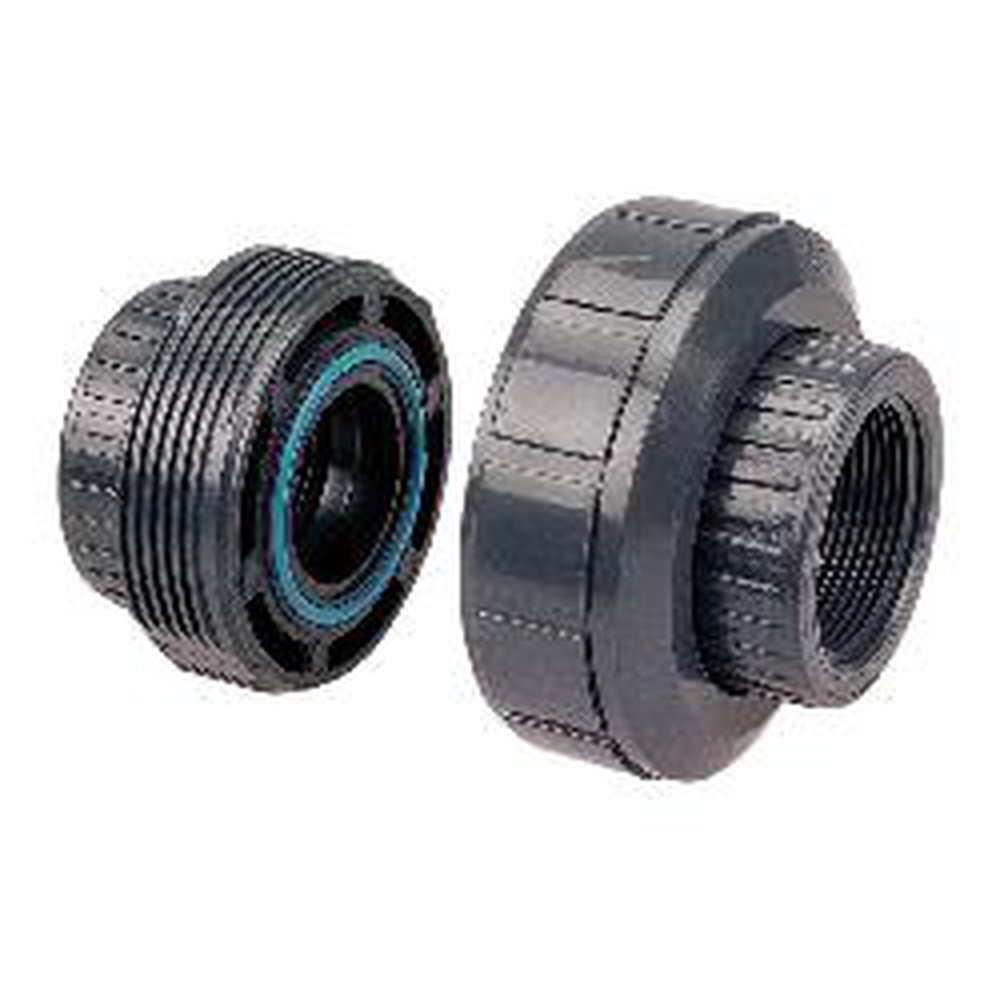

2 NIBCO PVC SCH 80 THD UNION VITON 4533-3-3 858-020

Mouse over image to zoom, click to enlarge

Description: Chemtrol® Union, Series: 961747, Union, 2 in Nominal, FNPT, SCH 80/XH, PVC, FKM Fluorocarbon Seal, Dark Gray, 140 deg F Service, Domestic

Manufacturer PN: 858-020

UPC:  039923171306

Forberg Smith PN: 3365390

Invoice Description:

2 NIBCO PVC SCH 80 THD UNION VITON 4533-3-3 858-020


How Can We Make This Page Better?

Chemtrol® CA20500 961747 Union, 2 in Nominal, FNPT End Style, SCH 80/XH, PVC, FKM Fluorocarbon Seal, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The dark grey PVC threaded union features female pipe thread connections. This fitting has an FKM fluorocarbon which is suited to most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. PVC Schedule 80 has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping. Chemtrol® PVC fittings are lightweight, easy to install, maintenance free, and will not rust, scale, pit or corrode. Chemtrol® premium line of plastic fittings is backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control fittings are unsurpassed in quality, performance and longevity.
Chemtrol® Union, Series: 961747, Union, 2 in Nominal, FNPT, SCH 80/XH, PVC, FKM Fluorocarbon Seal, Dark Gray, 140 deg F Service, Domestic

Specifications

 Application Chemical Processing, Industrial Plating, Chilled Water Distribution, Deionized Water Lines, Chemical Drainage and Waste Water Treatment Systems
 Brand Name Chemtrol®
 Color Dark Gray
 Domestic or Import Domestic
 End Style FNPT
 Fitting Type Union
 Manufacturer Part Number CA20500
 Material PVC
 Nominal Size 2 in
 PART NUMBER KEYWORDS CA20500 ; 858-020 ; 858020 ; 039923171306 ; 03992317130 ; 39923171306
 Schedule Rating SCH 80/XH
 Seal Material FKM Fluorocarbon
 Series 4533-3-3
 Standards/Approvals ASTM F1970|NSF/ANSI 14/61|Annex G
 Temperature Rating 140 deg F Service

Features

▪ Female NPT thread connections
▪ Do not use or test with compressed air or other gases
