Dixon Valve & Coupling

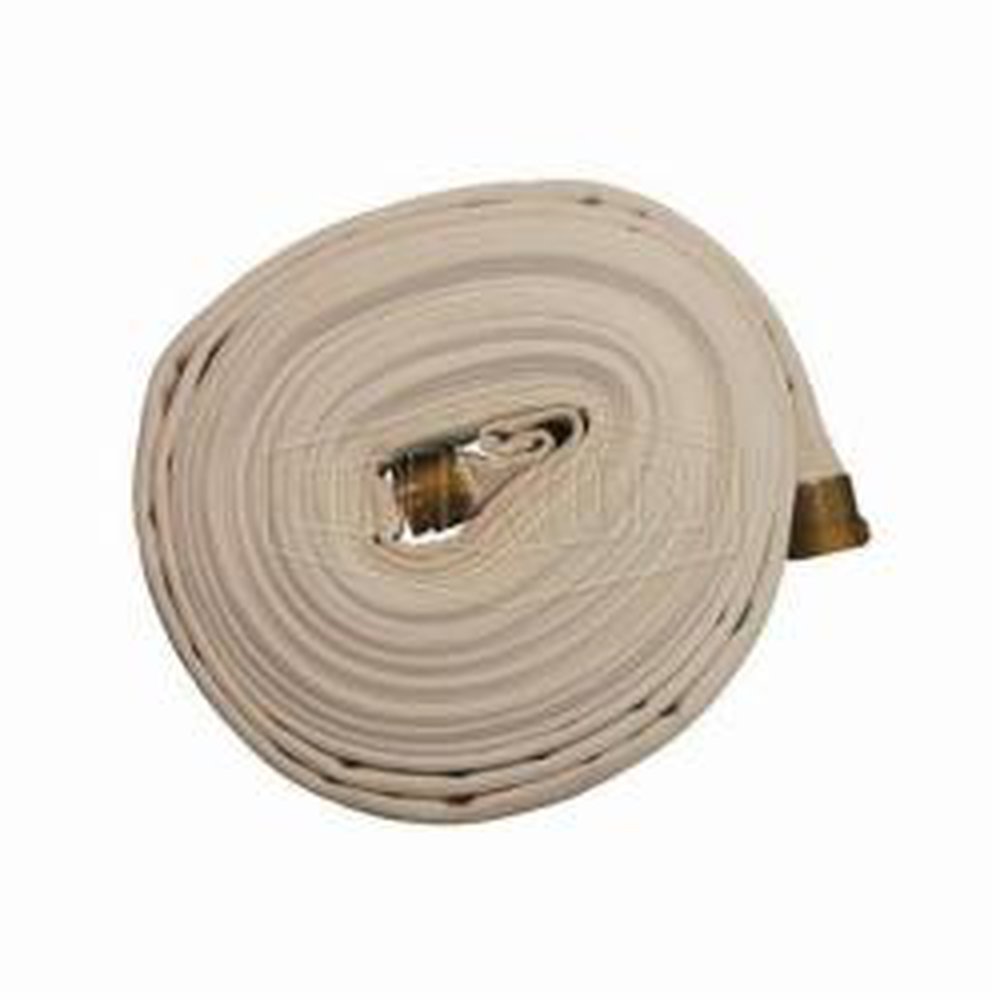

1-1/2 X 50 FOOT 800# DOUBLE JAXCKET ALL POYLESTER FIR HOSE D815-50RBF

Mouse over image to zoom, click to enlarge

Description: Dixon® Fire Hose, Double Jacket, 1-1/2 in Nominal Size, NST (NH), 50 ft Length, 360 psi Working, Polyester, White, Domestic

Manufacturer PN: D815-50RBF

UPC:  69746445189

Forberg Smith PN: 3894108

Invoice Description:

1-1/2 X 50 FOOT 800# DOUBLE JAXCKET ALL POYLESTER FIR HOSE D815-50RBF


SPEC SHEET

How Can We Make This Page Better?

Dixon® D815-50RBF Double Jacket Fire Hose, 1-1/2 in, NST (NH), 50 ft L, 360 psi Working, Polyester, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Fire Hose, Double Jacket, 1-1/2 in Nominal Size, NST (NH), 50 ft Length, 360 psi Working, Polyester, White, Domestic

Specifications

 Brand Name Dixon®
 Color White
 Domestic or Import Domestic
 End Style NST (NH)
 Length 50 ft
 Manufacturer Part Number D815-50RBF
 Material Polyester
 Nominal Size 1-1/2 in
 PART NUMBER KEYWORDS D815-50RBF ; D81550RBF ; 089109790227 ; 08910979022 ; 89109790227
 Type Double Jacket
 Working Pressure 360 psi

Features

▪ Brass expansion ring coupling
▪ 800 psi proof pressure
▪ 400 psi service test pressure
▪ Black extruded EPDM rubber liner tube
▪ Rocker lug style
▪ 360 psi at ambient temperature 70 deg F
▪ Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
