ASCO
1-1/4 8290A017 BRZ 2-WAY NC CV 32 90MM HEAD ASCO ANGLE BODY PISTON VALVE

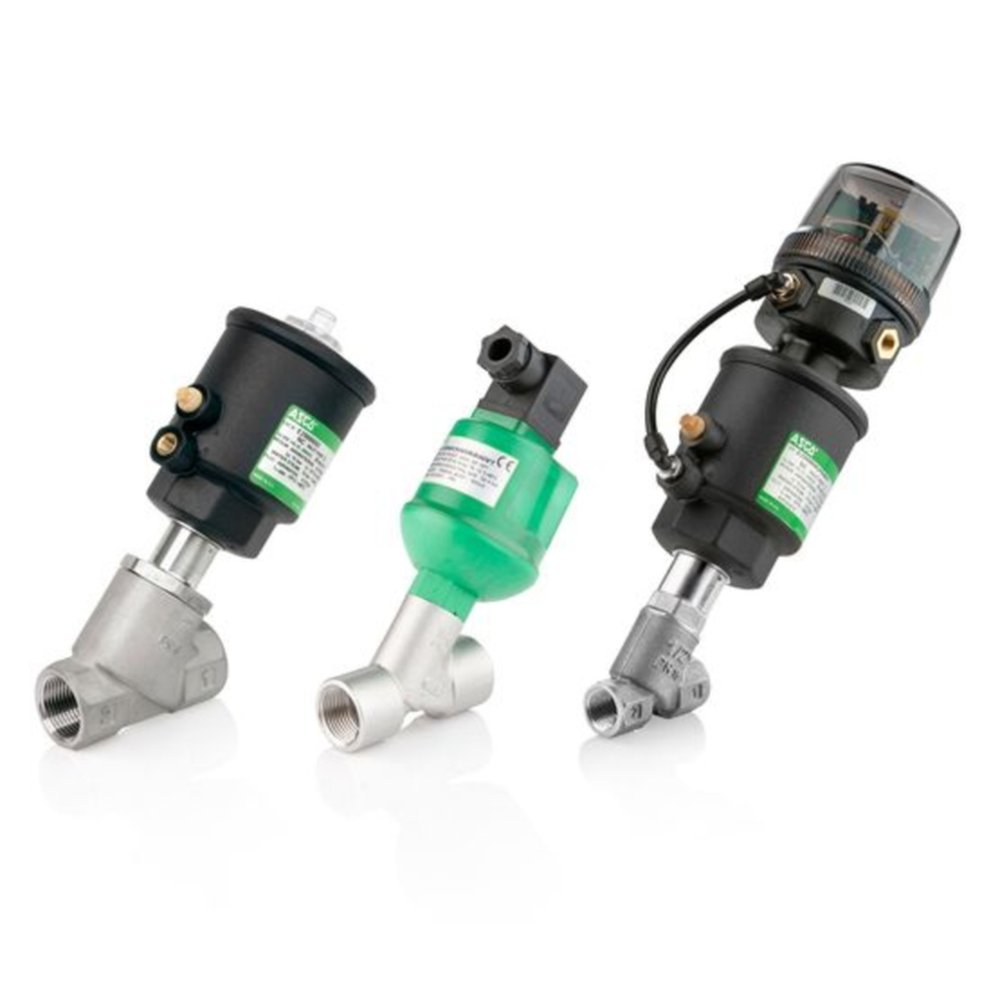

Mouse over image to zoom, click to enlarge

Description: Angle body piston valves are two-way (2/2) air operated valves that can replace motorized or air actuated ball valve packages in any application. We recommend 8320 Series 3-Way pilot valves for operation. ASCO Angle Body Piston valves are inherently soft closing preventing water hammer and provide tight shut off. ASCO 8290 Air or Water Operated Valves are built for demanding on/off applications, such as Air, Inert Gases, Water, Oil, Light Slurries, Steam and Hot Water.

Manufacturer PN: 8290A017

Forberg Smith PN: 3044010

Invoice Description:

1-1/4 8290A017 BRZ 2-WAY NC CV 32 90MM HEAD ASCO ANGLE BODY PISTON VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Angle Body Piston Valves


How Can We Make This Page Better?

ASCO 8290A017 Bronze 1-1/4 In Piston Valve, Normally Closed, 90MM Operator

Price:  $831.00 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

Angle body piston valves are two-way (2/2) air operated valves that can replace motorized or air actuated ball valve packages in any application. We recommend 8320 Series 3-Way pilot valves for operation. ASCO Angle Body Piston valves are inherently soft closing preventing water hammer and provide tight shut off. ASCO 8290 Air or Water Operated Valves are built for demanding on/off applications, such as Air, Inert Gases, Water, Oil, Light Slurries, Steam and Hot Water.

Specifications

 Ambient Temperature Range 15 to 140°F
 Body Design 2-Way
 Body Material Bronze
 Brand Name ASCO
 Category Valves
 Cv Flow Factor 32
 Entry Under Disc
 Head Diameter 90MM
 Manufacturer ASCO
 Max Fluid Temperature 366°F
 Max ODP Fluid 180 PSI
 Max ODP Steam 150 PSI
 Maximum Pilot Pressure 150 PSI
 Minimum OPD 0 PSI
 Minimum Pilot Pressure 60 PSI
 Operation Normally Closed
 Series 8290
 Size 1-1/4 in

Resources

 Product Data Sheet
