Neles Corporation
1 152M CS/SS BV THD

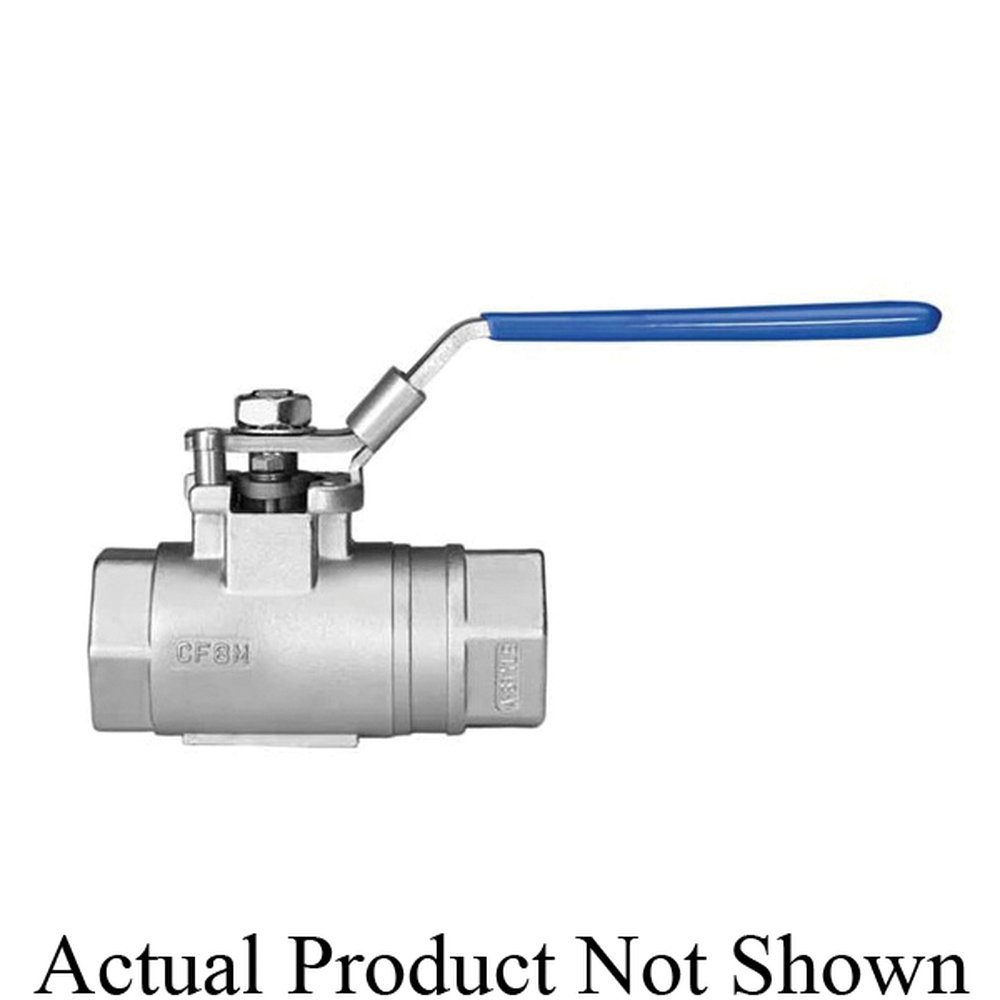

Mouse over image to zoom, click to enlarge

Description: Jamesbury™ Value-Line™ Ball Valve, 2-Piece General Purpose, Series: 100, 1 in Nominal, NPT End Style, 2000 psi Pressure, -20 to 100 deg F, Standard Port, 0.87 in Orifice, Locking Handle Actuator, 316 Stainless Steel Ball, 3.23 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel Stem/Reinforced PTFE Seat Trim, Reinforced PTFE Softgoods

Manufacturer PN: MA0020017

Forberg Smith PN: 3016336

Invoice Description:

1 152M CS/SS BV THD

UNSPSC: 40141600


SPEC SHEET

▸ See All in Ball Valves - Carbon Steel Threaded


How Can We Make This Page Better?

Jamesbury™ Value-Line™ MA0020017 100 2-Piece General Purpose Ball Valve, 1 in Nominal, NPT End Style, Carbon Steel Body, Standard Port, Reinforced PTFE Softgoods

Price:  $86.75 / ea


Availability: 8 ea  i


Quantity  ea Add to Cart

Description

Jamesbury™ series 100 general purpose ball valves feature bubble tight shut-off for industrial and utility services. Ideal for applications where non-relieving seats are acceptable.
Jamesbury™ Value-Line™ Ball Valve, 2-Piece General Purpose, Series: 100, 1 in Nominal, NPT End Style, 2000 psi Pressure, -20 to 100 deg F, Standard Port, 0.87 in Orifice, Locking Handle Actuator, 316 Stainless Steel Ball, 3.23 in Inlet to Outlet Length, Carbon Steel Body, 316 Stainless Steel Stem/Reinforced PTFE Seat Trim, Reinforced PTFE Softgoods

Specifications

 Actuator Type Locking Handle
 Body Material Carbon Steel
 Brand Name Jamesbury™
 End Style NPT
 Inlet to Outlet Length 3.23 in
 Manufacturer Part Number MA0020017
 Nominal Size 1 in
 Orifice Size 0.87 in
 Pressure Rating 2000 psi
 Series 100
 Softgoods Material Reinforced PTFE
 Standards/Approvals ASME B1.20.1|OSHA 1910.147
 Temperature Rating -20 to 100 deg F
 Trim Material 316 Stainless Steel Stem/Reinforced PTFE Seat
 Type 2-Piece General Purpose

Features

▪ Robust engineering design
▪ Manual operation
▪ High quality
▪ Long service life
▪ Bubble tight shut-off
▪ Reinforced PTFE seal material
