Asco Valves & Instruments

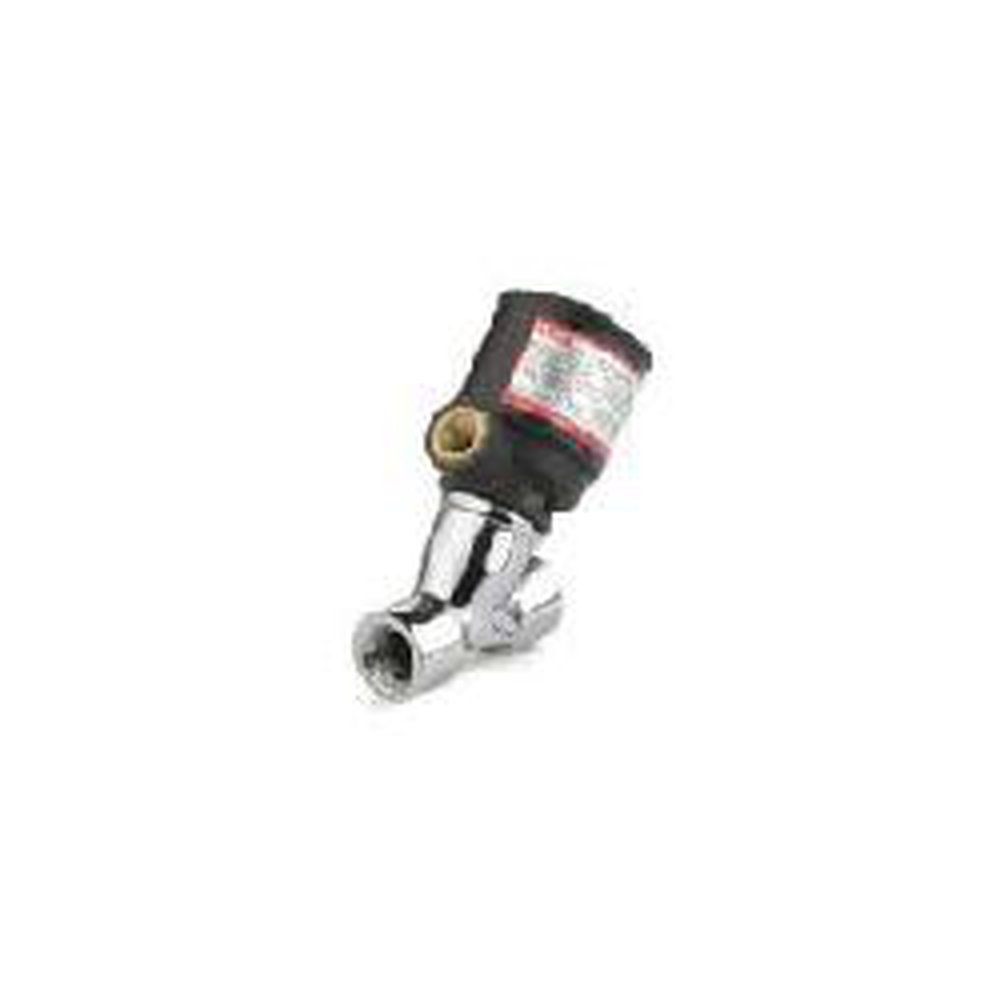

1/2 8290A792 SS 2- WAY NC CV 4.1 32MM HEAD ASCO VALVE

Mouse over image to zoom, click to enlarge

Description: Asco Multi-Purpose Valve, Angle Body, Series: 8290, 1/2 in Nominal, NPT, 15 to 140 deg F, 4.1 Cv On-Off, Media: Air/Hot Water/Steam, 1/2 in Orifice, Pilot Operated Actuator, 2.56 in Inlet to Outlet Length, 3.29 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, PTFE/FKM, 3.82 in W x 3.9 in H

Manufacturer PN: 8290A792

Forberg Smith PN: 3047628

Invoice Description:

1/2 8290A792 SS 2- WAY NC CV 4.1 32MM HEAD ASCO VALVE

UNSPSC: 39120000


SPEC SHEET

▸ See All in ASCO Angle Body Piston Valves


How Can We Make This Page Better?

Asco 8290A792 Angle Body Multi-Purpose Valve, 1/2 in Nominal, NPT End Style, 316L Stainless Steel Body

Price:  $441.83 / ea


Availability: 15 ea  i


Quantity  ea Add to Cart

Description

The 8290 Series consists of 2-way direct acting valves available in normally closed or normally open constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze or stainless steel. There are many optional features including visual/electrical position indicator or a stroke limiter.
Asco Multi-Purpose Valve, Angle Body, Series: 8290, 1/2 in Nominal, NPT, 15 to 140 deg F, 4.1 Cv On-Off, Media: Air/Hot Water/Steam, 1/2 in Orifice, Pilot Operated Actuator, 2.56 in Inlet to Outlet Length, 3.29 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, PTFE/FKM, 3.82 in W x 3.9 in H

Specifications

 Actuator Type Pilot Operated
 Application General Service (Air, Inert Gas, Water, Oil, Light Slurries) Applications
 Body Material 316L Stainless Steel
 Brand Name Asco
 Dimensions 3.82 in W x 3.9 in H
 End Style NPT
 Flow Rate 4.1 Cv On-Off
 Inlet to Outlet Length 2.56 in
 Manufacturer Part Number 8290A792
 Nominal Size 2-Jan in
 Orifice Size 2-Jan in
 Series 8290
 Softgoods Material PTFE/FKM
 Temperature Rating 15 to 140 deg F
 Top to Inlet Center 3.29 in
 Trim Material 316 Stainless Steel
 Type Angle Body

Features

▪ PTFE stuffing box seal, disc seal/FKM wiper seal

Resources

 Product Data Sheet
