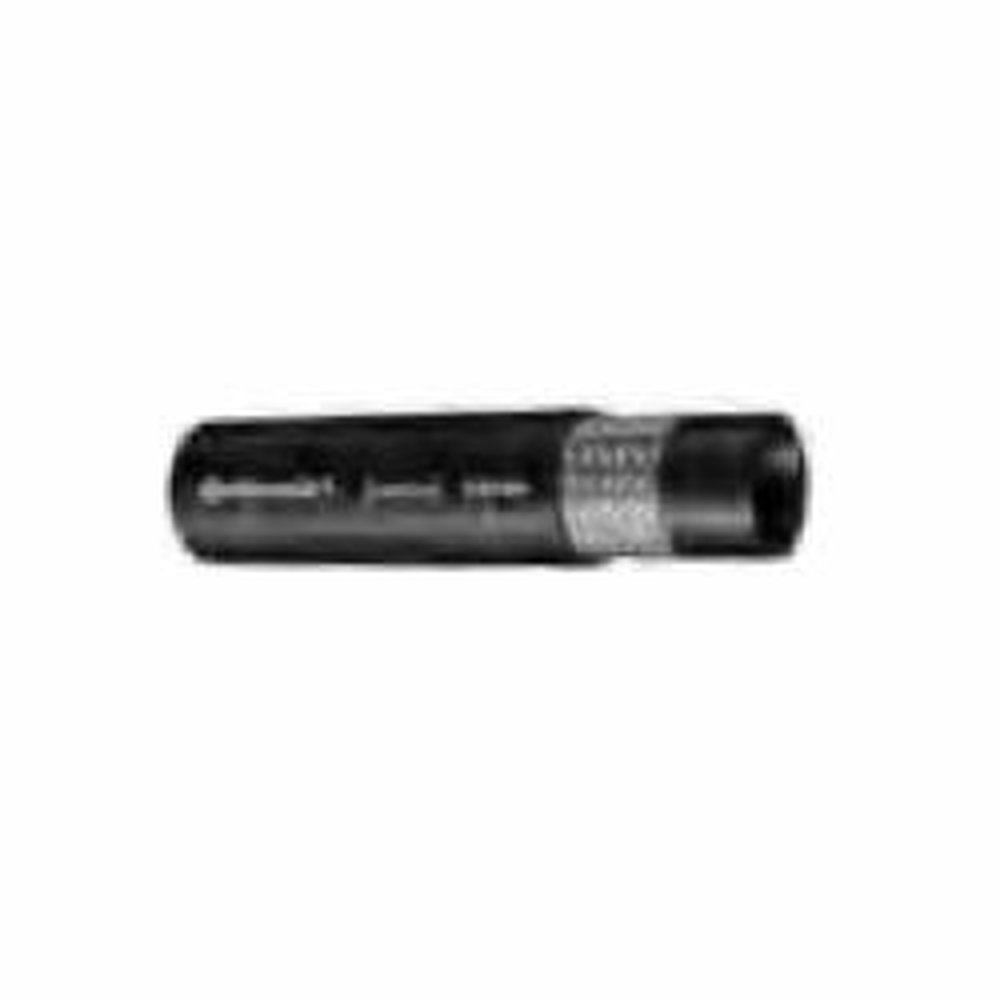

1/2 SR1SN-08 SAE 100R1AT /1SN BLK MED PSI HYD HOSE

Mouse over image to zoom, click to enlarge

Description: SR1SN is made for medium-pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.

Manufacturer PN: 20240219

Forberg Smith PN: 3049853

Invoice Description:

1/2 SR1SN-08 SAE 100R1AT /1SN BLK MED PSI HYD HOSE


How Can We Make This Page Better?

1/2 SR1SN-08 SAE 100R1AT /1SN BLK MED PSI HYD HOSE

Log In for Pricing and Availability




Description

SR1SN is made for medium-pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.

Specifications

 Bend Rad. In. 7.00
 Bend Rad. Mm. 178.00
 Brand Name Continental
 Cover Black CR (Polychloroprene)
 Hose ID 1/2 In
 ID Fraction 1/2
 ID In. 0.50
 ID Mm. 12.70
 Inner Tube NBR (Nitrile)
 Max WP (Mpa) 16.00
 Max WP (psi) 2320
 Meet Or Exceeds SAE 100R4AT, EN 853 1SN
 Min. Burst Pressure (Mpa) 64.00
 Min. Burst Pressure (psi) 9280
 OD In 0.81
 OD Mm 20.70
 PRODUCT # SR1SN-08
 Sub Brand SR1SN
 Temperature Range C (-40C to 100C)
 Temperature Range F (-40F to 212F)

Features

▪ SAE J1942 / U.S. Coast Guard
▪ 4:1 Safety Factor
