Dixon Valve & Coupling

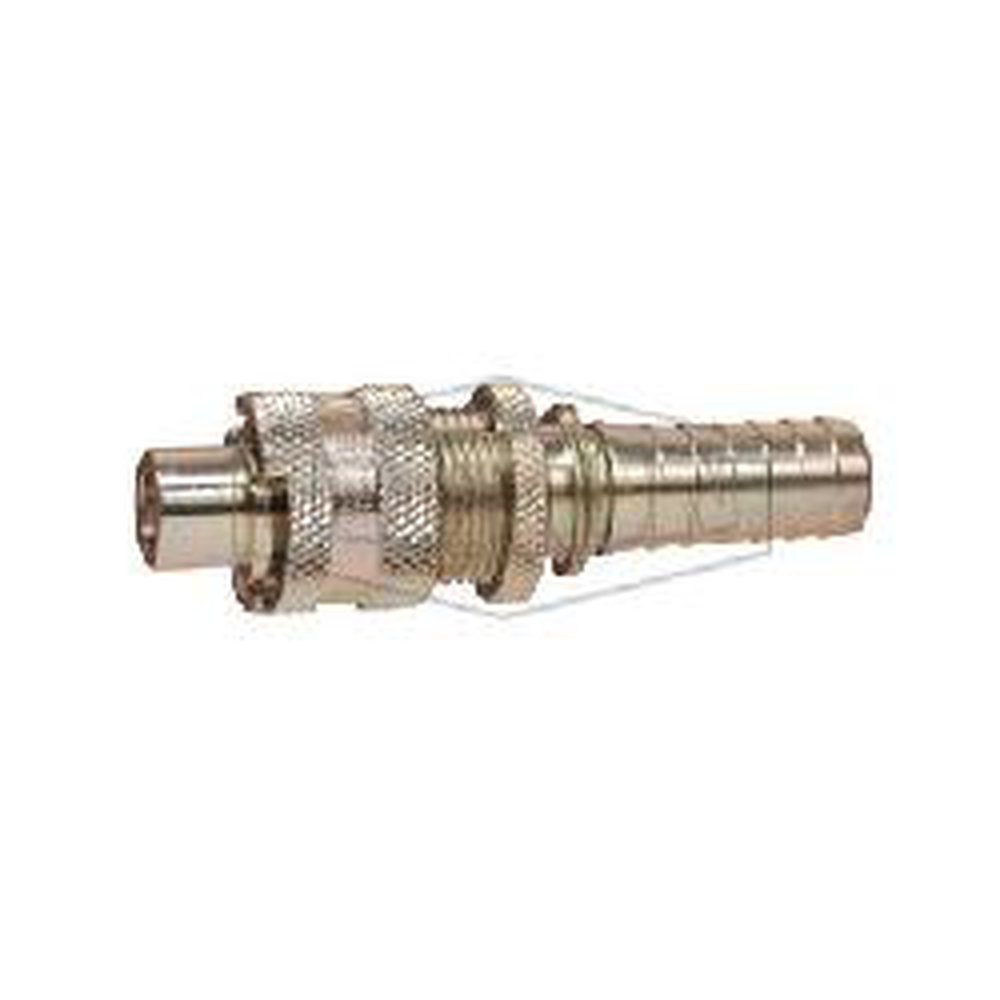

1/2X3/4 QM44 PLTD MXH DIX-LOCK COUPLING

Mouse over image to zoom, click to enlarge

Description: Dixon® Dix-Lock™ Quick Disconnect Coupler, Bowes Interchange, Series: N Series, 1/2 in Nominal, Quick Disconnect Coupler x Hose Barb End Style, 4.77 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 1.4 in OD, Domestic

Manufacturer PN: N4S6-LS

UPC:  69746447006

Forberg Smith PN: 3045174

Invoice Description:

1/2X3/4 QM44 PLTD MXH DIX-LOCK COUPLING

UNSPSC: 40172600


SPEC SHEET

How Can We Make This Page Better?

Dixon® Dix-Lock™ N4S6-LS N Series Bowes Interchange Quick Disconnect Coupler, 1/2 in Nominal, Quick Disconnect Coupler x Hose Barb, 500 psi Pressure, Steel, Domestic

Price:  $24.20 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Dix-Lock™ Quick Disconnect Coupler, Bowes Interchange, Series: N Series, 1/2 in Nominal, Quick Disconnect Coupler x Hose Barb End Style, 4.77 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 1.4 in OD, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 1.4 in OD
 Domestic or Import Domestic
 End Style Quick Disconnect Coupler x Hose Barb
 Length 4.77 in
 Manufacturer Part Number N4S6-LS
 Material Steel
 Nominal Size 2-Jan in
 Pressure Rating 500 psi
 Series N Series
 Standards/Approvals A-A-50431A|MIL-C-3486|RoHS Compliant
 Temperature Rating -40 to 250 deg F
 Type Bowes Interchange

Features

▪ Machined components are manufactured using solid bar stock
▪ Stainless steel retaining ring and spring maximize corrosion resistance and extend service life
▪ Steel componentry is plated using ROHS compliant trivalent chrome
▪ Coupling sleeve constructed of cast zinc steel
▪ Aluminum lock ring
