Dixon Valve & Coupling

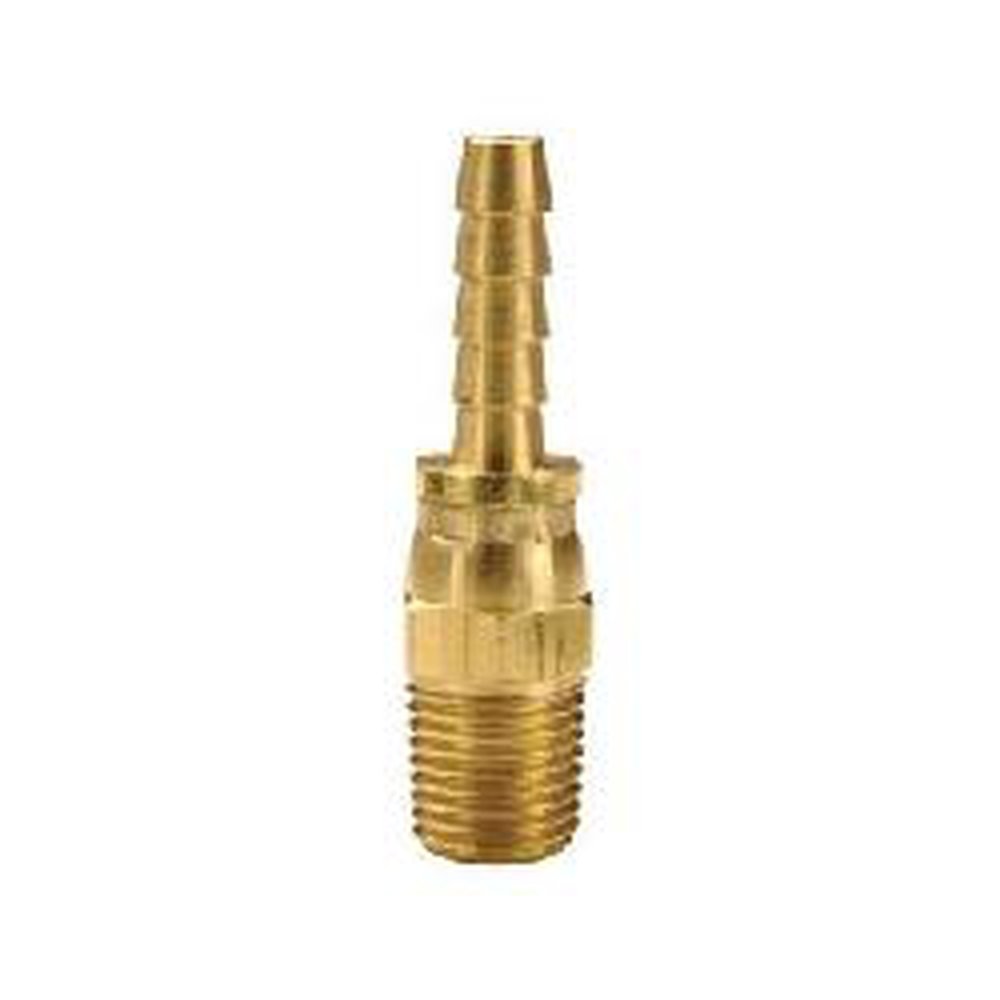

1/2X3/8 HXM BRS SWIVEL HOSE BARB 1030806C

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose Barb, Fitting/Connector Type: Adapter, 3/8 x 1/2 in Nominal, MNPT Swivel x Hose Barb End Style, 11/16 in Hex, 2-1/8 in Length, 4 Barb, 0.97 in Barb Length, Brass, Domestic

Manufacturer PN: 1030806C

UPC:  69746423122

Forberg Smith PN: 3806559

Invoice Description:

1/2X3/8 HXM BRS SWIVEL HOSE BARB 1030806C

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® 1030806C Hose Barb, 3/8 x 1/2 in, MNPT Swivel x Hose Barb, Brass, Domestic

Price:  $6.33 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Hose Barb, Fitting/Connector Type: Adapter, 3/8 x 1/2 in Nominal, MNPT Swivel x Hose Barb End Style, 11/16 in Hex, 2-1/8 in Length, 4 Barb, 0.97 in Barb Length, Brass, Domestic

Specifications

 Barb Length 0.97 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT Swivel x Hose Barb
 Fitting Type Adapter
 Hex Size 11/16 in
 Length 2-1/8 in
 Manufacturer Part Number 1030806C
 Material Brass
 Nominal Size 3/8 x 1/2 in
 Number Of Barb 4
 PART NUMBER KEYWORDS 1030806C
 Video Links

Features

▪ All standard hose fittings are intended for use with hose clamps or crimped ferrules
▪ Swivel for assembly convenience only, not for live swivel applications
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
