Dixon Valve & Coupling

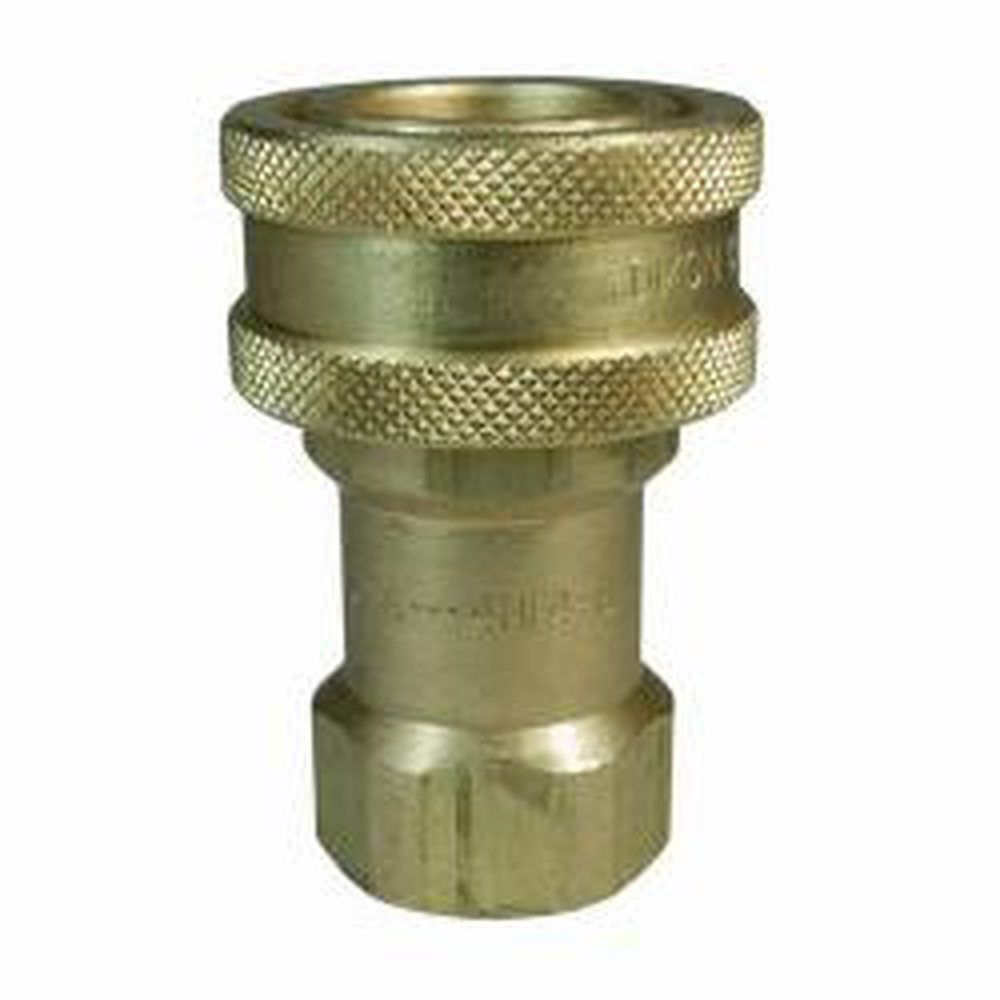

1/4 2HF2-B HYDRAULIC QUICK CONNECT COUPLER PLUG (DIXON)

Mouse over image to zoom, click to enlarge

Description: Dixon® Hydraulic Interchange Coupler, Series: H Series, 1/4 in x 1/4-18 Nominal, Quick-Connect x Female NPTF, 2.26 in Length, 3000 psi, -40 to 250 deg F, Brass Body/Buna-N Seal, Domestic

Manufacturer PN: 2HF2-B

UPC:  69746446279

Forberg Smith PN: 3741094

Invoice Description:

1/4 2HF2-B HYDRAULIC QUICK CONNECT COUPLER PLUG (DIXON)


How Can We Make This Page Better?

Dixon® 2HF2-B H Series Hydraulic Interchange Coupler, 1/4 in x 1/4-18 Nominal, Quick-Connect x Female NPTF, Brass Body/Buna-N Seal, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Hydraulic Interchange Coupler, Series: H Series, 1/4 in x 1/4-18 Nominal, Quick-Connect x Female NPTF, 2.26 in Length, 3000 psi, -40 to 250 deg F, Brass Body/Buna-N Seal, Domestic

Specifications

 Application Industrial
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Quick-Connect x Female NPTF
 Length 2.26 in
 Manufacturer Part Number 2HF2-B
 Material Brass Body/Buna-N Seal
 Nominal Size 1/4 in x 1/4-18
 PART NUMBER KEYWORDS 2HF2-B ; 2HF2B
 Pressure Rating 3000 psi
 Series H Series
 Temperature Rating -40 to 250 deg F

Features

▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ Steel coupler sleeves are hardened to resist deformation and maximize service life
▪ Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
▪ Has a redundant o-ring sealing system
▪ 15000 psi burst pressure
▪ 1.12 in OD max
▪ 7/8 in hex
▪ Poppet Shut Off Valve

Resources

 Catalog Page
