Gorilla

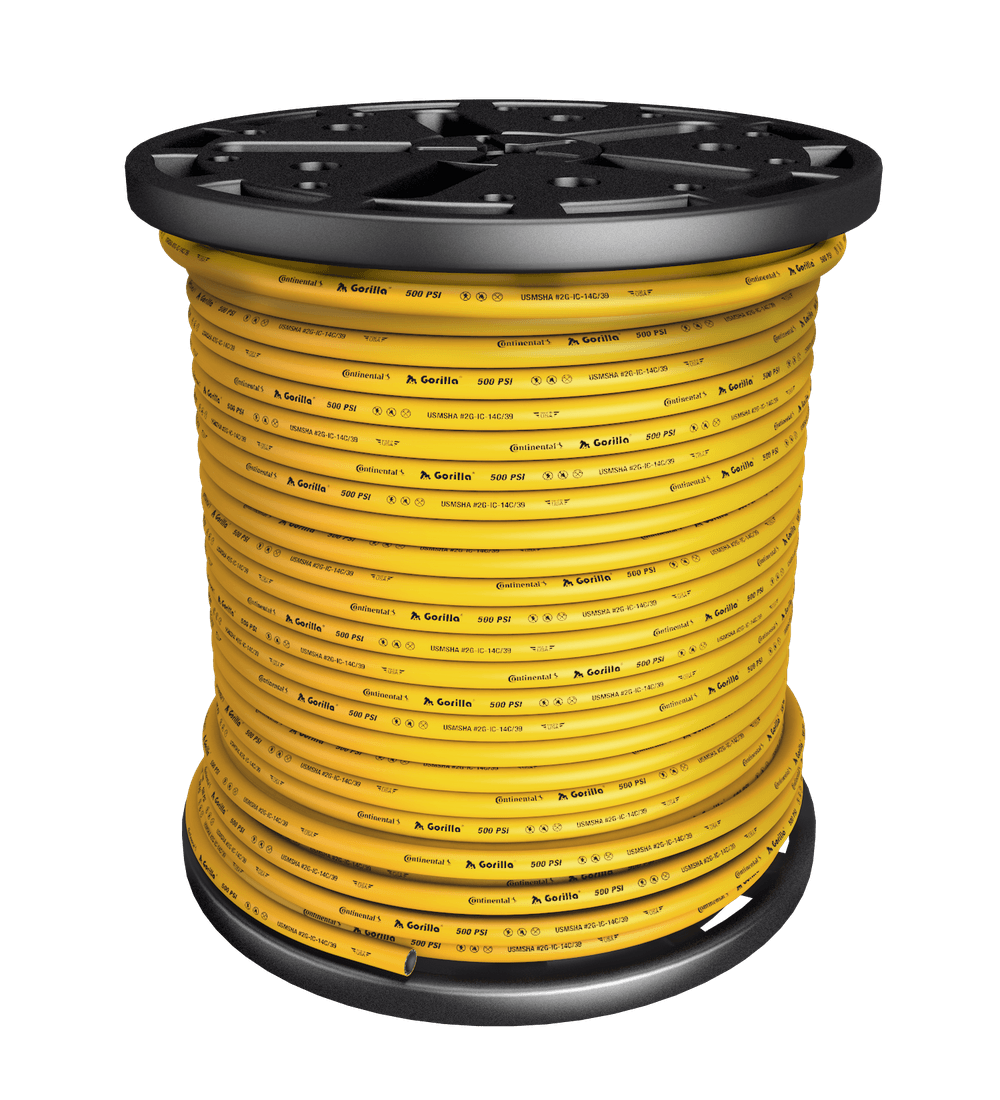

1/4 500 PSI YELLOW GORILLA AIR/WATER HOSE

Mouse over image to zoom, click to enlarge

Manufacturer PN: 20026239

Forberg Smith PN: 3050767

Invoice Description:

1/4 500 PSI YELLOW GORILLA AIR/WATER HOSE



Gorilla 20026239 GORILLA YELLOW 500WP 1/4"

Log In for Pricing and Availability




Description

Gorilla is a Premium Quality, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry and shipbuilding . All sizes are rated at 500 psi (3 .4 MPa) maximum working pressure. The premium Carbryn cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 Volts DC.

Specifications

 Bend Radius In 3
 Brand Name Continental
 Cover Color Yellow
 Cover Material Carbryn
 Design Factor 4:1
 Hose ID Fraction 1/4 in
 Hose ID In 0.26 in
 Maximum Temperature F 210
 Minimum Temperature F -20
 Reinforcement Spiral Flexten Synthetic Yarn
 Temperature Range -20F to 210F (-29C to 99C)
 Tube Material Nitrile (NBR)
 Working Pressure BAR 34.47
 Working Pressure PSI 500

Features

▪ Superior Abrasion Resistant Cover
▪ High Oil Resistance Tube & Cover
▪ MSHA Flame Resistant Cover
▪ Coupled Assembly Available
▪ Non-Conductive Tube & Cover
