ASCO
1/4 8223G25 BRS 2-WAY NC 120/60 1500 PSI H2O CV 1.5 ASCO VALVE

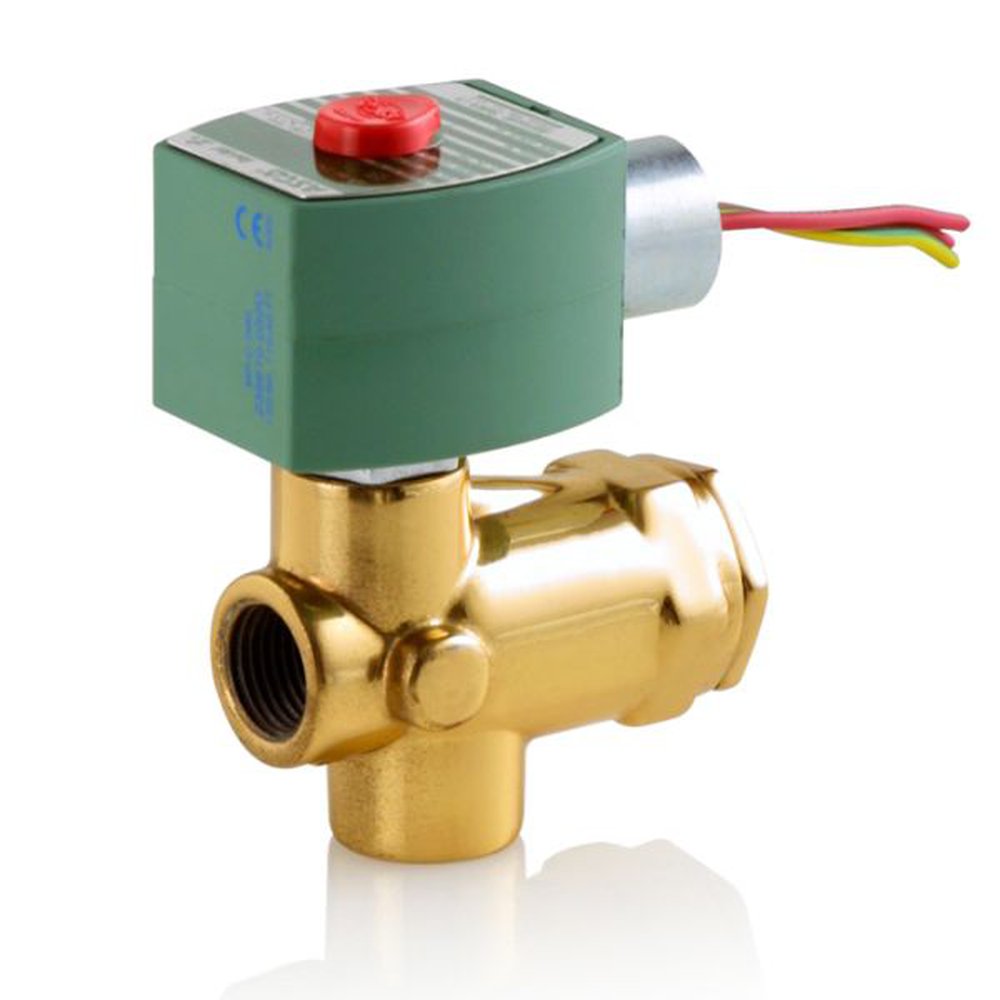

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8223 Solenoid Valve for High Pressure Applications. See Catalog Datasheet for more information.

Manufacturer PN: 20376

Forberg Smith PN: 3043687

Invoice Description:

1/4 8223G25 BRS 2-WAY NC 120/60 1500 PSI H2O CV 1.5 ASCO VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO 8223G025 120/60AC 2-Way Brass 1/4 In Solenoid Valve, Normally Closed, High Pressure

Price:  $501.00 / ea


Availability: 5 ea  i


Quantity  ea Add to Cart

Description

ASCO Series 8223 Solenoid Valve for High Pressure Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 32 to 125°F
 Body Design 2-Way
 Body Material Brass
 Brand Name ASCO
 Category Solenoids
 Coil Order Code 238610-132-D*
 Coil Watt Rating 17.1
 Connection Female NPT Threaded
 Construction Pilot Operated
 Cv Flow Factor 1.5
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 200°F
 Max ODP Air 1500 PSI
 Max ODP Light Oil 1500 PSI
 Max ODP Water 1500 PSI
 Minimum OPD 10 PSI
 Operation Normally Closed
 Rebuild Kit Order Code 302314
 Seal Material Nylon
 Series 8223
 Size 1/4 in
 Solenoid Enclosure Watertight
 Type Solenoid Valve
 Voltage 120/60,110/50 AC

Resources

 Product Data Sheet
