ASCO
1/4 EF8320G184 BRS 3-WAY NC 120/60 110/50 150PSI H2O CV .12 XP 1/4 X 3/32 NC ASCO VALVE---

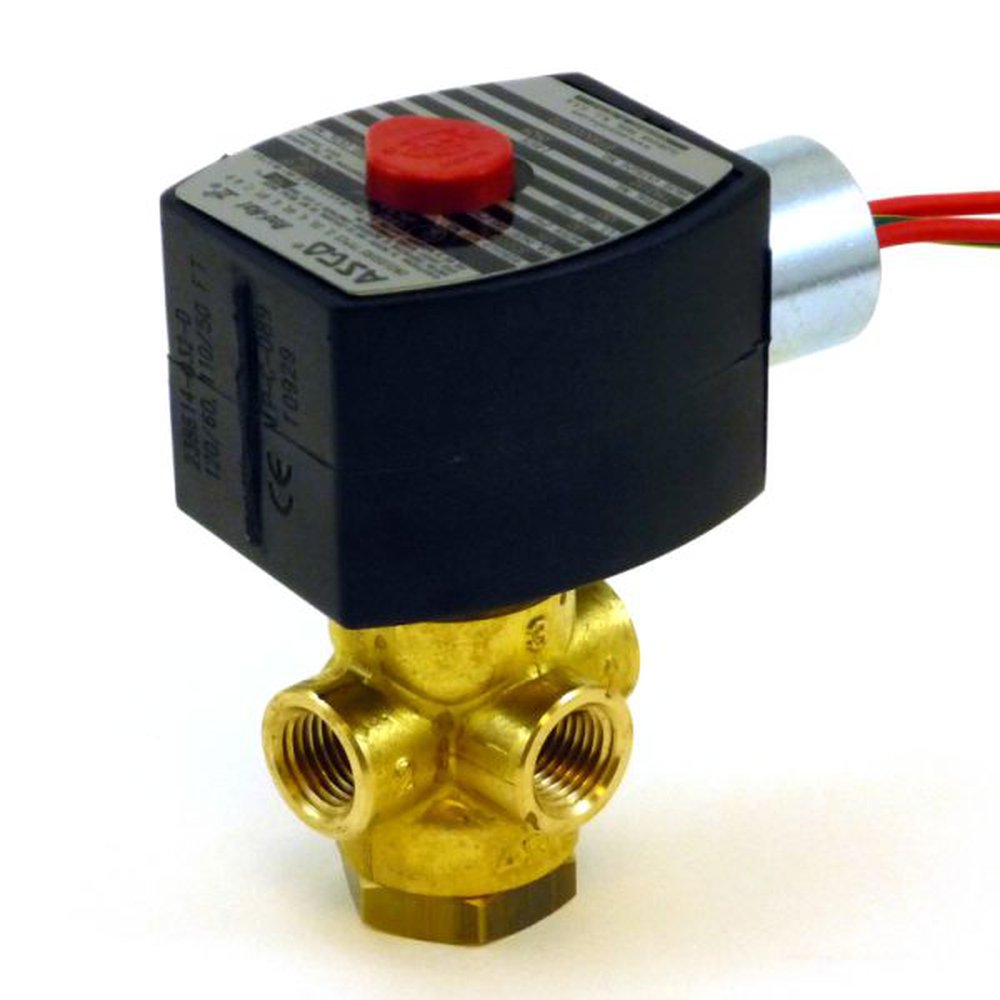

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8320 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Manufacturer PN: 20753

Forberg Smith PN: 3048804

Invoice Description:

1/4 EF8320G184 BRS 3-WAY NC 120/60 110/50 150PSI H2O CV .12 XP 1/4 X 3/32 NC ASCO VALVE---

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO EF8320G184 120/60AC 3-Way Brass 1/4 In Solenoid Valve, Normally Closed, General Service

Price:  $292.00 / ea


Availability: 10 ea  i


Quantity  ea Add to Cart

Description

ASCO Series 8320 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 32 to 125°F
 Body Design 3-Way
 Body Material Brass
 Brand Name ASCO
 Category Solenoids
 Coil Class FT
 Coil Order Code 238614-032-D*
 Coil Watt Rating 10.1
 Connection Female NPT Threaded
 Construction Direct Acting
 Cv Flow Factor 0.12
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 200°F
 Max ODP Air 150 PSI
 Max ODP Light Oil 150 PSI
 Max ODP Water 150 PSI
 Minimum OPD 0 PSI
 Operation Normally Closed
 Rebuild Kit Order Code 302142
 Seal Material NBR
 Series 8320
 Size 1/4 in
 Solenoid Enclosure Explosionproof and Watertight
 Type Solenoid Valve
 Voltage 120/60,110/50 AC

Resources

 Product Data Sheet
