ASCO

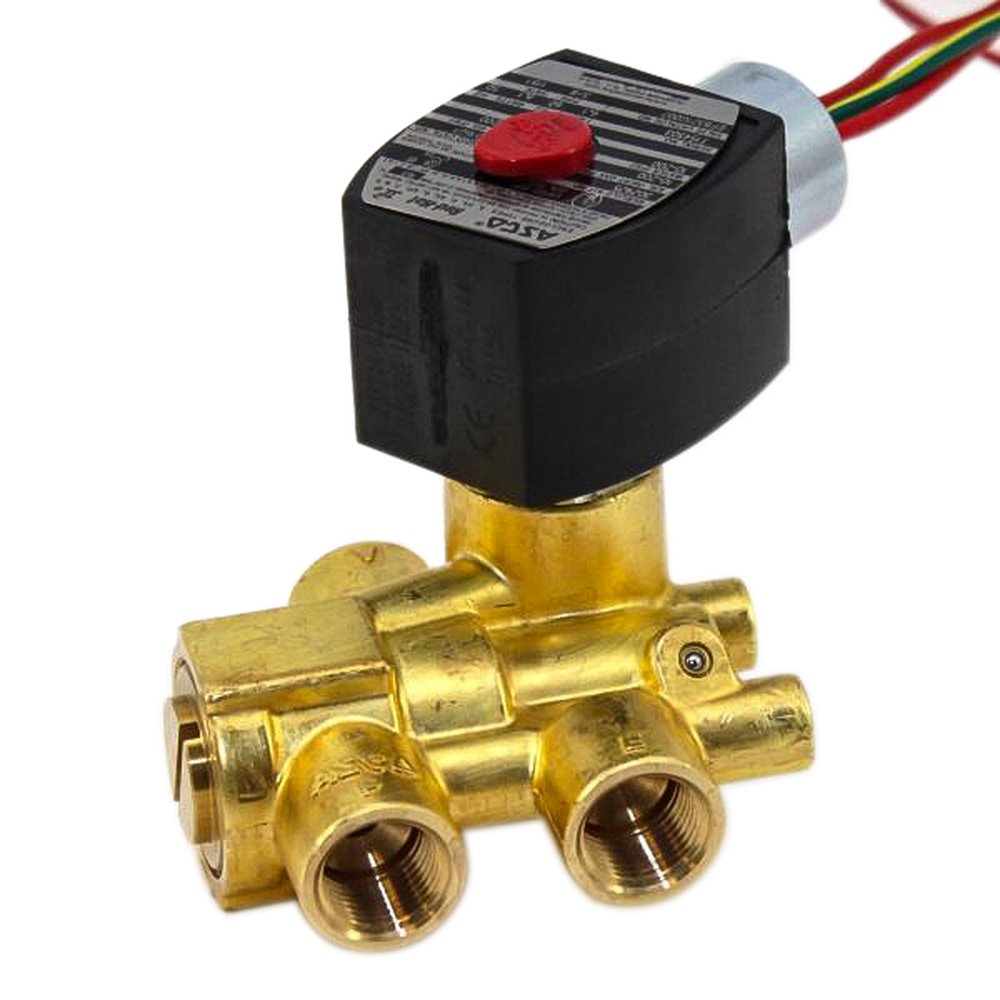

1/4 EF8321G1 BRS 3-WAY NC 24 VDC 200PSI H20 XP ASCO VALVE

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8321 Solenoid Valve for Quick Exhaust Applications. See Catalog Datasheet for more information.

Manufacturer PN: 20783

Forberg Smith PN: 3044614

Invoice Description:

1/4 EF8321G1 BRS 3-WAY NC 24 VDC 200PSI H20 XP ASCO VALVE


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO EF8321G001 24DC 3-Way Brass 1/4 In Solenoid Valve, Normally Closed, Quick Exhaust

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

ASCO Series 8321 Solenoid Valve for Quick Exhaust Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 32 to 104°F
 Body Design 3-Way
 Body Material Brass
 Brand Name ASCO
 Category Solenoids
 Coil Order Code 238314-006-D*
 Coil Watt Rating 10.6
 Connection Female NPT Threaded
 Construction Pilot Operated
 Cv Flow Factor 0.8
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 120°F
 Max ODP Air 200 PSI
 Max ODP Light Oil 200 PSI
 Max ODP Water 200 PSI
 Minimum OPD 10 PSI
 Operation Normally Closed
 Rebuild Kit Order Code 302929
 Seal Material NBR
 Series 8321
 Size 1/4 in
 Solenoid Enclosure Explosionproof and Watertight
 Type Solenoid Valve
 Voltage 24 DC

Resources

 Product Data Sheet
