Emerson Electric

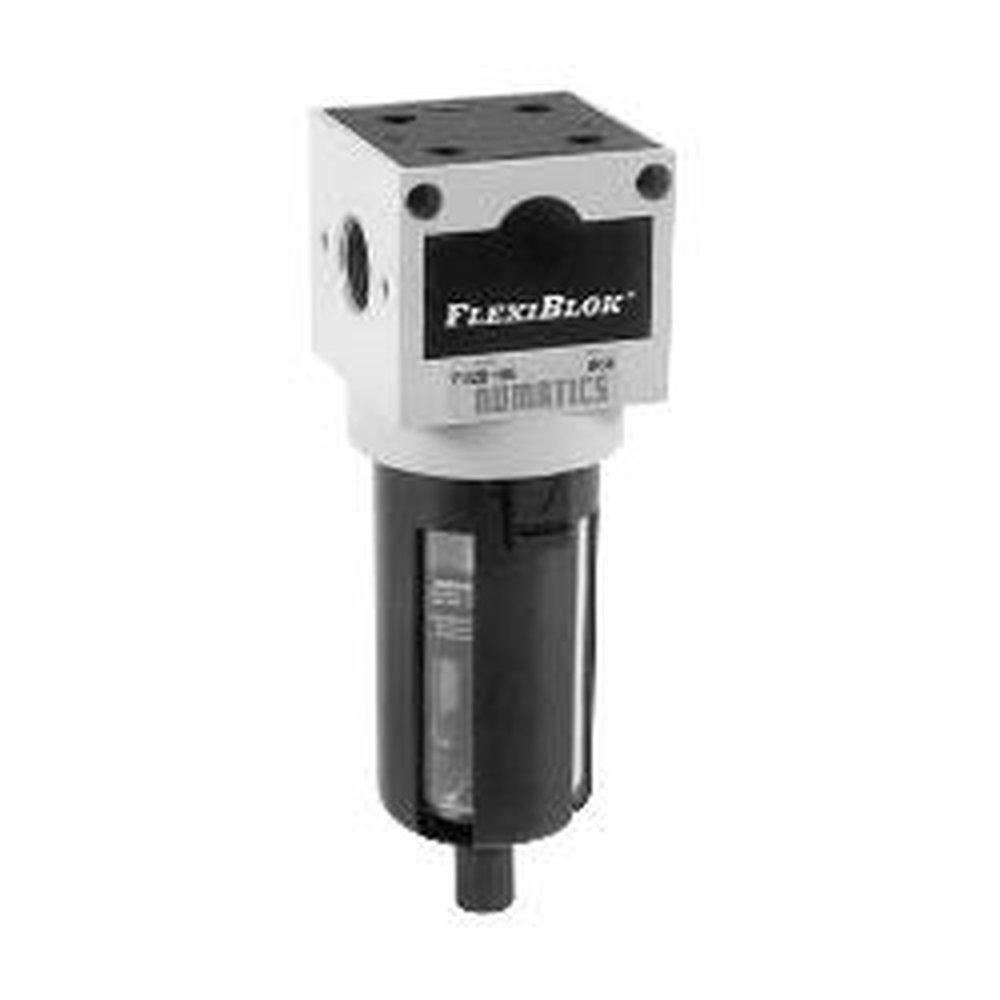

1/4 F22B-02BM NUMATICS FILTER 5 MICRON 3.8 OZ BOWL W/ DRAIN, METAL BOWL AND SIGHT GLASS

Mouse over image to zoom, click to enlarge

Description: Numatics® FlexiBlok® Particulate Filter, Series: FRL F22B, 1/4 in FNPT, 65 scfm, 5 micron, 200 psi, 40 to 120 deg F, Metal with Sight Glass Bowl, 7.41 in Overall Length, Aluminum

Manufacturer PN: F22B-02BM

Forberg Smith PN: 3045107

Invoice Description:

1/4 F22B-02BM NUMATICS FILTER 5 MICRON 3.8 OZ BOWL W/ DRAIN, METAL BOWL AND SIGHT GLASS


How Can We Make This Page Better?

Numatics® FlexiBlok® F22B-02BM FRL F22B Particulate Filter With Flexible Drain, 1/4 in FNPT Port, 200 psi Pressure Range, 65 scfm Flow Rate, 5 micron, 40 to 120 deg F, Metal with Sight Glass Bowl

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Numatics Modular Flexiblok FRL products are available in four sizes. Our 14, 22, 32 and 42 series range in port size from 1/8 to 1 inch with flow rates from 30 to 300 scfm. Our 22, 32 and 42 series are cast from high strength lightweight aluminum making them perfect for applications such as robotic arms where total weight is at a premium. The Flexiblok advantage offers a square head design with integral mounting holes simplifying mounting by eliminating costly brackets. Direct connect modularity mounts one component to the next with a single O-Ring seal and two button head screws eliminating adapters and therefore cost and potential leak points.
Numatics® FlexiBlok® Particulate Filter, Series: FRL F22B, 1/4 in FNPT, 65 scfm, 5 micron, 200 psi, 40 to 120 deg F, Metal with Sight Glass Bowl, 7.41 in Overall Length, Aluminum

Specifications

 Application Air Ride Suspension Systems, Biofuels, Commercial Kitchen Equipment, Automotive and Tire, Chemical, Food and Beverage, Medical and Life Science, Oil and Gas and Packaging
 Bowl Material Metal with Sight Glass
 Brand Name Numatics®
 Filter Rating 40 micron
 Flow Rate 635 scfm
 Manufacturer Part Number F22B-02BM
 Material Aluminum
 Overall Length 6.57 in
 PART NUMBER KEYWORDS F22B-02BM ; F22B02BM
 Port Size 1/4 in
 Pressure Rating 150 psi
 Series FRL F22B
 Standards/Approvals ANSI Specified
 Temperature Rating 40 to 120 deg F
 Video Links

Features

▪ 5 micron sintered elements standard
▪ Can be installed as modular or individual unit
▪ Includes screws and o-rings for modular connection
▪ Modular and easy to assemble
