Dixon Valve & Coupling

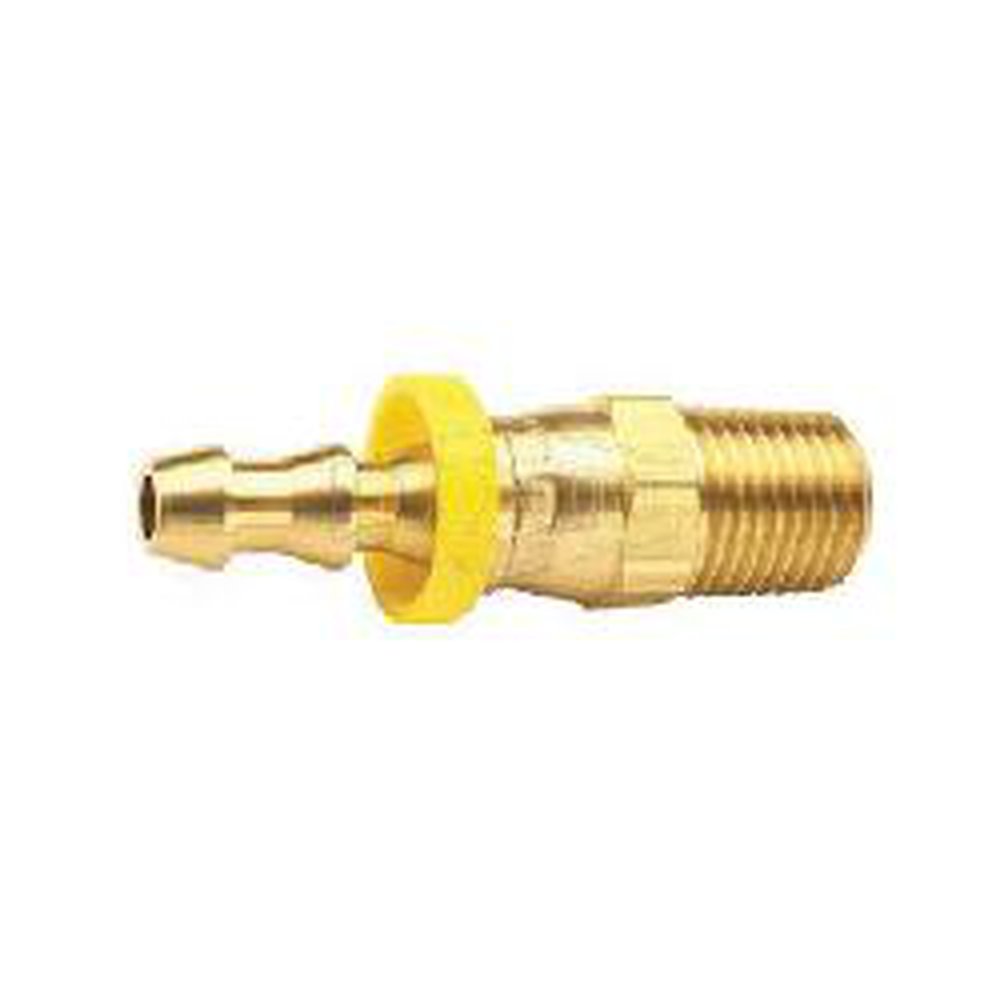

1/4 HOSE X 1/4 MPT SWIVEL ADAPTER 271-0404

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, 9/16 in Hex, 2.02 in Length, 2 Barb, 3/4 in Barb Length, 120 psi Pressure, -40 to 150 deg F, Brass, Domestic

Manufacturer PN: 2710404C

UPC:  69746423539

Forberg Smith PN: 3082041

Invoice Description:

1/4 HOSE X 1/4 MPT SWIVEL ADAPTER 271-0404


SPEC SHEET

How Can We Make This Page Better?

Dixon® 2710404C Hose Barb, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Hose Barb, Fitting/Connector Type: Adapter, 1/4-18 x 1/4 in Nominal, MNPT x Hose Barb End Style, 9/16 in Hex, 2.02 in Length, 2 Barb, 3/4 in Barb Length, 120 psi Pressure, -40 to 150 deg F, Brass, Domestic

Specifications

 Application For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
 Barb Length 3/4 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT x Hose Barb
 Fitting Type Adapter
 Hex Size 9/16 in
 Length 2.02 in
 Manufacturer Part Number 2710404C
 Material Brass
 Nominal Size 1/4-18 x 1/4 in
 Number Of Barb 2
 PART NUMBER KEYWORDS 2710404C
 Pressure Rating 120 psi
 Standards/Approvals SAE J476/J512/J514/J516|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
 Temperature Rating -40 to 150 deg F

Features

▪ Push-on fittings are intended for use with lok-on (push-on style) hose
▪ No hose clamp or ferrule needed
▪ Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
