ASCO

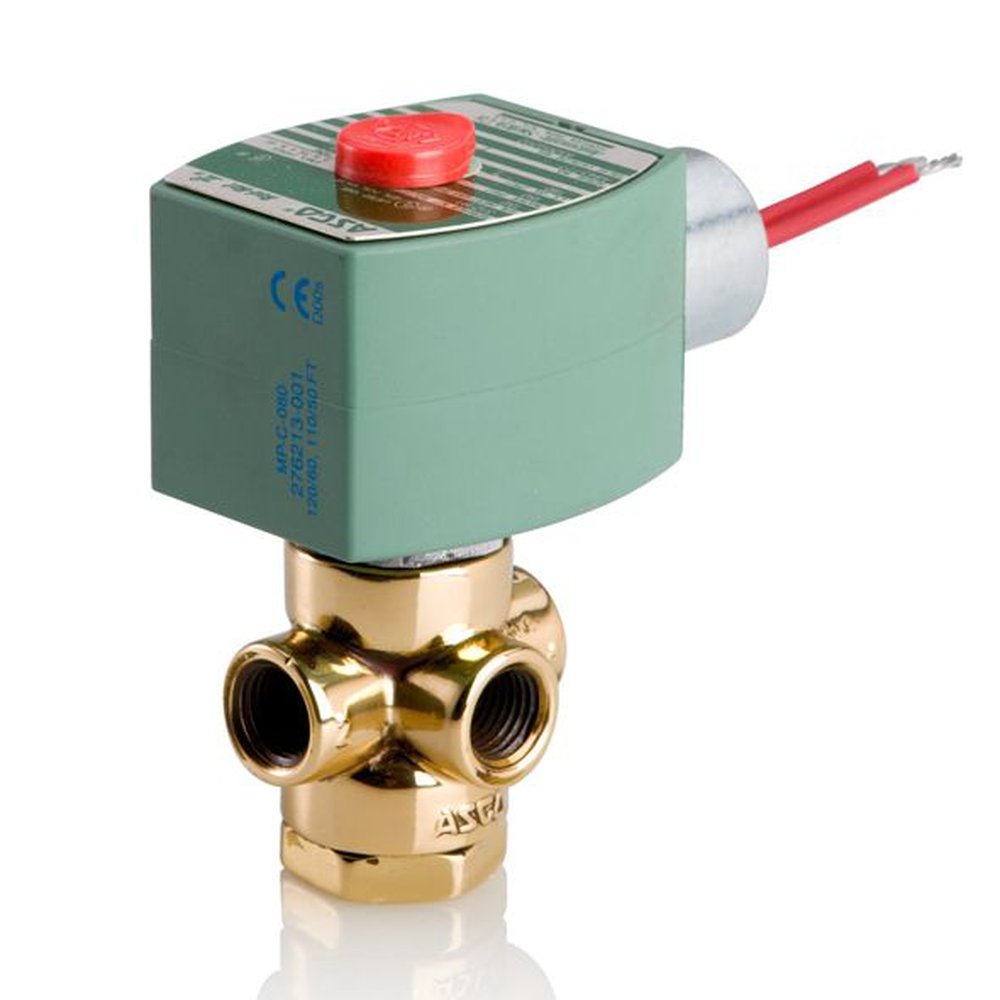

1/8 8320G1 BRS 3-WAY U 24 VDC 65 PSI H2O CV 0.09 ASCO VALVE

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8320 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Manufacturer PN: 20669

Forberg Smith PN: 3048693

Invoice Description:

1/8 8320G1 BRS 3-WAY U 24 VDC 65 PSI H2O CV 0.09 ASCO VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO 8320G001 24DC 3-Way Brass 1/8 In Solenoid Valve, Universal, General Service

Price:  $158.00 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

ASCO Series 8320 Solenoid Valve for General Service Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 32 to 104°F
 Body Design 3-Way
 Body Material Brass
 Brand Name ASCO
 Category Solenoids
 Coil Order Code 238210-006-D*
 Coil Watt Rating 10.6
 Connection Female NPT Threaded
 Construction Direct Acting
 Cv Flow Factor 0.08
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 120°F
 Max ODP Air 65 PSI
 Max ODP Light Oil 65 PSI
 Max ODP Water 65 PSI
 Minimum OPD 0 PSI
 Operation Universal
 Rebuild Kit Order Code 302191
 Seal Material NBR
 Series 8320
 Size 1/8 in
 Solenoid Enclosure Watertight
 Type Solenoid Valve
 Voltage 24 DC

Resources

 Product Data Sheet
