Dixon Valve & Coupling

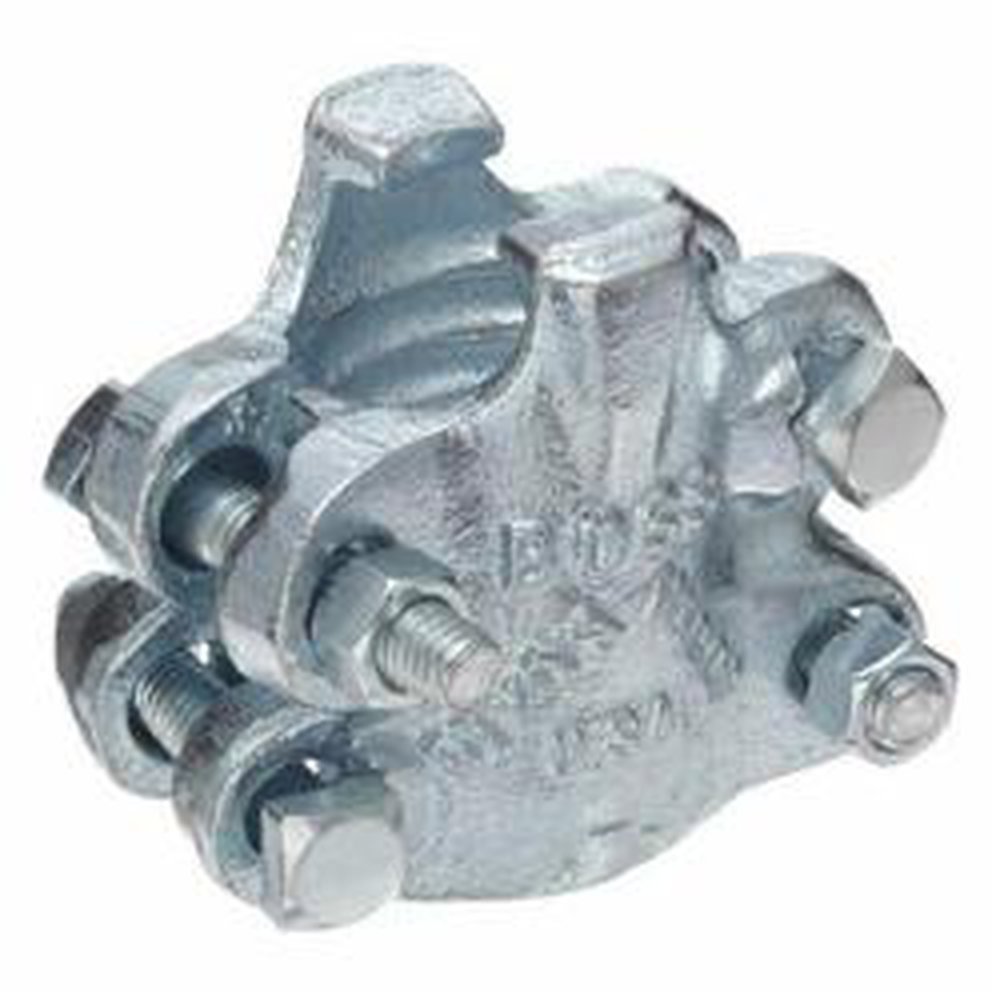

1 B14 BOSS COUPLING 1-11/16X1-15/16 HP-13

Mouse over image to zoom, click to enlarge

Description: Dixon® The Right Connection™ Hose Clamp, 4-Bolt, Series: Boss™, 1 in Inside Dia, 1-44/64 to 1-60/64 in Outside Dia, 21 ft-lb, 450 deg F, Malleable Iron Band, Zinc Plated, Domestic

Manufacturer PN: B14

UPC:  69746425165

Forberg Smith PN: 3044177

Invoice Description:

1 B14 BOSS COUPLING 1-11/16X1-15/16 HP-13

UNSPSC: 31162906


SPEC SHEET

How Can We Make This Page Better?

Dixon® The Right Connection™ B14 Boss™ 4-Bolt Hose Clamp, 1 in ID x 1-44/64 to 1-60/64 in OD, Malleable Iron Band, Domestic

Price:  $16.56 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® The Right Connection™ Hose Clamp, 4-Bolt, Series: Boss™, 1 in Inside Dia, 1-44/64 to 1-60/64 in Outside Dia, 21 ft-lb, 450 deg F, Malleable Iron Band, Zinc Plated, Domestic

Specifications

 Band Material Malleable Iron
 Brand Name Dixon®
 Domestic or Import Domestic
 Finish Zinc Plated
 Inside Diameter 1 in
 Manufacturer Part Number B14
 Series Boss™
 Temperature Rating 450 deg F
 Torque Rating 21 ft-lb
 Type 4-Bolt

Features

▪ Bolts in boss clamps are designed to bend as they are tightened
▪ This allows the clamp to conform to the hose outside Dia
▪ Always tighten bolts to their specified torque value
▪ Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
▪ Boss clamps are for single use only, once removed they are to be discarded
▪ 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
▪ Nut and bolt locking

Resources

 Catalog Page
 Product Data Sheet
