Dixon Valve & Coupling

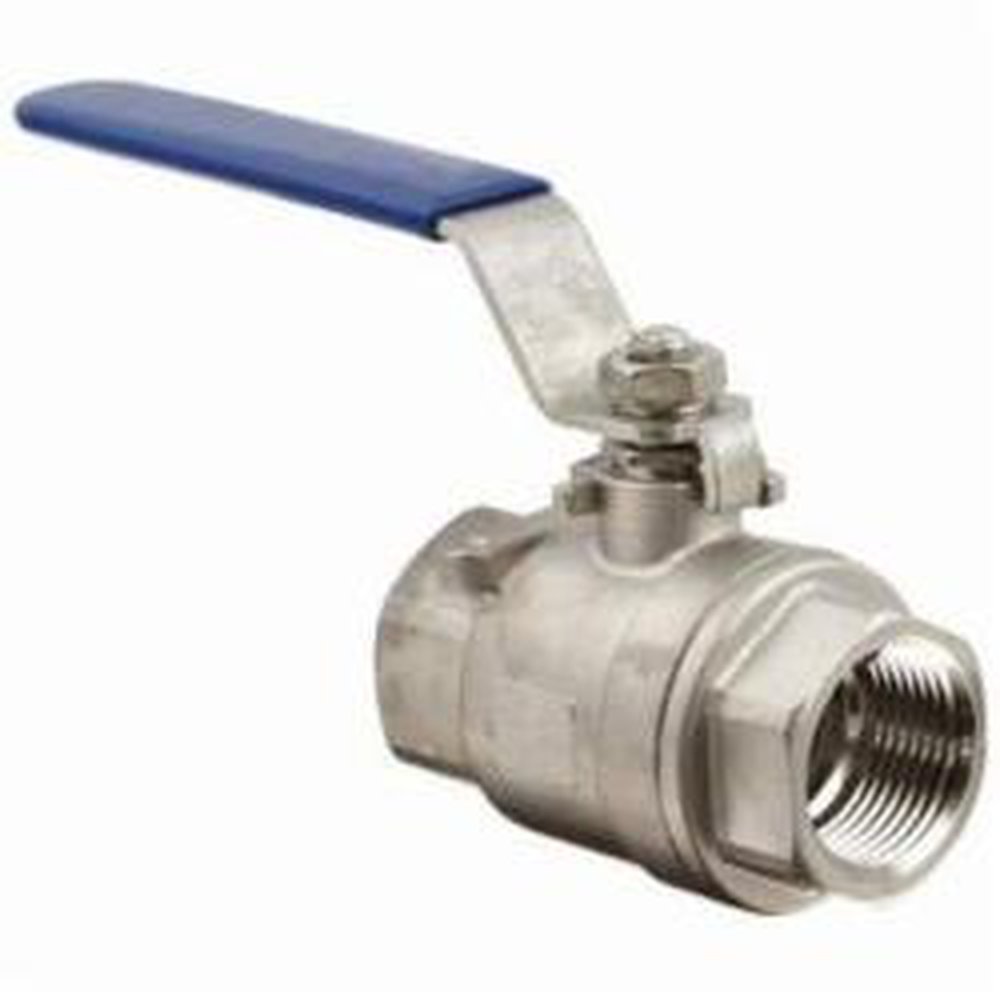

1 DIXON SSBV100 DIXON SS THD BALL VALVE

Mouse over image to zoom, click to enlarge

Description: Dixon® Ball Valve, Series: SSBV, 1 in Nominal, FNPT End Style, 1000 psi WOG, 100 psi WSP Pressure, -20 to 356 deg F, Full Port, Media: Gas, Oil, Steam and Water, Manual Actuator, 316 Stainless Steel Ball, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, RPTFE Seat/Joint Gasket Softgoods

Manufacturer PN: SSBV100

UPC:  69746436398

Forberg Smith PN: 4094851

Invoice Description:

1 DIXON SSBV100 DIXON SS THD BALL VALVE


SPEC SHEET

How Can We Make This Page Better?

Dixon® SSBV100 Ball Valve, 1 in Nominal, FNPT End Style, 316 Stainless Steel Body, Full Port, RPTFE Seat/Joint Gasket Softgoods

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Ball Valve, Series: SSBV, 1 in Nominal, FNPT End Style, 1000 psi WOG, 100 psi WSP Pressure, -20 to 356 deg F, Full Port, Media: Gas, Oil, Steam and Water, Manual Actuator, 316 Stainless Steel Ball, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, RPTFE Seat/Joint Gasket Softgoods

Specifications

 Actuator Type Manual
 Body Material 316 Stainless Steel
 Brand Name Dixon®
 End Style FNPT
 Manufacturer Part Number SSBV100
 Nominal Size 1 in
 PART NUMBER KEYWORDS SSBV100
 Pressure Rating 1000 psi WOG, 100 psi WSP
 Series SSBV
 Softgoods Material RPTFE Seat/Joint Gasket
 Temperature Rating -20 to 356 deg F
 Trim Material 316 Stainless Steel Stem

Features

▪ Blow out proof stem
▪ Plastic cover on handle
▪ RPTFE seat and joint gasket
