Parker Hannifin

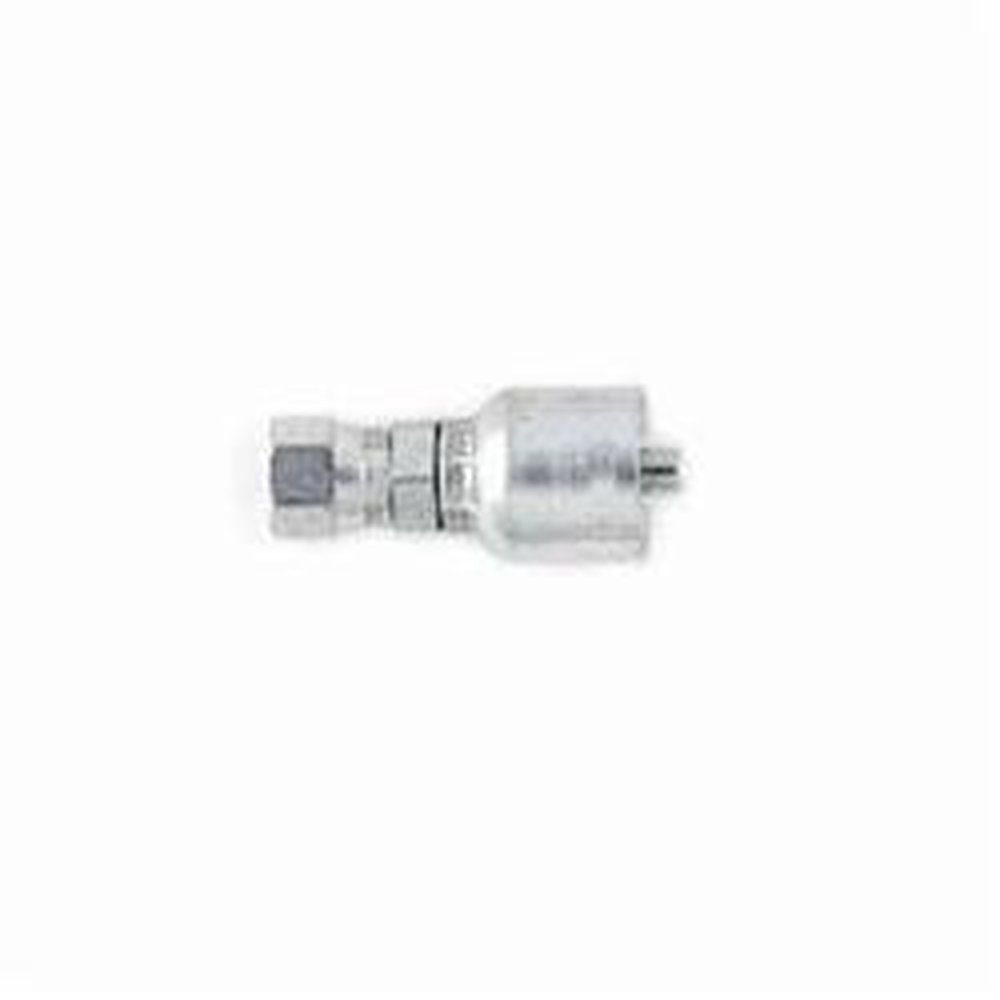

10643-6-6 PARKRIM 3/8 F-JIC SWIVEL X HOSE

Mouse over image to zoom, click to enlarge

  • 10643-6-6 PARKRIM 3/8 F-JIC SWIVEL X HOSE
  • 10643-6-6 PARKRIM 3/8 F-JIC SWIVEL X HOSE

Description: Parker® Hydraulic Hose Fitting, Crimp Style Straight, Series: 43 Series, 1/2 in Hose, 9/16-18, 37 deg Female JIC Swivel, 11/16 x 13/16 in Hex, 2.51 in Length, 1-1/4 in Cutoff Allowance, Steel

Manufacturer PN: 10643-6-8

Forberg Smith PN: 4441657

Invoice Description:

10643-6-6 PARKRIM 3/8 F-JIC SWIVEL X HOSE

UNSPSC: 39120000


How Can We Make This Page Better?

Parker® 10643-6-8 43 Series Crimp Style Straight Hydraulic Hose Fitting, 1/2 in Hose, 9/16-18 Connection, 37 deg Female JIC Swivel End Style, 1-1/4 in Cutoff Allowance, Steel

Price:  $53.51 / ea

Note: Lead times are estimates only


Availability: 5-8 days


Quantity  ea Add to Cart

Description

Parker® 43 series fittings are cost effective, permanent, bite the wire style fittings made for easy and quick assembly using our family of parkrimp crimpers. The fitting series when coupled with Parker® no-skive hose provides convenience and shorter assembly time. The 43 series fittings have chromium-6 free plating and are compatible with high temperature, low temperature, hydraulic industry standard, constant working pressure, phosphate ester, suction and return hoses. The 43 series fittings are available from 1/4 to 2 in in a wide variety of end configurations.
Parker® Hydraulic Hose Fitting, Crimp Style Straight, Series: 43 Series, 1/2 in Hose, 9/16-18, 37 deg Female JIC Swivel, 11/16 x 13/16 in Hex, 2.51 in Length, 1-1/4 in Cutoff Allowance, Steel

Specifications

 Application Transportation, RV and Bus, Military, Construction, Agriculture, Grounds and Building Maintenance, Forestry, Railroad, Utility Equipment, Personnel Lift Equipment, Machine Tool, Oil Field Service, Waste and Refuse, Material Handling, Marine, Paving and Road Maintenance, Ground Support Equipment, Industrial and Mining
 Brand Name Parker®
 Connection Size 9/16-18
 Cutoff Allowance 1-1/4 in
 End Style 37 deg Female JIC Swivel
 Hex Size 11/16 x 13/16 in
 Hose Size 1/2 in
 Length 2.51 in
 Manufacturer Part Number 10643-6-8
 Material Steel
 Series 43 Series
 Type Crimp Style Straight

Features

▪ Easy push-on force
▪ Imperial hex
▪ Wide range of end configurations
▪ One-piece reduces complexity and leakage path
▪ No-skive technology offers easy, efficient and safe production processes
▪ For petroleum base hydraulic fluids, lubricating oils and phosphate ester base hydraulic fluids
▪ Compatible with 301LT, 302, 304, 351TC/ST, 422, 424, 426, 431, 436, 451TC/ST, 471TC/ST, 472TC, 482TC/ST, 722ST, 787TC/ST, 797TC/ST, 881 hoses
