Dixon Valve & Coupling

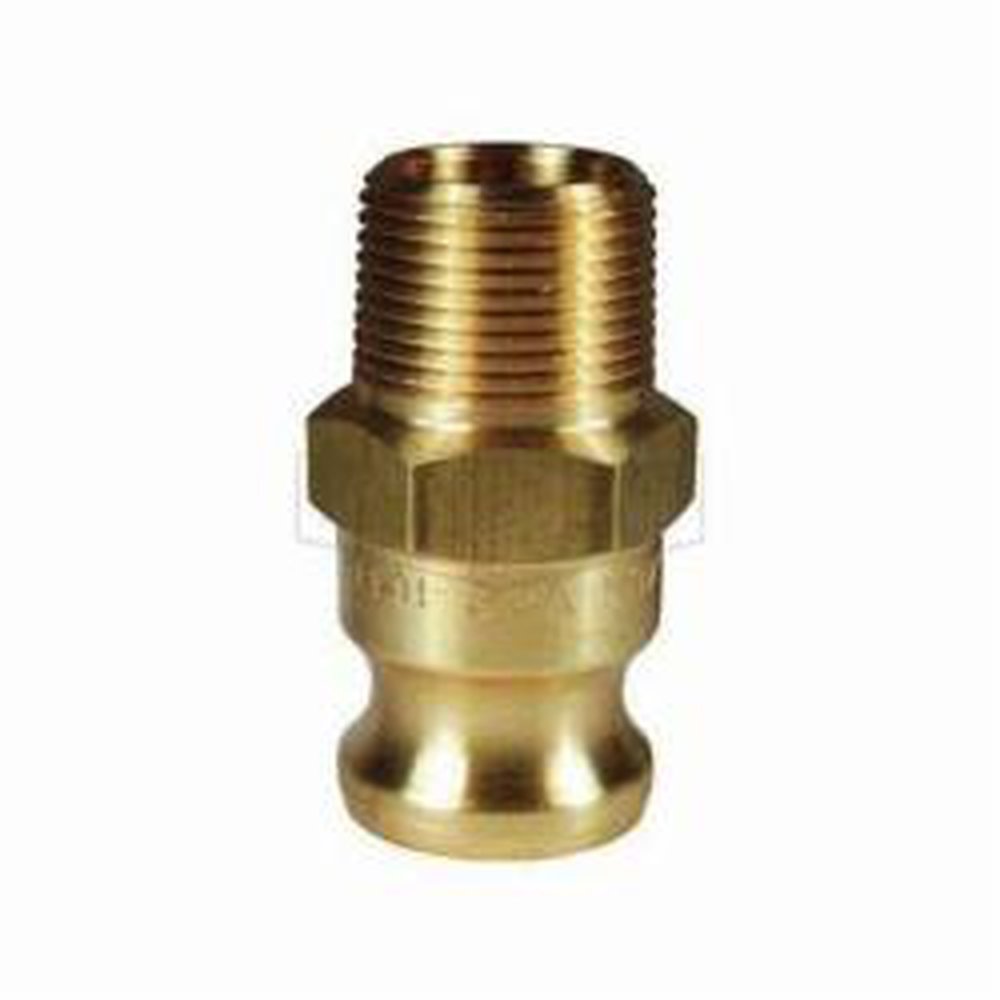

125-F-BR 1-1/4 DIXON BRASS MALE NPT X MALE ADTP.

Mouse over image to zoom, click to enlarge

  • 125-F-BR 1-1/4 DIXON BRASS MALE NPT X MALE ADTP.
  • 125-F-BR 1-1/4 DIXON BRASS MALE NPT X MALE ADTP.

Description: Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Adapter, 1-1/4 in Nominal, Male Adapter x MNPT, 3-1/4 in Length, 250 psi, Brass, Domestic

Manufacturer PN: 125-F-BR

UPC:  69746403902

Forberg Smith PN: 3425394

Invoice Description:

125-F-BR 1-1/4 DIXON BRASS MALE NPT X MALE ADTP.


SPEC SHEET

How Can We Make This Page Better?

Dixon® 125-F-BR Boss-Lock™ Type F Cam and Groove Adapter, 1-1/4 in, Male Adapter x MNPT, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Adapter, 1-1/4 in Nominal, Male Adapter x MNPT, 3-1/4 in Length, 250 psi, Brass, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Male Adapter x MNPT
 Fitting Type Adapter
 Length 3-1/4 in
 Manufacturer Part Number 125-F-BR
 Material Brass
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 125-F-BR ; 125FBR
 Pressure Rating 250 psi
 Series Boss-Lock™
 Type Type F
 Video Links

Features

▪ Pressure rating is based on the seal of the mating part
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
