Dixon Valve & Coupling

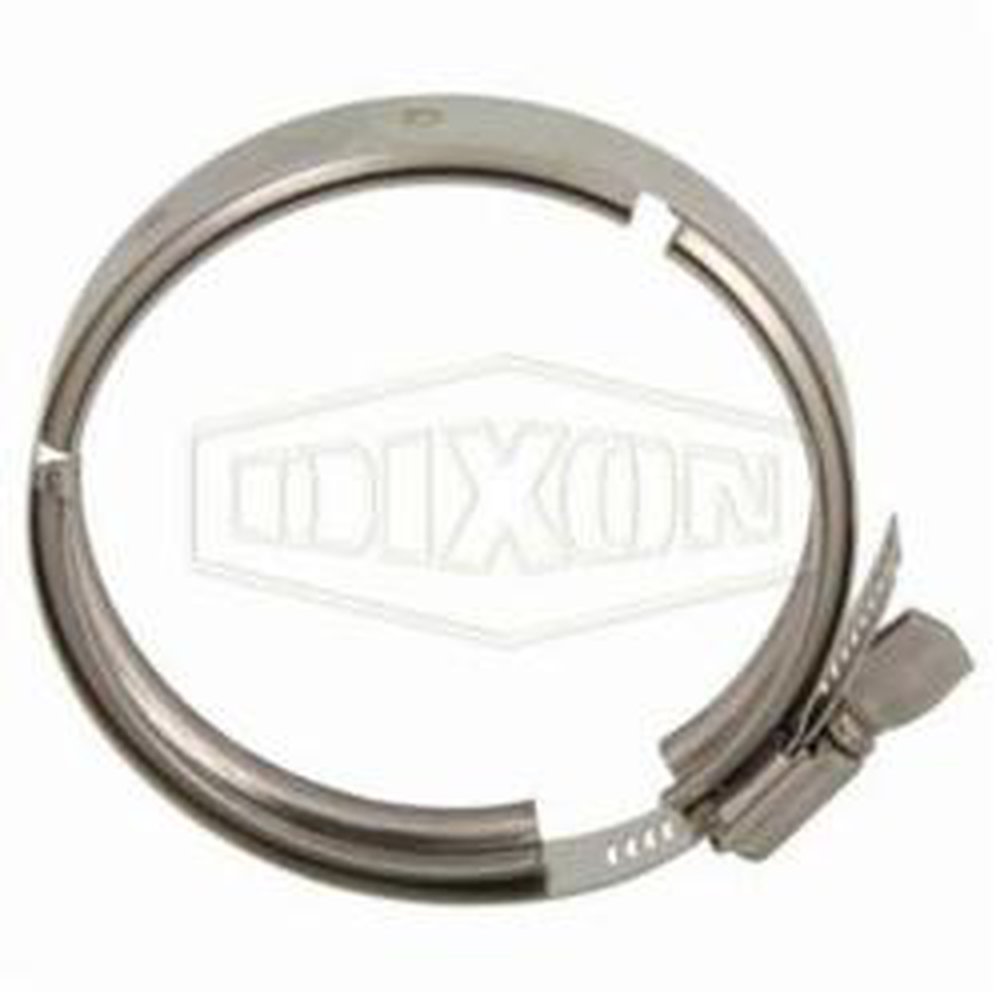

13WGC100-150 DIXON 1-1-1/2 CLAMP

Mouse over image to zoom, click to enlarge

Description: Dixon® Dairy Clamp, 1 to 1-1/2 in Tube, 2.08 in Outside Dia, 304 Stainless Steel, Domestic

Manufacturer PN: 13WGC100-150

UPC:  69746443061

Forberg Smith PN: 3761997

Invoice Description:

13WGC100-150 DIXON 1-1-1/2 CLAMP

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® 13WGC100-150 Dairy Clamp, 1 to 1-1/2 in Tube, 304 Stainless Steel, Domestic

Price:  $19.07 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Dairy Clamp, 1 to 1-1/2 in Tube, 2.08 in Outside Dia, 304 Stainless Steel, Domestic

Specifications

 Brand Name Dixon®
 Domestic or Import Domestic
 Manufacturer Part Number 13WGC100-150
 Material 304 Stainless Steel
 Tube Size 1 to 1-1/2 in

Features

▪ 80 psi at 70 deg F pressure
▪ Service pressure ratings are based on the following parameters: matching elastomer gasket and weld ferrules properly aligned and assembled with the clamps tightened to required torques, tests are done hydrostatically with no water hammer or shock loads
▪ Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures

Resources

 Catalog
 Catalog Page
