Dixon Valve & Coupling

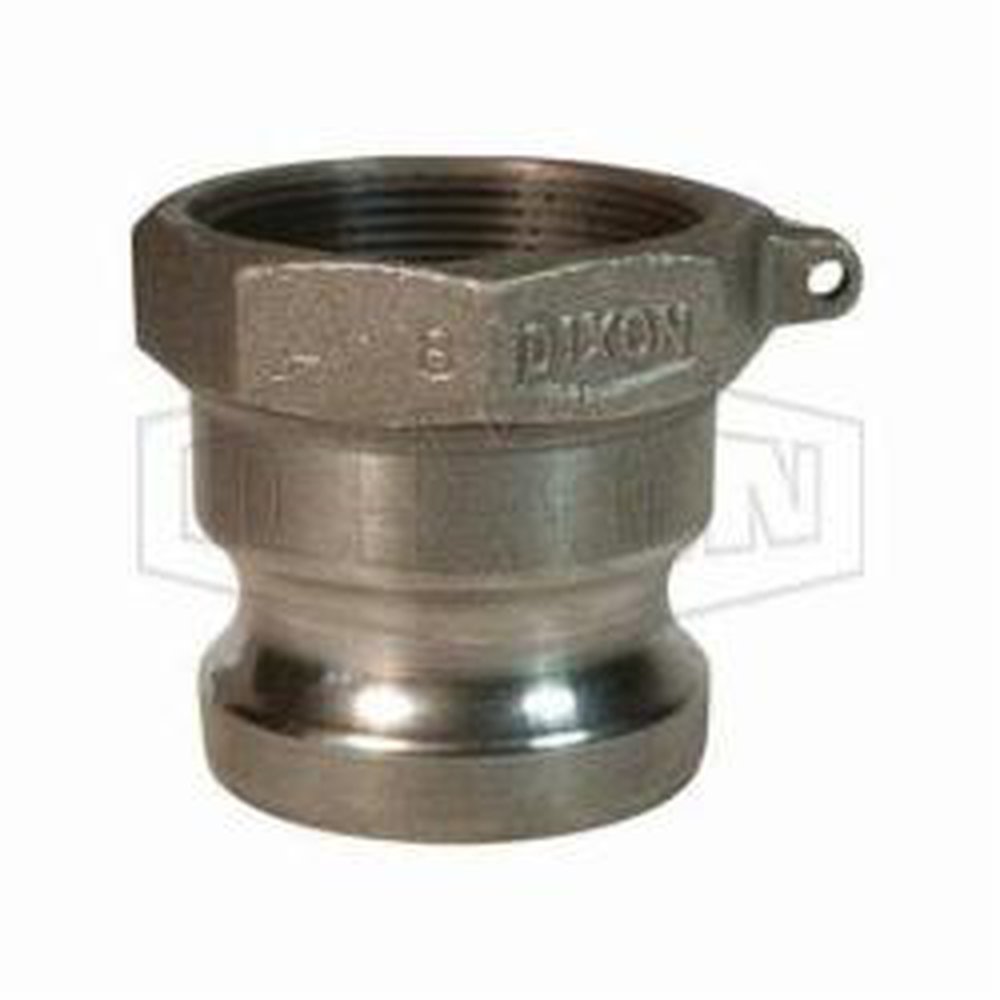

150-A-MI 1-1/2" DIXON FEMALE NPT X MALE ADAPTER

Mouse over image to zoom, click to enlarge

  • 150-A-MI 1-1/2" DIXON FEMALE NPT X MALE ADAPTER
  • 150-A-MI 1-1/2" DIXON FEMALE NPT X MALE ADAPTER

Description: Dixon® Cam and Groove Adapter, Type A, Series: Boss-Lock™, Adapter, 1-1/4 in Nominal, Male Adapter x FNPT, 250 psi, Malleable Iron, Unplated, Domestic

Manufacturer PN: 150-A-MI

UPC:  69746403829

Forberg Smith PN: 3283198

Invoice Description:

150-A-MI 1-1/2" DIXON FEMALE NPT X MALE ADAPTER


How Can We Make This Page Better?

Dixon® 150-A-MI Boss-Lock™ Type A Cam and Groove Adapter, 1-1/4 in, Male Adapter x FNPT, Malleable Iron, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Adapter, Type A, Series: Boss-Lock™, Adapter, 1-1/4 in Nominal, Male Adapter x FNPT, 250 psi, Malleable Iron, Unplated, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Male Adapter x FNPT
 Finish Unplated
 Fitting Type Adapter
 Manufacturer Part Number 150-A-MI
 Material Malleable Iron
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 150-A-MI ; 150AMI
 Pressure Rating 250 psi
 Series Boss-Lock™
 Type Type A
 Video Links

Features

▪ Precision machined to rigid tolerances
▪ Pressure rating is based on the seal of the mating part
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Do not use in connection with drinking water
▪ Wash hands after handling
