Dixon Valve & Coupling

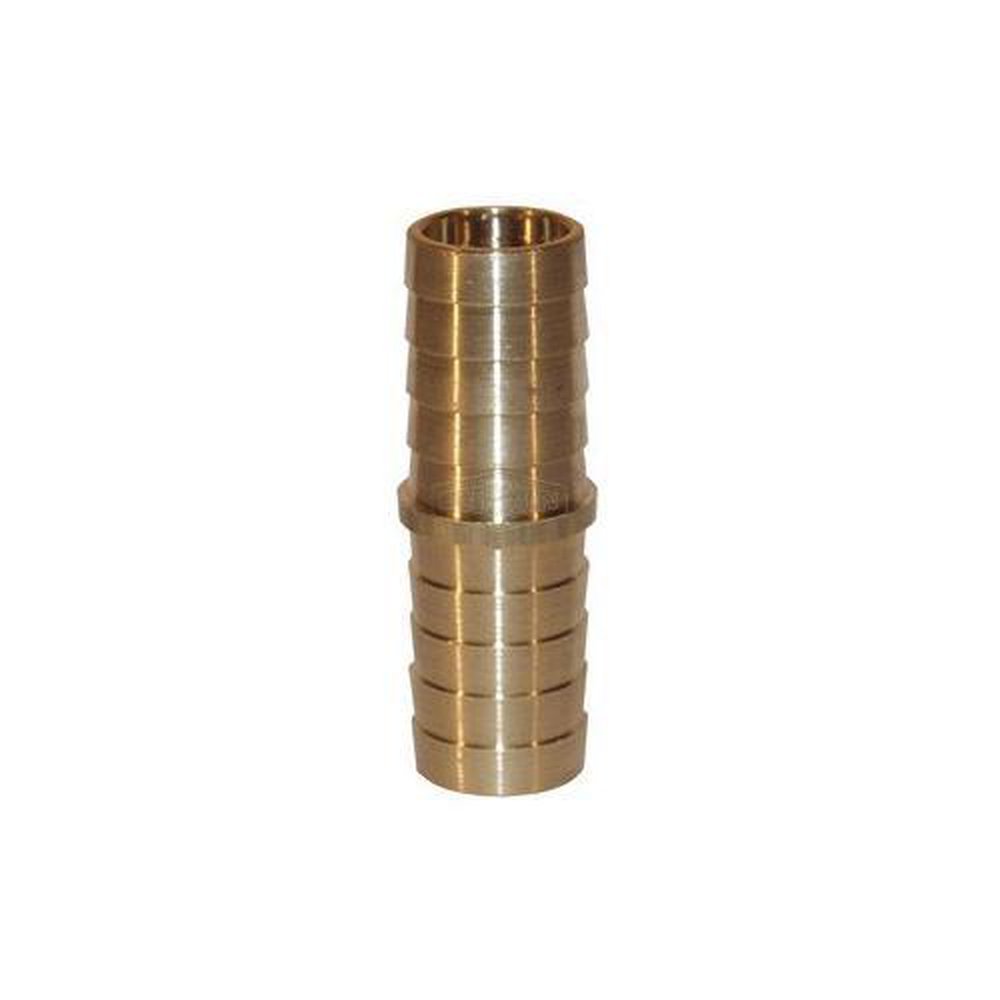

1781006C DIXON HOSE SPLICER

Mouse over image to zoom, click to enlarge

Description: Dixon®, 1781006C, Hose Mender, Series: 178, Fitting/Connector: Coupling, 5/8 x 3/8 in Nominal, Hose Barb End Style, 2.06 in Length, 4 Barb, 0.97 in Barb Length, -40 to 160 deg F, Brass, Domestic

Manufacturer PN: 1781006C

UPC:  69746423361

Forberg Smith PN: 4168585

Invoice Description:

1781006C DIXON HOSE SPLICER


SPEC SHEET

How Can We Make This Page Better?

Dixon® 1781006C 178 Hose Mender, 5/8 x 3/8 in Nominal, Hose Barb End Style, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon®, 1781006C, Hose Mender, Series: 178, Fitting/Connector: Coupling, 5/8 x 3/8 in Nominal, Hose Barb End Style, 2.06 in Length, 4 Barb, 0.97 in Barb Length, -40 to 160 deg F, Brass, Domestic

Specifications

 Application For use with hose clamps or crimped ferrules
 Barb Length 0.97 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Hose Barb
 Fitting Type Coupling
 Length 2.06 in
 Manufacturer Part Number 1781006C
 Material Brass
 Nominal Size 5/8 x 3/8 in
 Number Of Barb 4
 PART NUMBER KEYWORDS 1781006C ; BM5-3 ; 178-1006 ; BM53 ; 1781006 ; 697464994350 ; 69746499435
 Series 178
 Standards/Approvals SAE J476/J512/J514/J516
 Temperature Rating -40 to 160 deg F
 Video Links

Features

▪ All standard hose fittings are intended for use with hose clamps or crimped ferrules
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
▪ 0.97 in L barb
▪ 4 barbs

Resources

 Catalog
 Catalog Page
 Product Data Sheet
