Fabchem

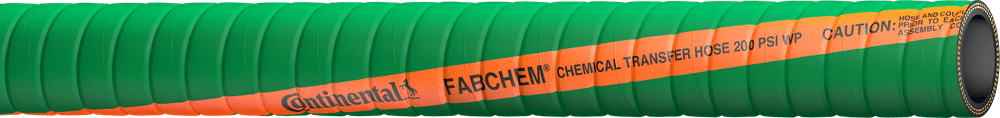

4 200 PSI GREEN FABCHEM CHEMICAL HOSE

Mouse over image to zoom, click to enlarge

Manufacturer PN: 20018502

Forberg Smith PN: 3050867

Invoice Description:

4 200 PSI GREEN FABCHEM CHEMICAL HOSE


SPEC SHEET


Fabchem 20018502 FABCHEM GREEN 4"

Log In for Pricing and Availability




Description

Trusted by industries nationwide, Continental Fabchem is our most popular solution for safely and efficiently handling a wide range of industrial chemicals. Engineered for performance under pressure, gravity flow, and full suction, it delivers unmatched reliability in demanding environments. Need added protection in explosive atmospheres? Choose FabChem-C, featuring a conductive tube and cover for superior static dissipationperfect for high-risk chemical transfer applications.*Refer to the Continental Chemical Resistance Guide for compatibility.

Specifications

 Bend Radius In 10
 Brand Name Continental
 Cover Color Green
 Cover Material EPDM
 Design Factor 4:1
 Hose ID Fraction 4 in
 Hose ID In 4 in
 Maximum Temperature F 212
 Minimum Temperature F -40
 Reinforcement Spiral-Plied Synthetic Fabric With Double Wire Helix
 Temperature Range -40F to 212F (-40C to 100C)
 Tube Material Pliosyn (UHMWPE)
 Working Pressure BAR 13.79
 Working Pressure PSI 200

Features

▪ Multiple Colors Available
▪ Handles majority of Common Chemicals

Resources

 Catalog
 Product Data Sheet
