Spears Manufacturing

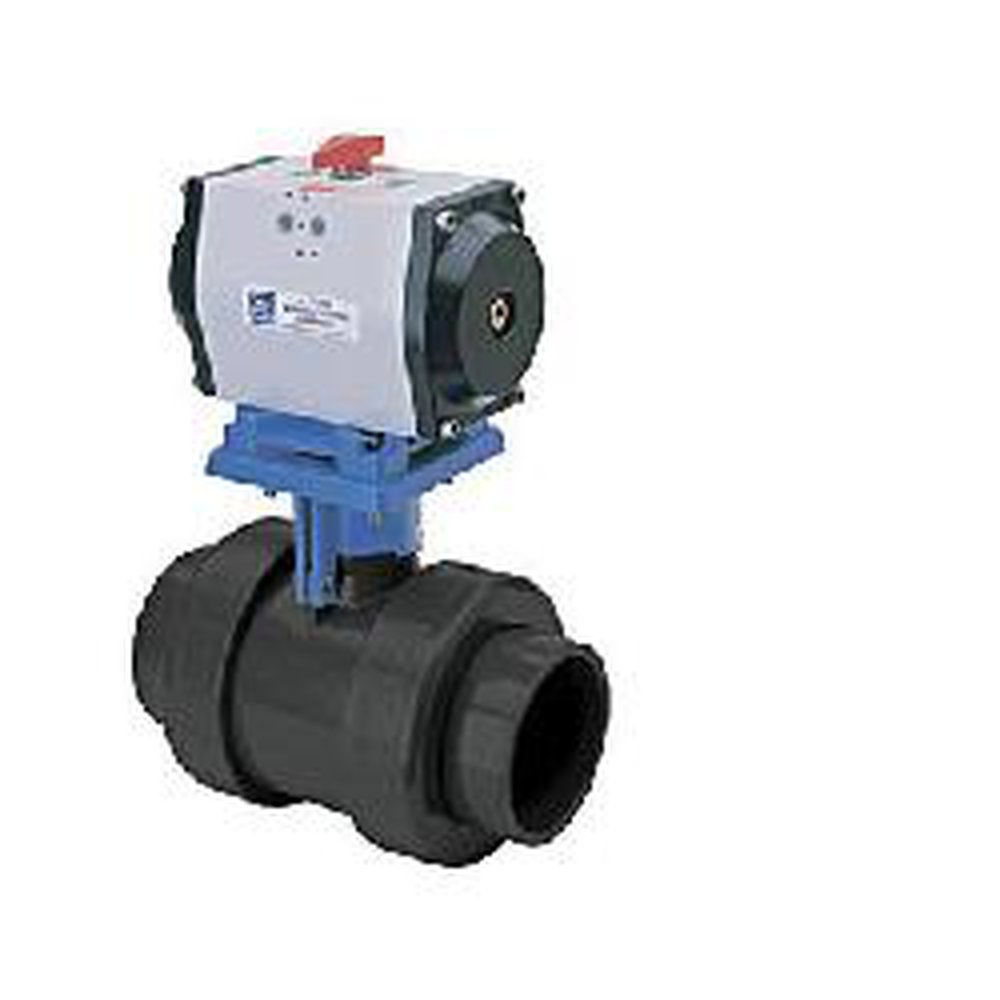

2 CPVC TU BV W/ EPDM 80PSI A/S/C MANUAL OVERRIDE, POSTION INDICATOR 21102J101-020 SPEARS

Mouse over image to zoom, click to enlarge

Description: Spears® Ball Valve, Premium Actuated, Series: True Union 2000, 2 in Nominal, Hub x Hub, 235 psi, 73 deg F, Pneumatic Actuator, CPVC Body, PTFE Seat/EPDM O-Ring

Manufacturer PN: 21102J101-020

UPC:  05421150791

Forberg Smith PN: 3705992

Invoice Description:

2 CPVC TU BV W/ EPDM 80PSI A/S/C MANUAL OVERRIDE, POSTION INDICATOR 21102J101-020 SPEARS


SPEC SHEET

How Can We Make This Page Better?

Spears® 21102J101-020 True Union 2000 Premium Actuated Ball Valve, Hub x Hub Connection, 235 psi Pressure, CPVC Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Industrial grade True Union design, 1/4-turn shutoff for a wide range of applications. Full-featured actuator can be custom configured with add-on accessories.
Spears® Ball Valve, Premium Actuated, Series: True Union 2000, 2 in Nominal, Hub x Hub, 235 psi, 73 deg F, Pneumatic Actuator, CPVC Body, PTFE Seat/EPDM O-Ring

Specifications

 Actuator Type Pneumatic
 Application Industrial
 Body Material CPVC
 Brand Name Spears®
 Connection Type Hub x Hub
 Includes Standard Plastic Thread End Connector
 Manufacturer Part Number 21102J101-020
 Nominal Size 2 in
 PART NUMBER KEYWORDS 21102J101-020 ; 21102J101020 ; 054211507919 ; 54211507919 ; 05421150791
 Pressure Rating 235 psi
 Series True Union 2000
 Softgoods Material PTFE Seat/EPDM O-Ring
 Temperature Rating 73 deg F
 Type Premium Actuated

Features

▪ Blocked seal carrier
▪ Double O-ring stem Seal
▪ 2-position air to spring closed
▪ Dual rack and pinion with adjustable stops
▪ Manual override
▪ Position indicator
▪ 80 psi operating pressure for actuator
