Dixon Valve & Coupling

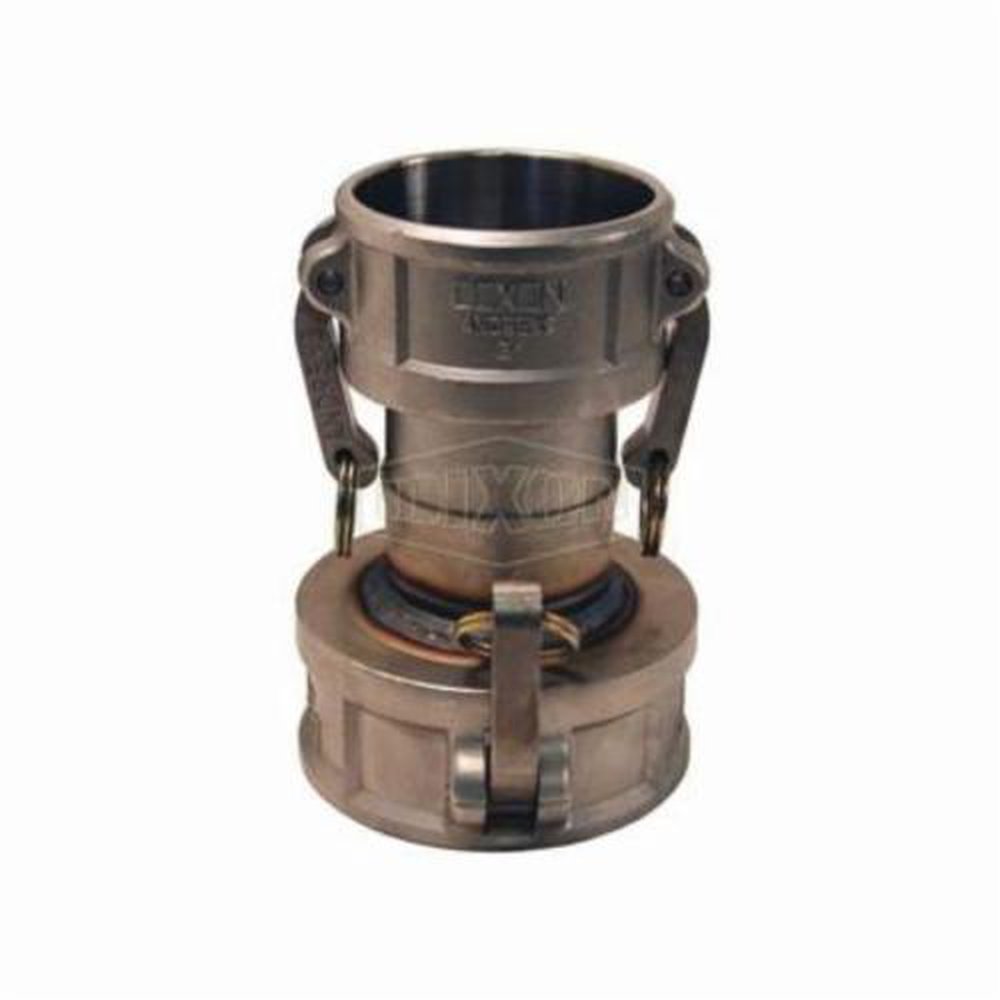

2030-DD-SS DIXON 2X3 SPOOL CPLR

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Spool Coupler, Coupling Fitting/Connector, 2 x 3 in Nominal, Coupler End Style, 6-1/2 in Length, 125 psi Pressure, 316 Stainless Steel, Domestic

Manufacturer PN: 2030-DD-SS

UPC:  69746407111

Forberg Smith PN: 4207054

Invoice Description:

2030-DD-SS DIXON 2X3 SPOOL CPLR


SPEC SHEET

How Can We Make This Page Better?

Dixon® 2030-DD-SS Cam and Groove Spool Coupler, 2 x 3 in Nominal, Coupler End Style, 316 Stainless Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Cam and Groove Spool Coupler, Coupling Fitting/Connector, 2 x 3 in Nominal, Coupler End Style, 6-1/2 in Length, 125 psi Pressure, 316 Stainless Steel, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Coupler
 Fitting Type Coupling
 Length 6-1/2 in
 Manufacturer Part Number 2030-DD-SS
 Material 316 Stainless Steel
 Nominal Size 2 x 3 in
 PART NUMBER KEYWORDS 2030-DD-SS ; 2030DDSS
 Pressure Rating 125 psi
 Video Links

Features

▪ 7-27/32 in open across cam arm
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Buna-N seal
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
