Viega

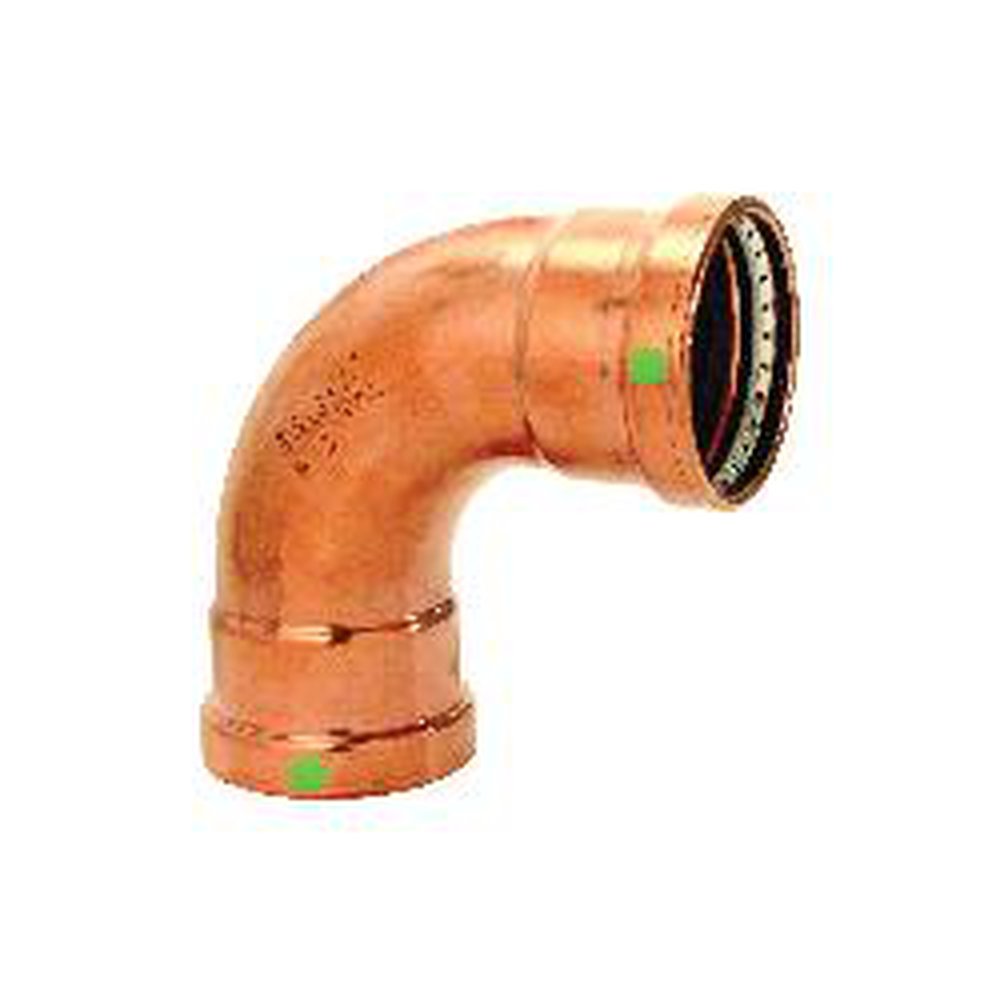

  • 20633 4 PROPRESS XL 90 ELBOW COPPER EPDM SEAL (XL -C)
  • 20633 4 PROPRESS XL 90 ELBOW COPPER EPDM SEAL (XL -C)

Description: ProPress® Pipe Elbow, Fitting/Connector Type: 90 deg Elbow, 4 in Nominal, Press, 200 psi, 0 to 250 deg F, Copper, Import

Manufacturer PN: 20633

UPC:  69151420633

Forberg Smith PN: 3043729

Invoice Description:

20633 4 PROPRESS XL 90 ELBOW COPPER EPDM SEAL (XL -C)


SPEC SHEET

How Can We Make This Page Better?

ProPress® 20633 90 deg Pipe Elbow, 4 in Nominal, Press End Style, Copper, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress® Pipe Elbow, Fitting/Connector Type: 90 deg Elbow, 4 in Nominal, Press, 200 psi, 0 to 250 deg F, Copper, Import

Specifications

 Application Potable Water Systems, Hot and Cold Water Systems, Heating Systems, Gas Systems, Fire Protection Systems, Solar Systems
 Brand Name ProPress
 Domestic or Import Import
 End Style Press
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 20633
 Material Copper
 Nominal Size 4 in
 PART NUMBER KEYWORDS 20633 ; 691514206332 ; 69151420633 ; 30691514206333
 Pressure Rating 200 psi
 Standards/Approvals ASTM B88|CSA Certified|FM Approved|IAPMO Certified|NSF 61G|UL Listed
 Temperature Rating 0 to 250 deg F

Features

▪ Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
▪ Reliable- achieve a consistent, strong, reliable, watertight seal
▪ The high strength connection, when installed properly, is guaranteed for 50 years
▪ Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
▪ Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
▪ Requires less equipment
▪ Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
▪ Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
