Viega

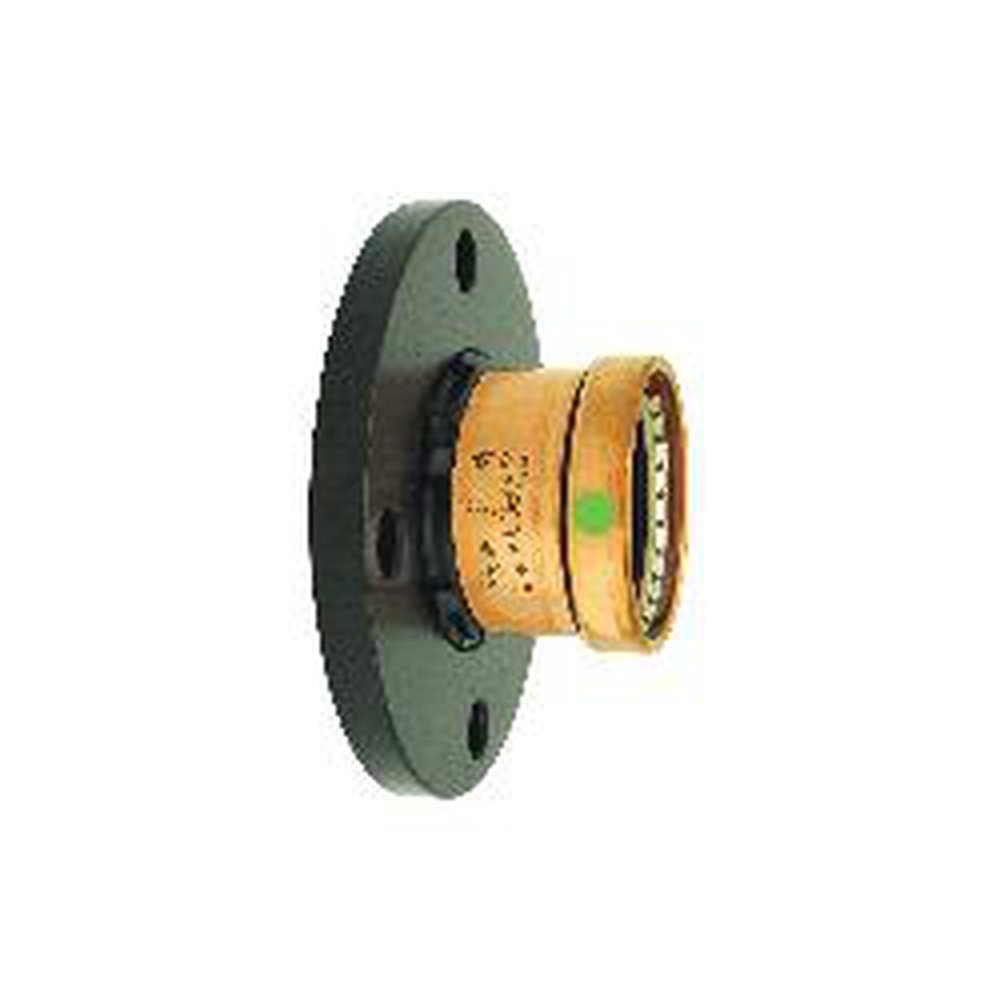

  • 20858 3 PROPRESS XL ADAPTER FLANGE 4 BOLT PROPXFLG COPPER EPDM SEAL (XL-C)
  • 20858 3 PROPRESS XL ADAPTER FLANGE 4 BOLT PROPXFLG COPPER EPDM SEAL (XL-C)

Description: ProPress®, 20858, Fitting, Adapter, Series: ProPress, 3 x 4 in Nominal, Press Connection, 200 psi Pressure, 0 to 250 deg F, Copper, Import

Manufacturer PN: 20858

UPC:  69151420858

Forberg Smith PN: 3043219

Invoice Description:

20858 3 PROPRESS XL ADAPTER FLANGE 4 BOLT PROPXFLG COPPER EPDM SEAL (XL-C)


SPEC SHEET


ProPress® 20858 ProPress Adapter Fitting, 3 x 4 in Nominal, Copper, Press Connection, Import

Log In for Pricing and Availability




Description

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress®, 20858, Fitting, Adapter, Series: ProPress, 3 x 4 in Nominal, Press Connection, 200 psi Pressure, 0 to 250 deg F, Copper, Import

Specifications

 Application Potable Water Systems, Hot and Cold Water Systems, Heating Systems, Gas Systems, Fire Protection Systems, Solar Systems
 Brand Name ProPress
 Domestic or Import Import
 End Style Press x Bolt Pattern
 Manufacturer Part Number 20858
 Material Copper
 Nominal Size 3 x 4 in
 PART NUMBER KEYWORDS 20858 ; 691514208589 ; 69151420858 ; 30691514208580
 Pressure Rating 200 psi
 Standards/Approvals ASTM B88|CSA Certified|FM Approved|IAPMO Certified|NSF 61G|UL Listed
 Temperature Rating 0 to 250 deg F

Features

▪ Powder coating isolates the dissimilar metals, preventing electrolysis
▪ Stainless steel grip ring, plastic snap ring flange
▪ Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
▪ Reliable- achieve a consistent, strong, reliable, watertight seal
▪ The high strength connection, when installed properly, is guaranteed for 50 years
▪ Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
▪ Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
▪ Requires less equipment
▪ Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
▪ Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
▪ Viega smart Connect® feature is available on all of our fittings and most of our valves
