Parker Hannifin
2203P-8 PARKER FSC 1/2 FIP BRS FEMALE THD TEE

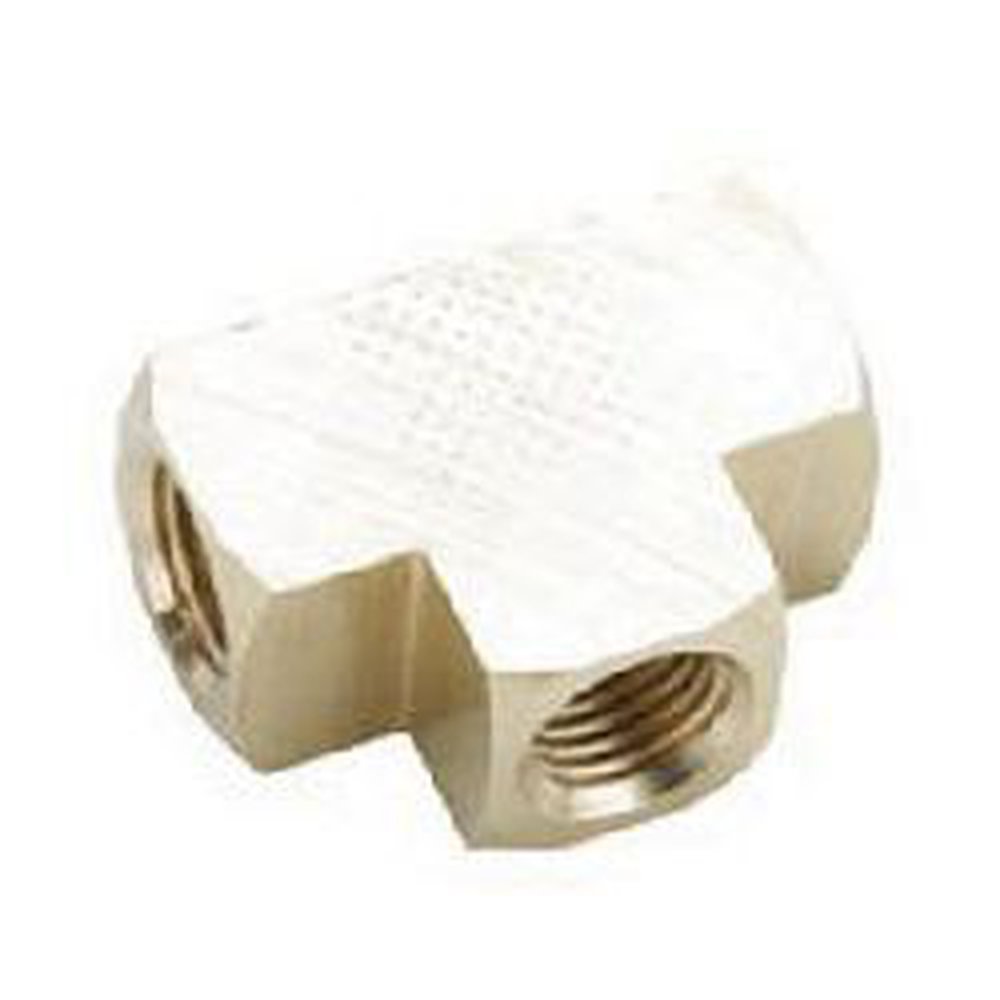

Mouse over image to zoom, click to enlarge

Description: Parker® Pipe Tee, Series: 2203P, Fitting/Connector Type: Tee, 8 in Nominal, FNPT, 2.14 in Length, 1000 psi, Extruded, Brass, -65 to 250 deg F

Manufacturer PN: 2203P-8

Forberg Smith PN: 3049877

Invoice Description:

2203P-8 PARKER FSC 1/2 FIP BRS FEMALE THD TEE


How Can We Make This Page Better?

Parker® 2203P-8 Pipe Tee, 8 in Nominal, FNPT End Style, Brass

Log In for Pricing and Availability




Description

Parker® offers the broadest line of pipe fittings in the marketplace today. Both forged and extruded shapes ranging in sizes from 1/8 in to 1 in are available and all pipe fitting threads are made to Dry seal standards. Parker®'s pipe fittings meet all functional requirements of SAE J530 and SAE J531. Pipe fittings are compatible with copper and brass tubing and iron pipe.
Parker® Pipe Tee, Series: 2203P, Fitting/Connector Type: Tee, 8 in Nominal, FNPT, 2.14 in Length, 1000 psi, Extruded, Brass, -65 to 250 deg F

Specifications

 Application Air Lines, Water Lines, Cooling Lines, Industrial, Construction, Heavy Duty Truck, Mobile, Factory/Process Automation
 Brand Name Parker®
 Construction Extruded
 End Style FNPT
 Fitting Type Tee
 Length 2.14 in
 Manufacturer Part Number 2203P-8
 Material Brass
 Nominal Size 8 in
 PART NUMBER KEYWORDS 2203P-8 ; 2203P8
 Pressure Rating 1000 psi
 Series 2203P
 Standards/Approvals Certificate of Insurance|FSC REACH Product Declaration|RoHS Compliant|Safe Drinking Water Act|SAE J530 and SAE J531
 Temperature Rating -65 to 250 deg F
