Viega

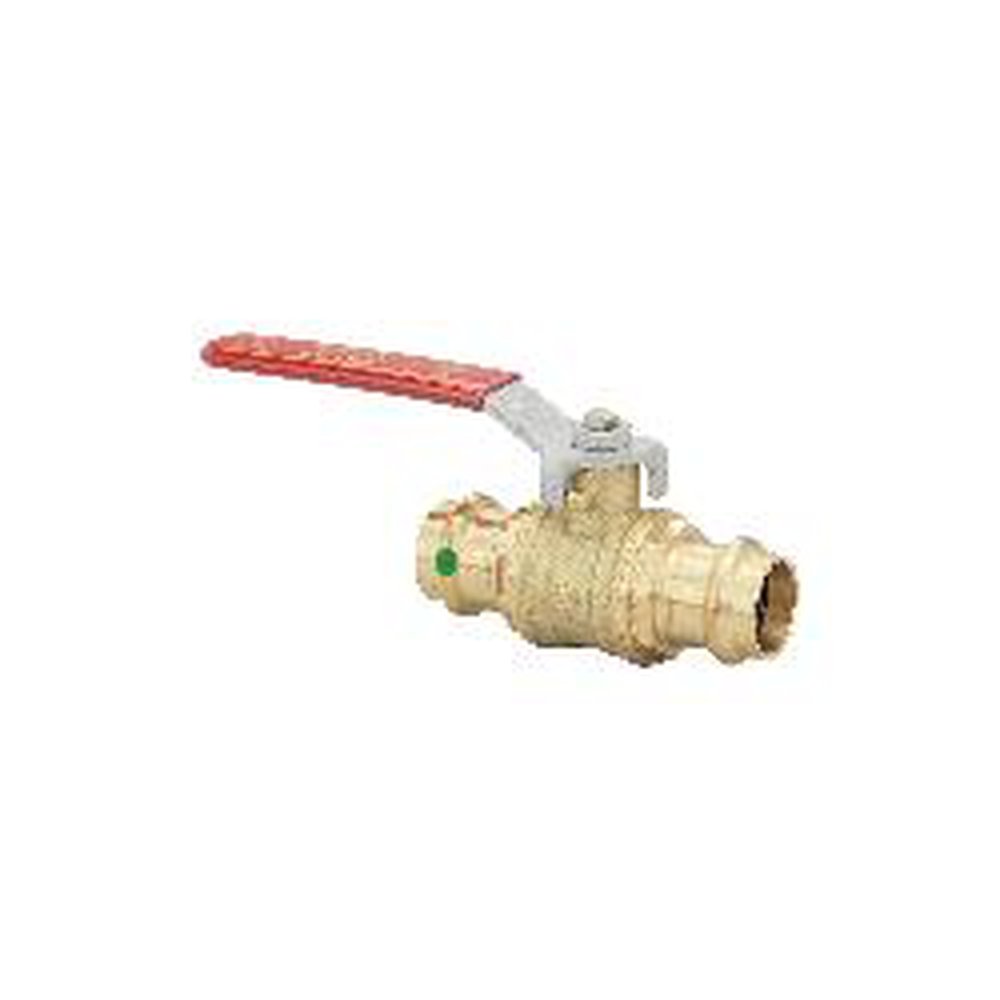

  • 24000 1/2 PROPRESS BALL VALVE BRONZE/ BRASS EPDM SEAL
  • 24000 1/2 PROPRESS BALL VALVE BRONZE/ BRASS EPDM SEAL

Description: ProPress® Ball Valve, 1/2 in Nominal, Press, 200 psi CWP, 250 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, Bronze/Brass Body, EPDM, Import

Manufacturer PN: 24000

UPC:  69151424000

Forberg Smith PN: 3463896

Invoice Description:

24000 1/2 PROPRESS BALL VALVE BRONZE/ BRASS EPDM SEAL


SPEC SHEET

How Can We Make This Page Better?

ProPress® 24000 Ball Valve, 1/2 in Nominal, Press End Style, Bronze/Brass Body, Full Port, EPDM Softgoods, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega ProPress is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress offers more features and benefits than any other imitation press system.
ProPress® Ball Valve, 1/2 in Nominal, Press, 200 psi CWP, 250 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, Bronze/Brass Body, EPDM, Import

Specifications

 Actuator Type Lever Operated
 Application For use in Potable Water, Hydronic Heating (with Glycol), Chilled Water, Compressed Air, Non-Medical Gases, Fire Sprinkler, Low Pressure Steam, Vacuum Systems
 Body Material Bronze/Brass
 Brand Name ProPress
 Domestic or Import Import
 End Style Press
 Manufacturer Part Number 24000
 Nominal Size 1/2 in
 PART NUMBER KEYWORDS 24000 ; 691514240008 ; 69151424000 ; 30691514240009
 Pressure Rating 200 psi CWP
 Softgoods Material EPDM
 Standards/Approvals IGC-157
 Temperature Rating 250 deg F

Features

▪ Patented smart connect feature
▪ Makes secure connections in less than seven seconds
▪ No flame, solder flux or heavy equipment needed
▪ Connections can be made wet or dry
▪ EPDM seal
