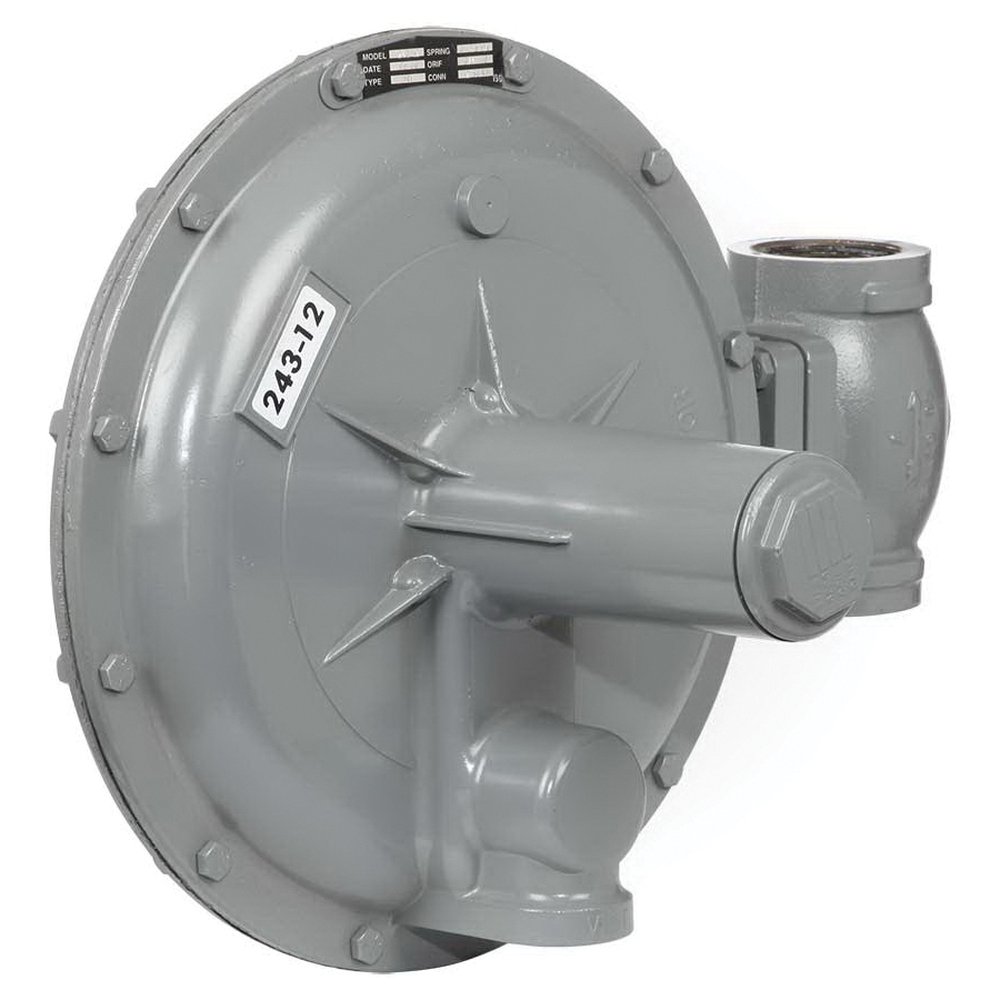

243-12-2 SENSUS 1-1/2" GAS REG 3/8 ORIFICE GREEN SPRING 6-14 WC

Mouse over image to zoom, click to enlarge

Description: Sensus Service Regulator, Commercial, 243-12 Series, 2 in Nominal Size, NPT, 40 psi, -20 to 150 deg F, Cast Iron Body, Brass Trim

Manufacturer PN: 243-12-2

Forberg Smith PN: 4244470

Invoice Description:

243-12-2 SENSUS 1-1/2" GAS REG 3/8 ORIFICE GREEN SPRING 6-14 WC

UNSPSC: 39120000


How Can We Make This Page Better?

Sensus 243-12-2 Commercial Service Regulator, 2 in, NPT, 40 psi, Cast Iron Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Sensus Service Regulator, Commercial, 243-12 Series, 2 in Nominal Size, NPT, 40 psi, -20 to 150 deg F, Cast Iron Body, Brass Trim

Specifications

 Application Boilers, Burners, Furnaces, Ovens, Heaters, Kilns, Engines and air conditioners
 Body Material Cast Iron
 Brand Name Sensus
 End Style NPT
 Includes Internal Relief Valve
 Manufacturer Part Number 243-12-2
 Nominal Size 2 in
 PART NUMBER KEYWORDS 243-12-2 ; 243122
 Pressure Rating 40 psi
 Series 243-12
 Temperature Rating -20 to 150 deg F
 Trim Material Brass
 Type Commercial

Features

▪ 14.65 psi at 60 deg F
▪ The performance data is based on normal testing at 70 deg F flowing temperature
▪ Changes in performance can occur at extreme low flowing temperatures
▪ Installs and adjusts easily
▪ Allows for pressure factor measurement, pressure compensated metering and fixed factor billing
▪ Compatible with natural gas, propane, LPG, air nitrogen
▪ Interchangeable bodies and diaphragm-case assemblies
▪ The model 243 regulator may be used for flowing gas temperatures from -20 to 150 deg F
▪ The model 243 regulator is not recommended for buried service
▪ 2 in NPT screwed
▪ 30 deg valve angle
▪ 3/4 in orifice size
▪ Capacity in SCFH natural gas
▪ 0.6 specific gravity
