Ashcroft

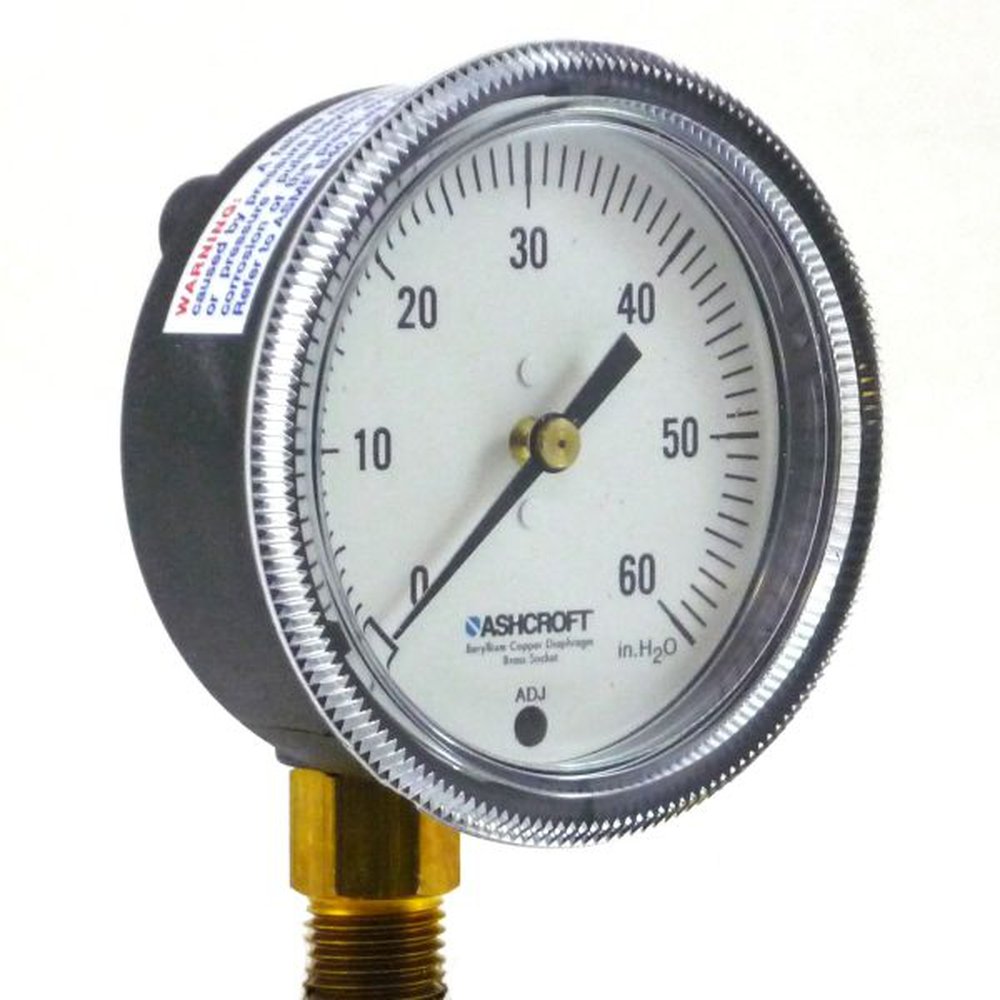

25 1490A 02L 100/0IWV ASHCROFT DIAPHRAGM GAUGE 2.5 DIAL, 1/4 NPT LOWER CONN

Mouse over image to zoom, click to enlarge

Description: The Ashcroft Type 1490 Low Pressure Diaphragm Gauge uses a very sensitive diaphragm capsule to measure low pressure and vacuum. The gauge is specifically designed for use whenever the pressure medium is a gas that is not corrosive to beryllium copper, brass, polysulfone and RTV silicone. The polysulfone case is suitable for intermittent or continuous service on natural gas provided a .013" throttle plug is installed in the socket. Typical applications are, but not limited to, vacuum pumps, gas leak detectors, air compressors, air filters, gas burners, gas measurement, vacuum ovens, suction regulators and respirators.

Manufacturer PN: 251490A02L100/0IWV

UPC:  759426954595

Forberg Smith PN: 3022297

Invoice Description:

25 1490A 02L 100/0IWV ASHCROFT DIAPHRAGM GAUGE 2.5 DIAL, 1/4 NPT LOWER CONN

UNSPSC: 41112400


SPEC SHEET

▸ See All in Ashcroft Industrial Gauges


How Can We Make This Page Better?

Ashcroft 25 1490A 02L 100" WC VAC Pressure Gauge, 2-1/2 In Dial, 1/4 In LM

Price:  $57.32 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

The Ashcroft Type 1490 Low Pressure Diaphragm Gauge uses a very sensitive diaphragm capsule to measure low pressure and vacuum. The gauge is specifically designed for use whenever the pressure medium is a gas that is not corrosive to beryllium copper, brass, polysulfone and RTV silicone. The polysulfone case is suitable for intermittent or continuous service on natural gas provided a .013" throttle plug is installed in the socket. Typical applications are, but not limited to, vacuum pumps, gas leak detectors, air compressors, air filters, gas burners, gas measurement, vacuum ovens, suction regulators and respirators.

Specifications

 Accuracy ASME B 40.1 Grade A (+/-2-1-2% of span)
 Brand Name Ashcroft
 Case Material Plastic - Polysulfone
 Category Pressure Gauges
 Connection Location Lower Mount
 Connection Size 1/4 In NPT
 Dial Size 2-1/2 In
 Manufacturer Ashcroft
 Manufacturer Part Number 3B-T67-1-1/2U-AA-L4.5-3/
 Movement Dry
 Note We recommend installing either a ball valve or needle valve in-line for gauge isolation.
 Range 0 - 100 In WC Vacuum
 Series 1490 Low Pressure Diaphragm Gauges
 Window Material Polycarbonate Plastic

Resources

 Product Data Sheet
