Viega

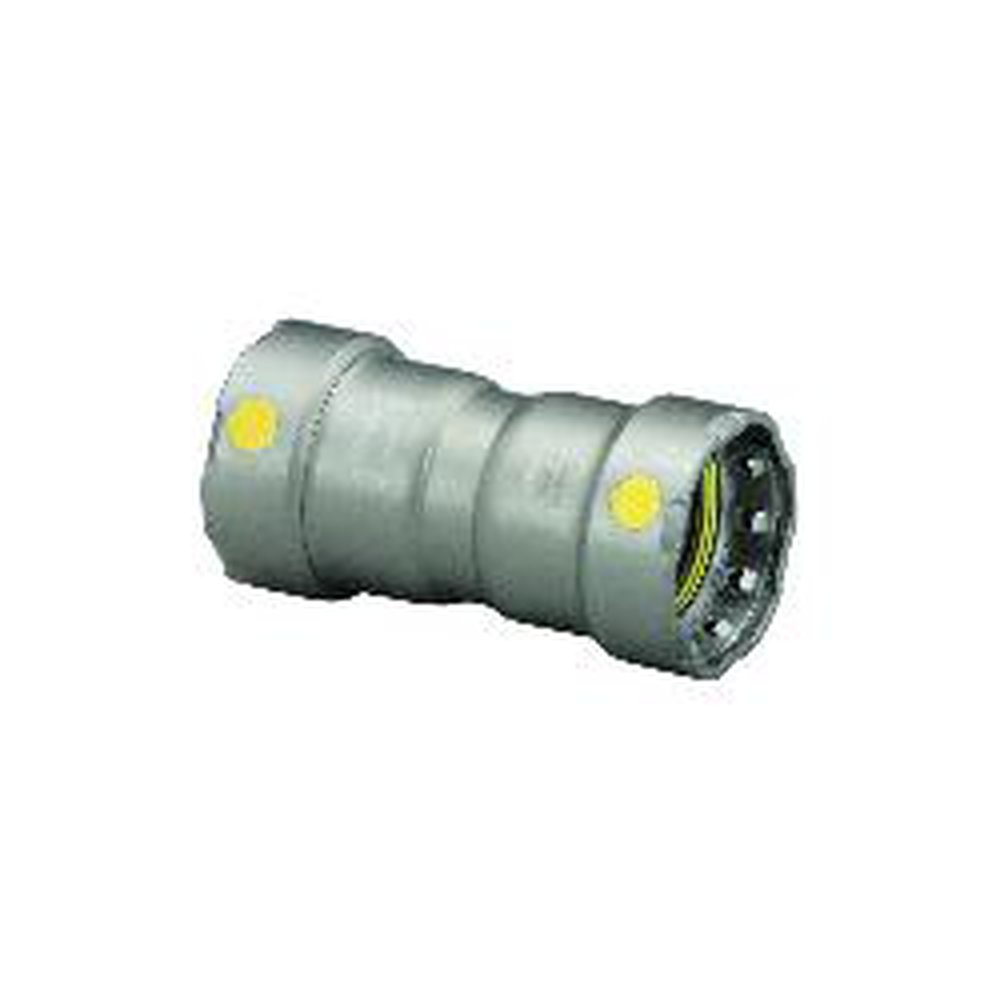

  • 25016 1-1/4 MEGAPRESS-G COUPLING W/ STOP CS HNBR SEAL
  • 25016 1-1/4 MEGAPRESS-G COUPLING W/ STOP CS HNBR SEAL

Description: MegaPress® Pipe Coupling, Fitting/Connector Type: Coupling, 1-1/4 in Nominal, Press, -40 To 180 deg F, Carbon Steel, 4.34 in L, Import

Manufacturer PN: 25016

UPC:  69151425016

Forberg Smith PN: 3045582

Invoice Description:

25016 1-1/4 MEGAPRESS-G COUPLING W/ STOP CS HNBR SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 25016 Pipe Coupling With Stop, 1-1/4 in Nominal, Press End Style, Carbon Steel, Import

Log In for Pricing and Availability




Description

Viega MegaPress® is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress® Pipe Coupling, Fitting/Connector Type: Coupling, 1-1/4 in Nominal, Press, -40 To 180 deg F, Carbon Steel, 4.34 in L, Import

Specifications

 Application Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
 Brand Name MegaPress®
 Dimensions 4.34 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Coupling
 Manufacturer Part Number 25016
 Material Carbon Steel
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 25016 ; 691514250168 ; 69151425016 ; 30691514250169
 Standards/Approvals ABS Listed|ANSI LC4/CSA 6.32|ASME B31|CRN OA14541.6|CSA B149.1|FM 1920|GL Listed|LR Certified|NFPA 13/13D/13R/31/54/58
 Temperature Rating -40 To 180 deg F

Features

▪ Makes secure press connections in less than seven seconds
▪ No oil or heavy threading equipment needed
▪ Patented Viega Smart Connect® feature
▪ More than 100 different configurations
▪ Connections can be made wet or dry
▪ For use with carbon steel piping system sch 5 to 40
