Viega

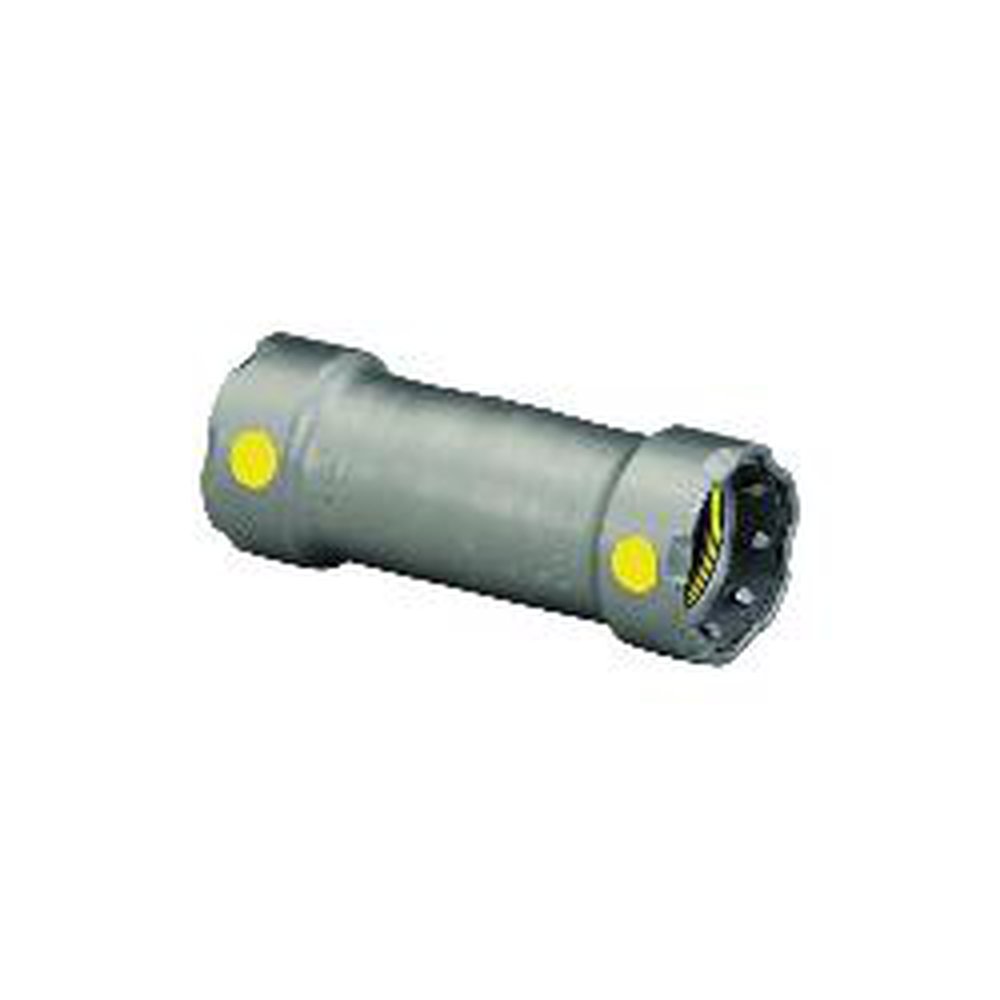

  • 25086 1-1/4 MEGAPRESS-G EXTENDED COUPLING NO STOP CS HNBR SEAL
  • 25086 1-1/4 MEGAPRESS-G EXTENDED COUPLING NO STOP CS HNBR SEAL

Description: MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, 1-1/4 in Nominal, Press, 200 psi, -40 to 180 deg F, Carbon Steel, 5.33 in L, Import

Manufacturer PN: 25086

UPC:  69151425086

Forberg Smith PN: 4144866

Invoice Description:

25086 1-1/4 MEGAPRESS-G EXTENDED COUPLING NO STOP CS HNBR SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 25086 Extended Coupling, 1-1/4 in Nominal, Press End Style, Carbon Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega MegaPress® is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, 1-1/4 in Nominal, Press, 200 psi, -40 to 180 deg F, Carbon Steel, 5.33 in L, Import

Specifications

 Application For use in compressed air, fuel gas and heating oil applications
 Brand Name MegaPress®
 Dimensions 5.33 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Coupling
 Includes HNBR Sealing Element
 Manufacturer Part Number 25086
 Material Carbon Steel
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 25086 ; 691514250861 ; 69151425086 ; 30691514250862
 Pressure Rating 200 psi
 Standards/Approvals ASME B31|ANSI LC4/CSA 6.32|ABS Listed|CRN #OA14541.6|CSA B149.1|GL Listed|IAPMO LC4|ICC LC4|International Plumbing Code|International Mechanical Code|International Fuel Gas Code|LR Listed|Uniform Plumbing Code|Uniform Mechanical Code
 Temperature Rating -40 to 180 deg F

Features

▪ For use with SCH 5 to SCH 40 carbon steel piping system
▪ Makes secure press connections in less than seven seconds
▪ No oil or heavy threading equipment needed
▪ Patented Viega Smart Connect® feature
▪ Connections can be made wet or dry
▪ 125 psi maximum for fuel gas application
▪ Model 6615.3
▪ Without stop
