IPEX

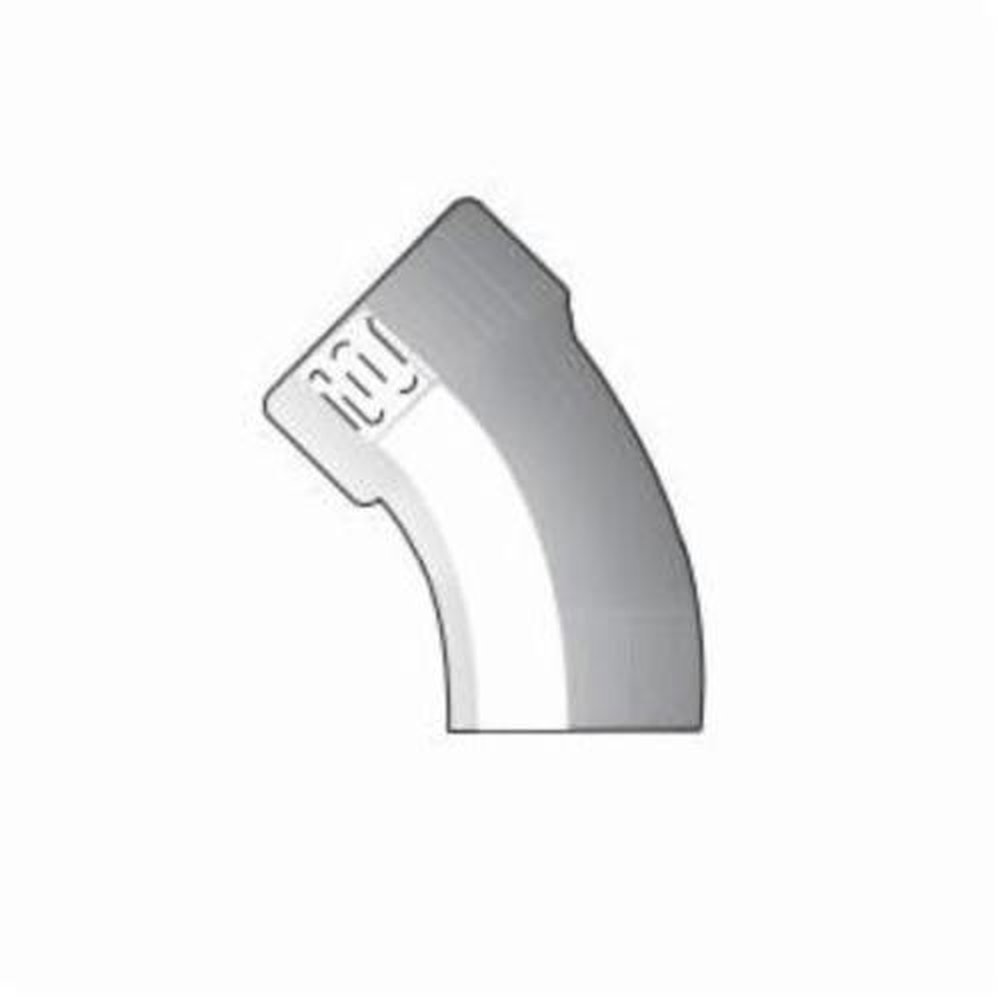

257222 L212 2" ENFUSION 45 ST ELL

Mouse over image to zoom, click to enlarge

Description: IPEX Enfield™ Electrofusion Pipe Elbow, Fitting/Connector Type: 45 deg Elbow, 2 in Nominal, Socket x Spigot, Polypropylene, -10 to 212 deg F

Manufacturer PN: 257222

Forberg Smith PN: 3134906

Invoice Description:

257222 L212 2" ENFUSION 45 ST ELL


SPEC SHEET


IPEX Enfield™ Electrofusion 257222 Pipe 45 deg Elbow, 2 in, Socket x Spigot, Polypropylene

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enfield electrofusion fittings are molded with an integral resistance wire in the socket, with jointing completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit. The result of these innovations is an unparalleled level of joint reliability and repeatability. Enfield has proven over time that it produces the optimum level of performance where it matters most - at the joint interface. It offers unprecedented control of jointing - controlled fit, controlled temperature and controlled time.
IPEX Enfield™ Electrofusion Pipe Elbow, Fitting/Connector Type: 45 deg Elbow, 2 in Nominal, Socket x Spigot, Polypropylene, -10 to 212 deg F

Specifications

 Brand Name IPEX®
 End Style Socket x Spigot
 Fitting Type 45 deg Elbow
 Manufacturer Part Number 257222
 Material Polypropylene
 Nominal Size 2 in
 PART NUMBER KEYWORDS 257222 ; L212 ; 622454038684 ; 62245403868
 Standards/Approvals ASTM F1412|CSA B181.3|D4101|IAPMO Listed|NSFApproved
 Temperature Rating -10 to 212 deg F

Features

▪ Installed cost: 50% less than glass
▪ Breakage factor eliminated
▪ Maintenance free
▪ Flame retardant polypropylene
▪ Positive reliable joints made in 2 minutes - installation time is reduced
▪ Several joints can be made at one time
▪ Proven reliability for over a decade
▪ Enfield is manufactured from polypropylene which has an operating temperature range from -10 to 212 deg for this allows systems to be flushed with boiling water
▪ Heavy gauge resistance wire molded into sockets - no loose components, controlled fusion of joints
▪ Easy connecting heavy duty socket terminal posts complete with protection ears
▪ Microprocessor controlled enfusion unit ensures secure joints and joint repeatability
▪ Matched system: high quality pipe and fittings are matched to give ease of installation and long term reliability
▪ Easy to install: even in difficult areas

Resources

 Catalog
 Product Data Sheet
