Viega

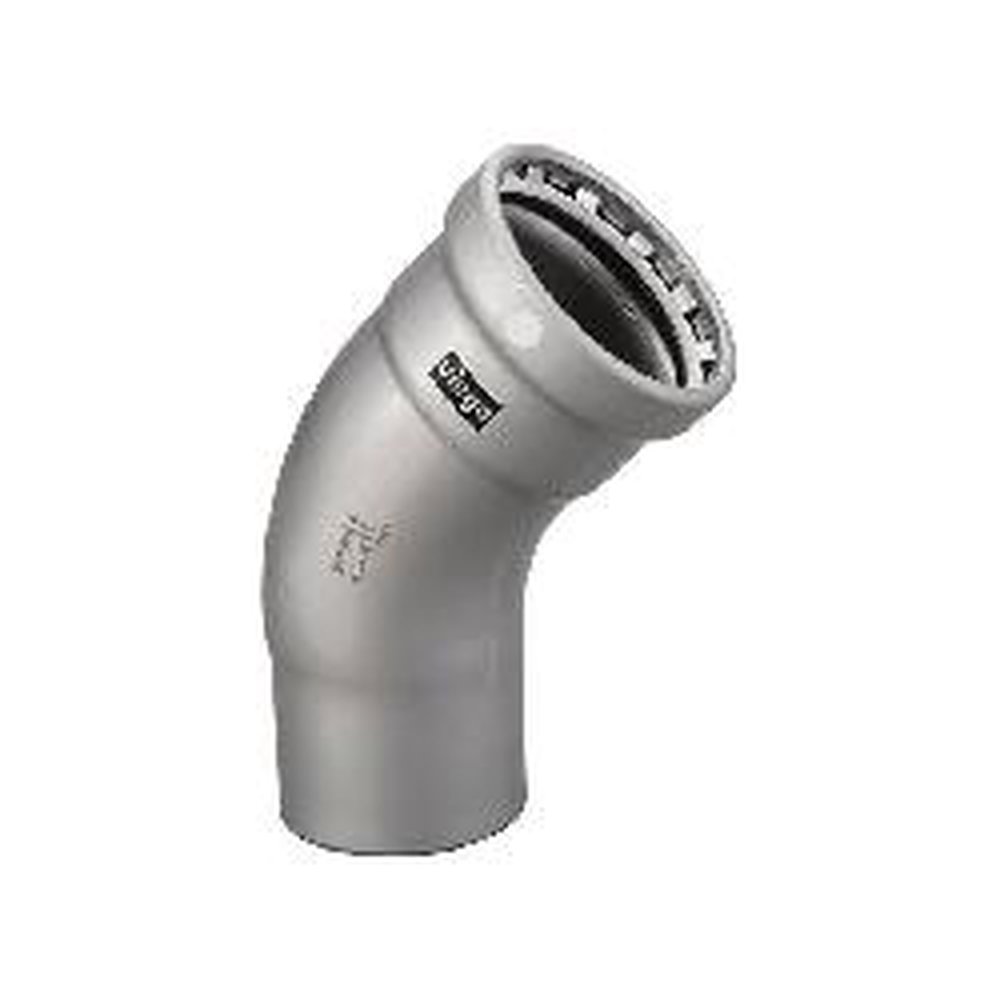

  • 26550 3 MEGAPRESS XL STREET 45 ELBOW CS FKM SEAL
  • 26550 3 MEGAPRESS XL STREET 45 ELBOW CS FKM SEAL

Description: MegaPress®, 26550, Street Elbow, Fitting/Connector: 45 deg Street Elbow, 3 in Nominal, Fitting x Press End Style, 200 psi Pressure, 14 to 284 deg F, Carbon Steel, Import

Manufacturer PN: 26550

UPC:  69151426550

Forberg Smith PN: 4130738

Invoice Description:

26550 3 MEGAPRESS XL STREET 45 ELBOW CS FKM SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 26550 Street Elbow, 45 deg Street Elbow, 3 in Nominal, Fitting x Press End Style, Carbon Steel, Import

Log In for Pricing and Availability




Description

Viega MegaPress® is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air and fire sprinkler applications. Viega MegaPress® fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 10 SCH 40/STD black steel pipe.
MegaPress®, 26550, Street Elbow, Fitting/Connector: 45 deg Street Elbow, 3 in Nominal, Fitting x Press End Style, 200 psi Pressure, 14 to 284 deg F, Carbon Steel, Import

Specifications

 Application For use with SCH 10 to SCH 40 Carbon Steel Pipe, Commercial and Industrial
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Fitting x Press
 Fitting Type 45 deg Street Elbow
 Includes FKM Sealing Element
 Manufacturer Part Number 26550
 Material Carbon Steel
 Nominal Size 3 in
 PART NUMBER KEYWORDS 26550 ; 691514265506 ; 69151426550 ; 30691514265507
 Pressure Rating 200 psi
 Standards/Approvals ASTM A53/A106/A135 and A795|ASME B31|CRN #OA14541.6|FM Class 1920|ICC LC1002|IAPMO PS117|International Plumbing Code|International Mechanical Code|NFPA 13/13D/13R/31/54 and 58|NFPA 54 section 404.8|NACE Standard RP0169-2002 section 5 2009|Uniform Plumbing Code|Uniform Mechanical Code
 Temperature Rating 14 to 284 deg F
 Video Links

Features

▪ Patented Viega Smart Connect® makes secure connection in less than 7 sec
▪ Minimizes system downtime by allowing for wet connection
▪ Fast and easy to use
▪ No threading, cutting oil, or heavy equipment needed
▪ Helps installers easily identify unpressed connections during pressure testing
▪ Model 4826.1XL
