Viega

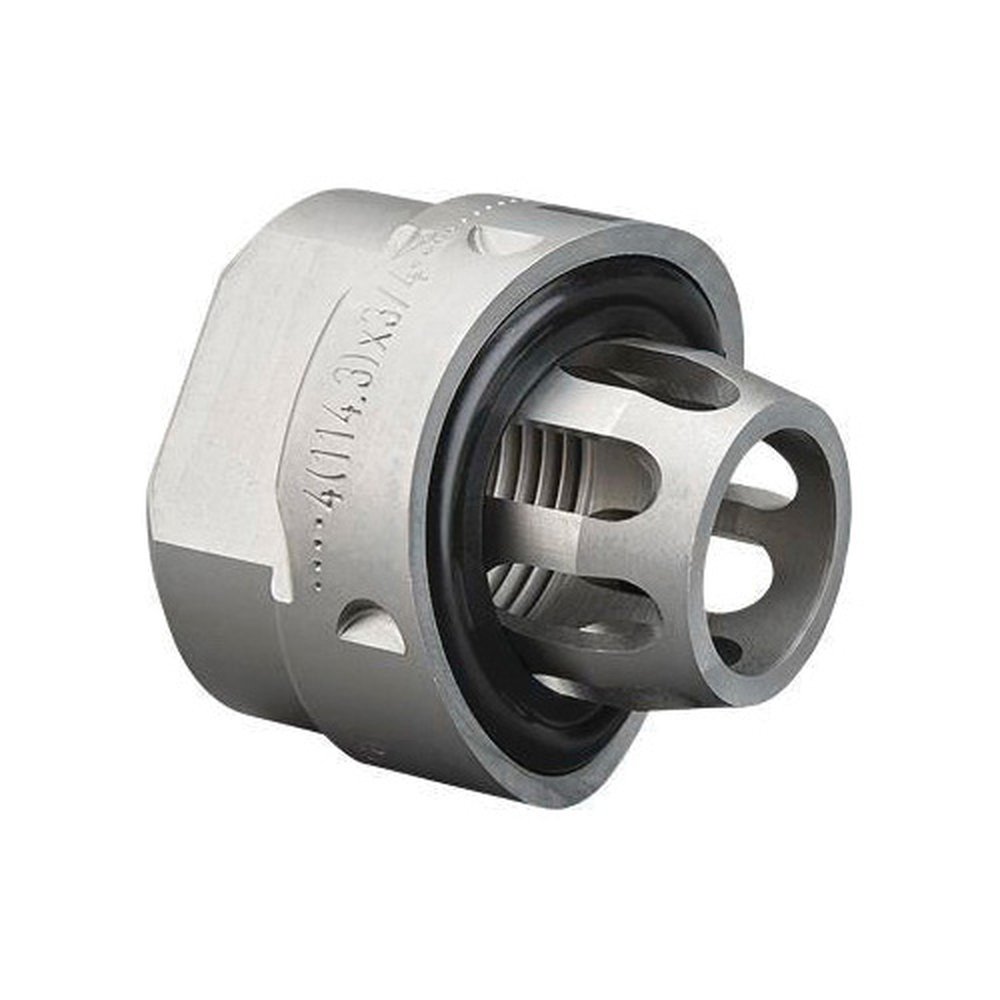

  • 26910 4X3/4 MEGAPRESS CS PRESS-IN BRANCH CONNECTOR PROPXFIP EPDM SEAL
  • 26910 4X3/4 MEGAPRESS CS PRESS-IN BRANCH CONNECTOR PROPXFIP EPDM SEAL

Description: MegaPress® Press-In Branch Connector, Series: Model 4812.35, Fitting/Connector Type: Branch Connector, 4 x 3/4 in Nominal, Press x FNPT, SCH 40/STD, 200 psi, 250 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 1.69 in Dia x 1.65 in L, Import

Manufacturer PN: 26910

UPC:  69151426910

Forberg Smith PN: 4334635

Invoice Description:

26910 4X3/4 MEGAPRESS CS PRESS-IN BRANCH CONNECTOR PROPXFIP EPDM SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 26910 Model 4812.35 Press-In Branch Connector, 4 x 3/4 in Nominal, Press x FNPT End Style, Carbon Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The MegaPress® Press-in Branch Connector is designed for schedule 10 and schedule 40 carbon steel pipes. The press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. It is particularly suitable where space is at a premium, e.g. in pipe manifold installation for sensors, thermometers or drains. A separate press-in branch connector is available for the different pipe dimensions. The press-in branch connector is fitted with a sealing element made of EPDM or FKM. The press-in branch connectors are marked with a green dot for EPDM and a white dot for FKM. The Viega MegaPress® Press-in Branch Connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.
MegaPress® Press-In Branch Connector, Series: Model 4812.35, Fitting/Connector Type: Branch Connector, 4 x 3/4 in Nominal, Press x FNPT, SCH 40/STD, 200 psi, 250 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 1.69 in Dia x 1.65 in L, Import

Specifications

 Application For fire protection applications
 Brand Name MegaPress®
 Dimensions 1.69 in Dia x 1.65 in L
 Domestic or Import Import
 End Style Press x FNPT
 Finish Nickel Plated/Zinc Plated
 Fitting Type Branch Connector
 Includes EPDM Sealing Element
 Manufacturer Part Number 26910
 Material Carbon Steel
 Nominal Size 4 x 3/4 in
 PART NUMBER KEYWORDS 26910 ; 691514269108 ; 69151426910 ; 30691514269109
 Pressure Rating 200 psi
 Schedule Rating SCH 40/STD
 Series Model 4812.35
 Standards/Approvals ASME B1.20.1|FM Approved|UL Listed
 Temperature Rating 250 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
