Viega

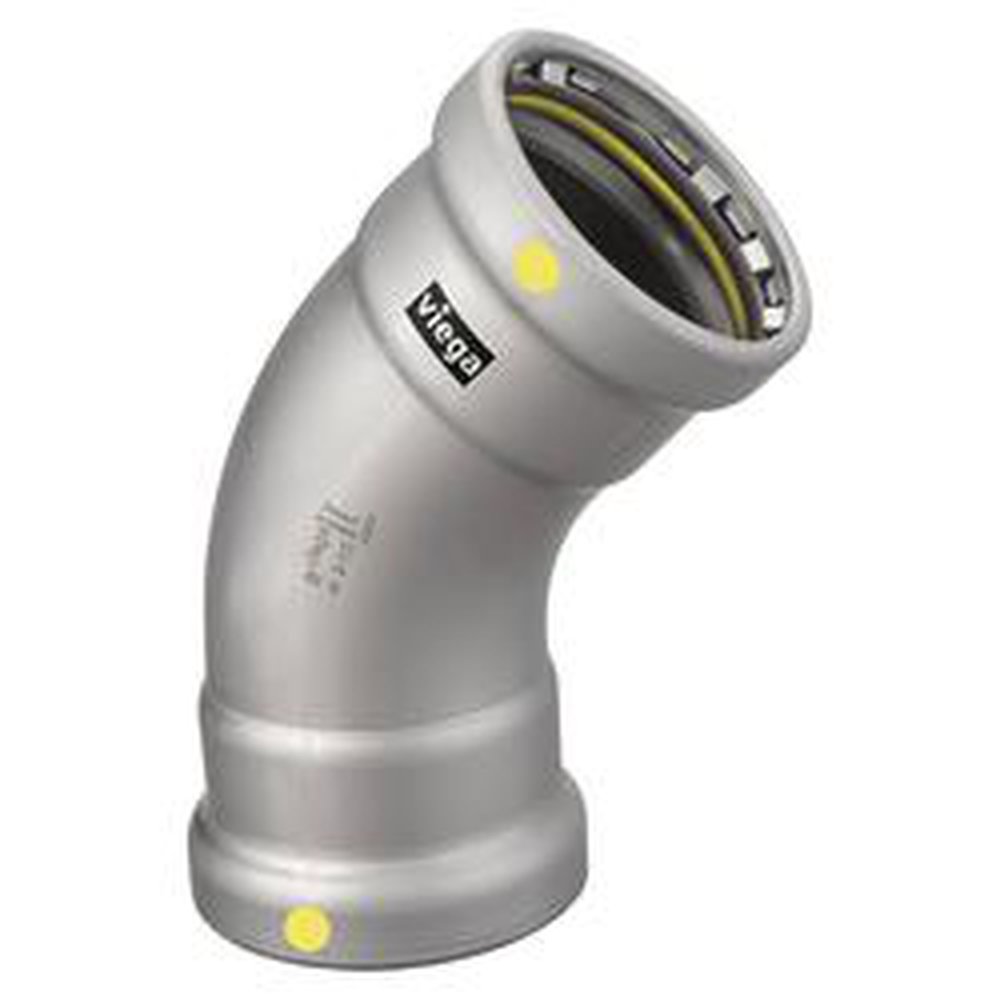

28640 4 MEGAPRESS-G XL 45 ELBOW CS HNBR SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress® Elbow, Series: Model 6626XL, Fitting/Connector Type: 45 deg Elbow, 4 in Nominal, Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, Import

Manufacturer PN: 28640

UPC:  69151428640

Forberg Smith PN: 4089225

Invoice Description:

28640 4 MEGAPRESS-G XL 45 ELBOW CS HNBR SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 28640 Model 6626XL Elbow, 4 in Nominal, Press End Style, Carbon Steel, Import

Log In for Pricing and Availability




Description

Viega MegaPress® is a carbon steel, cold press system designed for use in compressed air, fuel gas, and heating oil applications. Viega MegaPress® fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 5 to SCH 40/STD carbon steel pipe. Viega MegaPress® fittings for fuel gas or fuel oil systems shall be used with ASTM A53 SCH 40/STD carbon steel pipe. MegaPress® is CSA LC4 approved for fuel oil and fuel gas installations.
MegaPress® Elbow, Series: Model 6626XL, Fitting/Connector Type: 45 deg Elbow, 4 in Nominal, Press, SCH 40/STD, 125 psi for Fuel Gas/200 psi for Other Applications, -40 to 180 deg F, Carbon Steel, Nickel Plated/Zinc Plated, Import

Specifications

 Application Natural/Fuel Gas, Lubricants/Oils, Fuel Oils, Compressed Air Industrial Gases and Vacuum
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Press
 Finish Nickel Plated/Zinc Plated
 Fitting Type 45 deg Elbow
 Includes HNBR Sealing Element
 Manufacturer Part Number 28640
 Material Carbon Steel
 Nominal Size 4 in
 PART NUMBER KEYWORDS 28640 ; 691514286402 ; 69151428640 ; 30691514286403
 Pressure Rating 125 psi for Fuel Gas/200 psi for Other Applications
 Schedule Rating SCH 40/STD
 Series Model 6626XL
 Standards/Approvals ASTM/ASME B31.1/B31.3/B31.9/ANSI LC 4a|ABS Standard|ASME B31|ASTM A53/A106/A135/A795|CRN: 0A14541.5 A/B/C|CSA: ANSI LC 4a/CSA 6.32a|DNV-GL|IAPMO: ANSI LC 4a/CSA 6.32a|IAPMO National Standard Plumbing Code (NSPC)|IAPMO Uniform Mechanical Code (UMC)|IAPMO Uniform Plumbing Code (UPC)|ICC-ES: ANSI LC 4a/CSA 6.32a|ICC International Fuel Gas Code (IFGC)|ICC International Mechanical Code (IMC)|ICC International Residential Code (IRC)|Lead Law Compliant|Lloyd's Register CAN/CSA-B149.1|NACE RP0169-2002|NFPA 54/Z223: National Fuel Gas Code|NFPA 58: Liquefied Petroleum Gas Code|UMC Chapter 13 Section 1312.1.3|UPC Listed
 Temperature Rating -40 to 180 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Suitable for use with ASTM SCH 5 to 40 carbon steel pipe in accordance with AHJ requirements
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
