Dixon Valve & Coupling

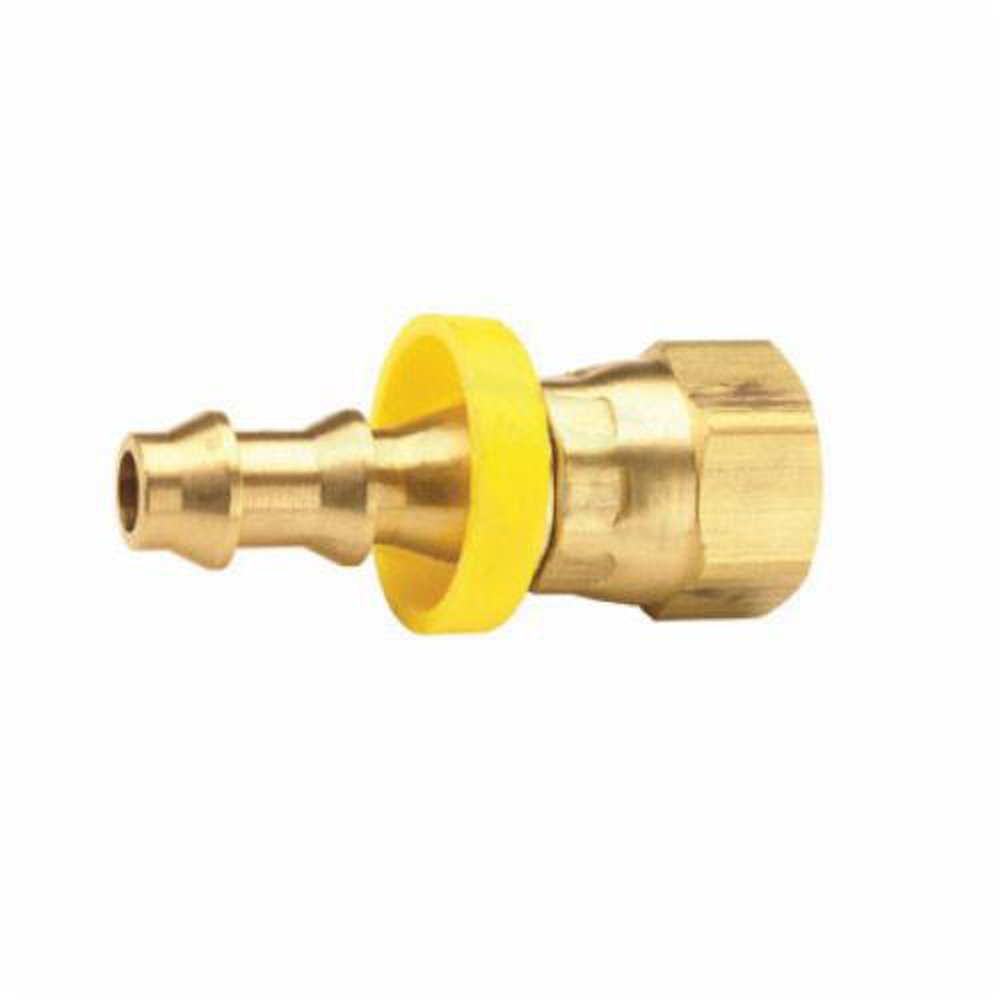

2870407C DIXON SWV HS BARB

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose to Tube Fitting, Series: 287, Fitting/Connector Type: Adapter, 1/4 in x 7/16-20 Nominal, Push-On Hose Barb x Female 45 deg SAE/37 deg JIC Swivel End Style, 9/16 in Hex, 1-1/2 in Length, 2 Barb, 0.77 in Barb Length, 350 psi Pressure, -40 to 212 deg F, Brass, Domestic

Manufacturer PN: 2870407C

UPC:  69746423698

Forberg Smith PN: 4390890

Invoice Description:

2870407C DIXON SWV HS BARB


How Can We Make This Page Better?

Dixon® 2870407C 287 Hose to Tube Fitting, 1/4 in x 7/16-20 Nominal, Push-On Hose Barb x Female 45 deg SAE/37 deg JIC Swivel, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Hose to Tube Fitting, Series: 287, Fitting/Connector Type: Adapter, 1/4 in x 7/16-20 Nominal, Push-On Hose Barb x Female 45 deg SAE/37 deg JIC Swivel End Style, 9/16 in Hex, 1-1/2 in Length, 2 Barb, 0.77 in Barb Length, 350 psi Pressure, -40 to 212 deg F, Brass, Domestic

Specifications

 Application For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
 Barb Length 0.77 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Push-On Hose Barb x Female 45 deg SAE/37 deg JIC Swivel
 Fitting Type Adapter
 Hex Size 9/16 in
 Length 1-1/2 in
 Manufacturer Part Number 2870407C
 Material Brass
 Nominal Size 1/4 in x 7/16-20
 Number Of Barb 2
 PART NUMBER KEYWORDS 2870407C
 Pressure Rating 350 psi
 Series 287
 Standards/Approvals SAE J476/J512/J514/J516|PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
 Temperature Rating -40 to 212 deg F

Features

▪ Dual angle seat construction
▪ Lock-on fittings will properly grip lock-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
