Burkert
298123 BURKERT 0290-A-25,0-FF-VA-NM86-120/UC-CJ 290 NC 25MM 1 FPM SS 316L NPT 25MM 1 120VAC 145 WATT INRUSH, 10 WATT HOLD

Mouse over image to zoom, click to enlarge

Manufacturer PN: 298123

Forberg Smith PN: 4300929

Invoice Description:

298123 BURKERT 0290-A-25,0-FF-VA-NM86-120/UC-CJ 290 NC 25MM 1 FPM SS 316L NPT 25MM 1 120VAC 145 WATT INRUSH, 10 WATT HOLD

UNSPSC: 39120000


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

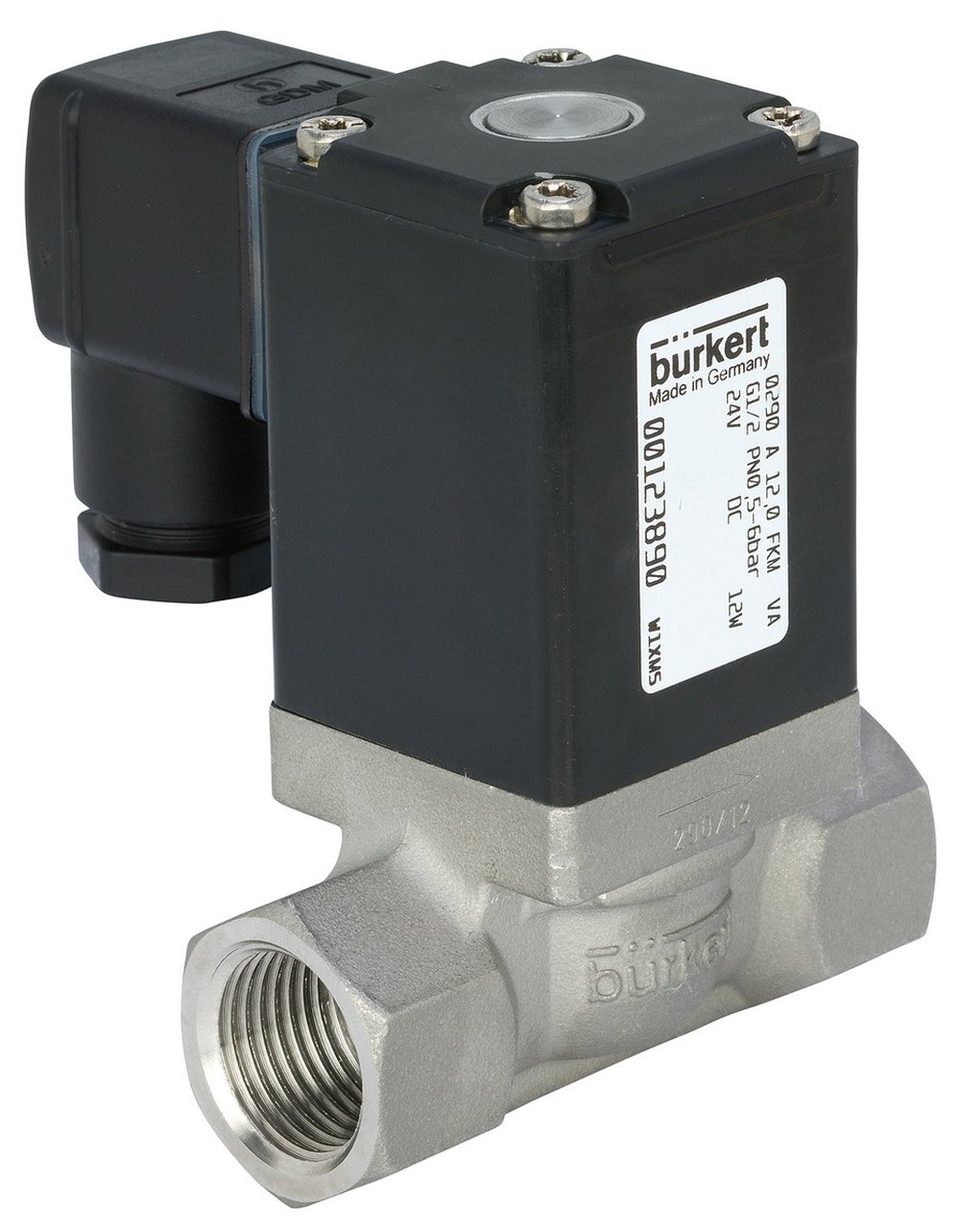

Burkert 0290-A-25,0-FF-VA-NM86-120/UC-CJ 298123 120 AC 2-Way Stainless Steel 1 In Solenoid Valve Normally Closed General Service

Price:  $1,397.00 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

The 0290 valve is a servo-assisted diaphragm valve of the S.EV series. The valve opens without differential pressure. The opening process is facilitated by the fix coupling of the diaphragm to the magnetic core. The integrated soft-kick function ensures gentle opening. Various diaphragm materials are available depending on the actual application. Stainless steel body variants complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. A 'kick and drop' electronics assembly is moulded into the coil of all DC variants to reduce electrical power consumption. NEMA 4X is available on request.
2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,00 bar - 16,00 bar | Stainless steel | Inner thread - NPT1 | 120,00 V - 120,00 V | FKM (Fluor rubber) | 0,00 C - 90,00 C | Valve complete

Specifications

 Ambient Temperature Max 55 C
 Body Design 2-Way
 Body Material Stainless Steel
 Brand Name Burkert
 Coil Wattage 145 W
 Electrical Connection DIN
 Flow Coefficient 10 m3/h Kv
 Max Fluid Temp 90 C
 Nominal Pressure Minimum 0 bar
 Nominal Pressure Rating Max Liquid 16 bar
 Operation Normally Closed
 Size 1 In
 Voltage Rating 120 AC

Resources

 Product Data Sheet
