Emerson Electric
2FC1 1/4" NUMATICS NEEDLE VALVE

Mouse over image to zoom, click to enlarge

Description: Numatics® Flow Control Valve, In-Line, 1/2 in Port, 175 psi Pressure, 0 to 160 deg F, 3/8 in Port, Screw Actuator, Aluminum Body, Nickel Plated Brass Cartridge/Stainless Steel Spring/Screw Trim, Buna-N Seal Softgoods, Anodized, 1.08 in H x 1.5 in W Dimensions

Manufacturer PN: 2FC1

Forberg Smith PN: 3088791

Invoice Description:

2FC1 1/4" NUMATICS NEEDLE VALVE

UNSPSC: 39120000


How Can We Make This Page Better?

Numatics® 2FC1 In-Line Flow Control Valve, 1/2 in Port, 175 psi Pressure, Aluminum Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Numatics® Flow Control Valve, In-Line, 1/2 in Port, 175 psi Pressure, 0 to 160 deg F, 3/8 in Port, Screw Actuator, Aluminum Body, Nickel Plated Brass Cartridge/Stainless Steel Spring/Screw Trim, Buna-N Seal Softgoods, Anodized, 1.08 in H x 1.5 in W Dimensions

Specifications

 Actuator Type Screw
 Body Material Aluminum
 Brand Name Numatics®

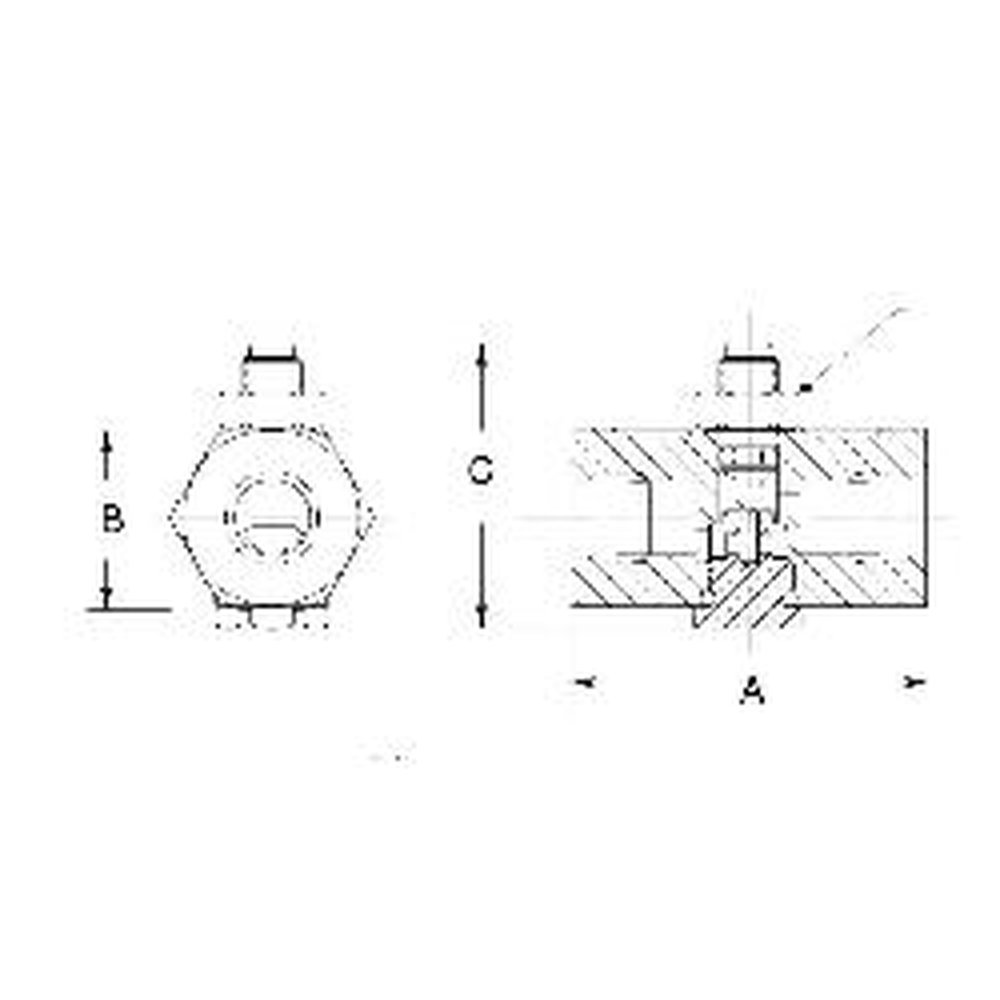

 Dimensions 1.08 in H x 1.5 in W
 Finish Anodized
 Manufacturer Part Number 2FC1
 PART NUMBER KEYWORDS 2FC1
 Port Size 1/2 in
 Pressure Rating 175 psi
 Softgoods Material Buna-N Seal
 Temperature Rating 0 to 160 deg F
 Trim Material Nickel Plated Brass Cartridge/Stainless Steel Spring/Screw
 Type In-Line

Features

▪ Body swivels 360 deg, provides accurate speed control in a compact size and eliminates need for fitting
