Dixon Valve & Coupling

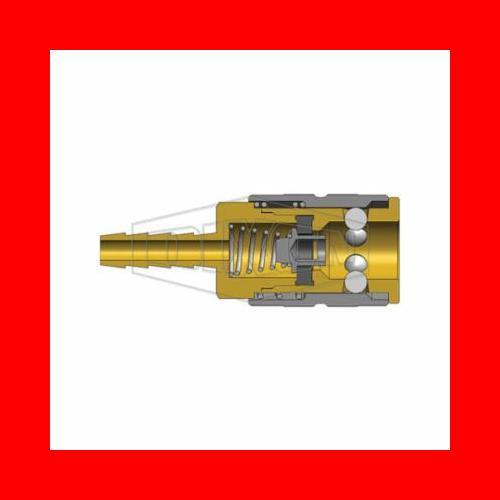

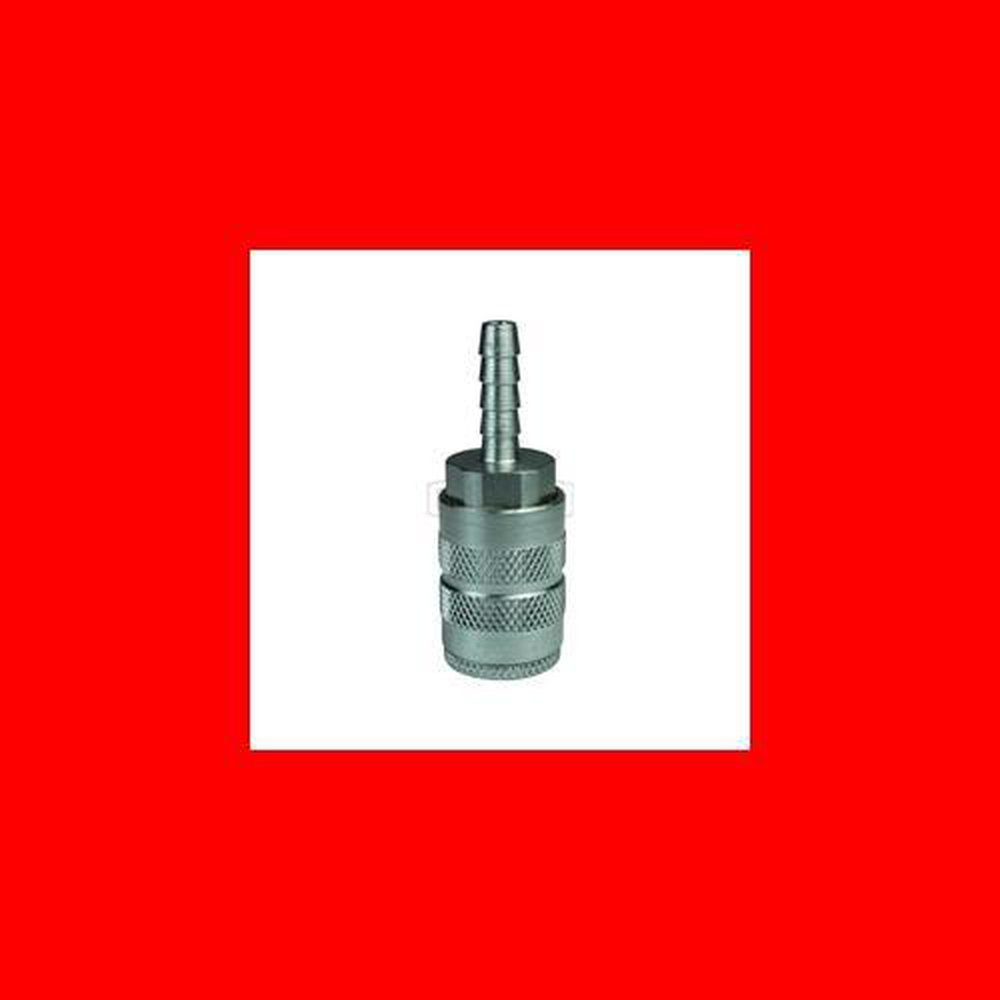

2FS3-S DIXON 1/4 SS COUPLER

Mouse over image to zoom, click to enlarge

  • 2FS3-S DIXON 1/4 SS COUPLER
  • 2FS3-S DIXON 1/4 SS COUPLER

Description: Dixon® Quick Disconnect Pneumatic Manual Coupler, Industrial, Series: F Series, 1/4 in Nominal, Quick Disconnect Coupler x Standard Hose Barb End Style, 3/4 in Hex, 2.53 in Length, 500 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 0.88 in OD

Manufacturer PN: 2FS3-S

UPC:  69746445680

Forberg Smith PN: 3977603

Invoice Description:

2FS3-S DIXON 1/4 SS COUPLER


How Can We Make This Page Better?

Dixon® 2FS3-S F Series Industrial Quick Disconnect Pneumatic Manual Coupler, 1/4 in Nominal, Quick Disconnect Coupler x Standard Hose Barb, 500 psi Pressure, 303 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Quick Disconnect Pneumatic Manual Coupler, Industrial, Series: F Series, 1/4 in Nominal, Quick Disconnect Coupler x Standard Hose Barb End Style, 3/4 in Hex, 2.53 in Length, 500 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 0.88 in OD

Specifications

 Application Industrial
 Brand Name Dixon®
 Dimensions 0.88 in OD
 End Style Quick Disconnect Coupler x Standard Hose Barb
 Hex Size 3/4 in
 Length 2.53 in
 Manufacturer Part Number 2FS3-S
 Material 303 Stainless Steel
 Nominal Size 1/4 in
 PART NUMBER KEYWORDS 2FS3-S ; 2FS3S ; 200441-2-3 ; 20044123
 Pressure Rating 500 psi
 Series F Series
 Standards/Approvals ROHS Compliant
 Temperature Rating -40 to 250 deg F
 Type Industrial

Features

▪ Machined components are manufactured using solid bar stock
▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ Nitrile seals are standard
▪ Steel componentry is plated using ROHS compliant trivalent chrome
▪ Steel sleeve and steel tubular valve
