Tyler Pipe & Coupling

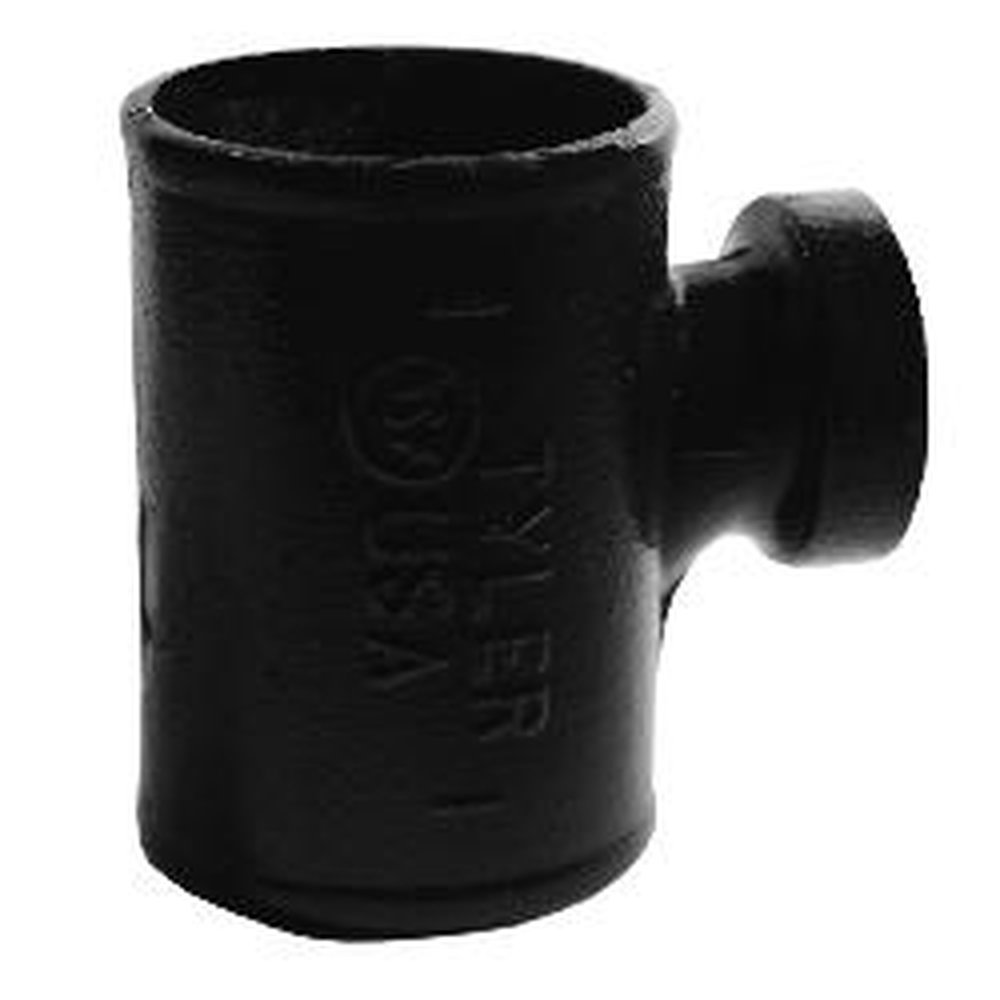

2X1-1/2 NH TAPPED TEE NH-34

Mouse over image to zoom, click to enlarge

Description: Tyler Pipe Sanitary Tee, Tapped, Tee Fitting/Connector, 2 x 2 x 1-1/2 in Nominal, No-Hub End Style, 5-11/16 in Length, Cast Iron, 3-1/4 x 2-13/16 in Center to End Dimensions

Manufacturer PN: 007999

UPC:  67061000799

Forberg Smith PN: 3034077

Invoice Description:

2X1-1/2 NH TAPPED TEE NH-34


SPEC SHEET

How Can We Make This Page Better?

Tyler Pipe 007999 Tapped Sanitary Tee, 2 x 2 x 1-1/2 in Nominal, No-Hub End Style, Cast Iron

Log In for Pricing and Availability




Description

All 1-1/2 in diameter and larger cast iron soil pipe and fittings for above and below grade soil, waste, vent lines, rain water conductors and storm drainage lines shall bear the registered insignia NO HUB® indicating that these items used in the sanitary system comply with the Cast Iron Soil Pipe Institute Standards 301 or ASTM A888. Tyler Pipe Company strongly recommends that its hubless cast iron pipe and fittings be joined with shielded couplings manufactured in accordance with CISPI 310. The use of unshielded couplings or any coupling not meeting the above specifications will void the product warranty.
Tyler Pipe Sanitary Tee, Tapped, Tee Fitting/Connector, 2 x 2 x 1-1/2 in Nominal, No-Hub End Style, 5-11/16 in Length, Cast Iron, 3-1/4 x 2-13/16 in Center to End Dimensions

Specifications

 Brand Name Tyler Pipe
 Dimensions 3-1/4 x 2-13/16 in Center to End
 End Style No-Hub
 Fitting Type Tee
 Length 5-11/16 in
 Manufacturer Part Number 007999
 Material Cast Iron
 Nominal Size 2 x 2 x 1-1/2 in
 PART NUMBER KEYWORDS 007999 ; 670610007999 ; 67061000799
 Standards/Approvals ASTM A888|CISPI 301
 Type Tapped

Resources

 Catalog
 Catalog Page
 Product Data Sheet
