ASCO

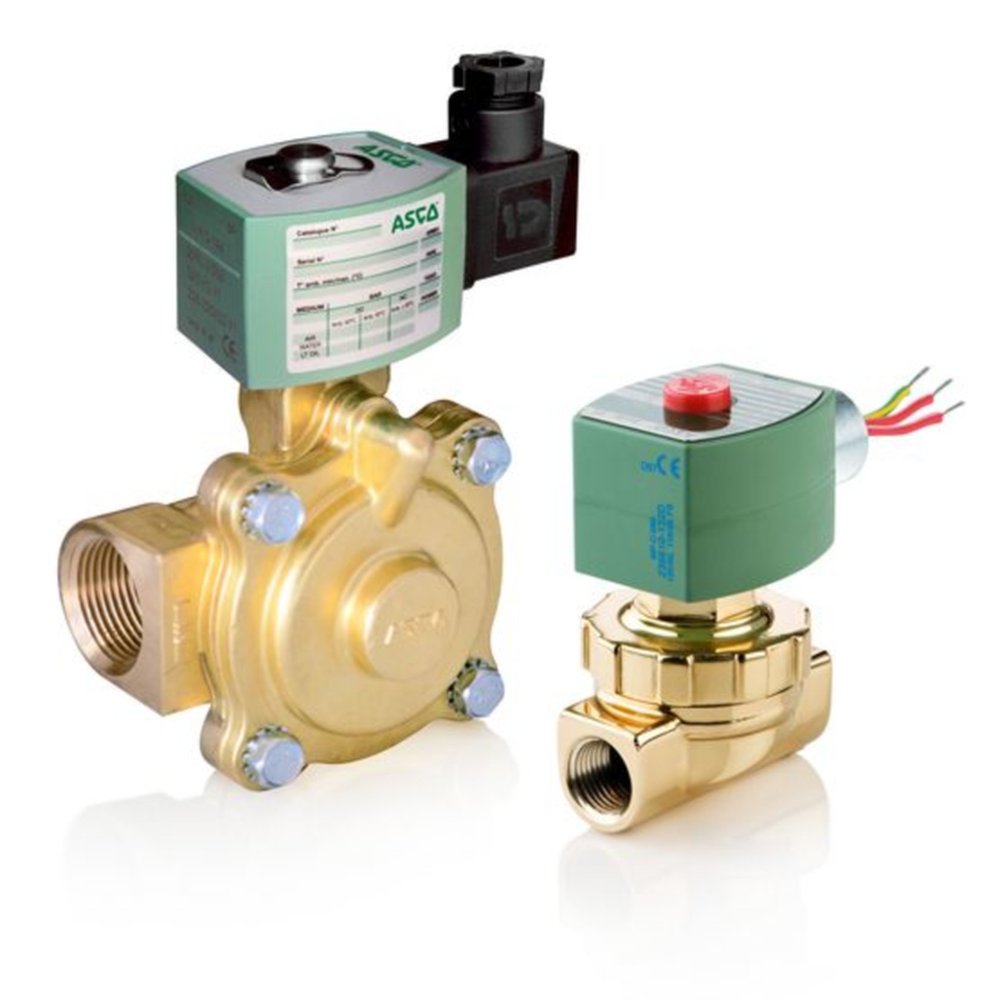

3/4 8220G409 BRS 2-WAY N/C 120/60 125 PSI STEAM MIN5 CV 8.8 ASCO VALVE

Mouse over image to zoom, click to enlarge

Description: ASCO Series 8220 Solenoid Valve for Hot Water and Steam Applications. See Catalog Datasheet for more information.

Manufacturer PN: 8220G409AC120/60,110/50D

Forberg Smith PN: 3043874

Invoice Description:

3/4 8220G409 BRS 2-WAY N/C 120/60 125 PSI STEAM MIN5 CV 8.8 ASCO VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

ASCO 8220G409 120/60AC 2-Way Brass 3/4 In Solenoid Valve, Normally Closed, Hot Water and Steam

Price:  $472.00 / ea


Availability: 6 ea  i


Quantity  ea Add to Cart

Description

ASCO Series 8220 Solenoid Valve for Hot Water and Steam Applications. See Catalog Datasheet for more information.

Specifications

 Ambient Temperature Range 32 to 125°F
 Body Design 2-Way
 Body Material Brass
 Brand Name ASCO
 Category Solenoids
 Coil Class FT
 Coil Order Code 238810-032-D*
 Coil Watt Rating 10.1
 Connection Female NPT Threaded
 Construction Pilot Operated
 Cv Flow Factor 8.8
 Electrical Connection 1/2" Conduit w/ 18" Leads
 Manufacturer ASCO
 Max Fluid Temperature 210°F
 Max ODP Hot Water 150 PSI
 Max ODP Steam 125 PSI
 Minimum OPD 5 PSI
 Operation Normally Closed
 Rebuild Kit Order Code 323471
 Seal Material EPDM and/or PTFE
 Series 8220
 Size 3/4 in
 Solenoid Enclosure Watertight
 Type Solenoid Valve
 Voltage 120/60,110/50 AC

Resources

 Product Data Sheet
