Spears Manufacturing

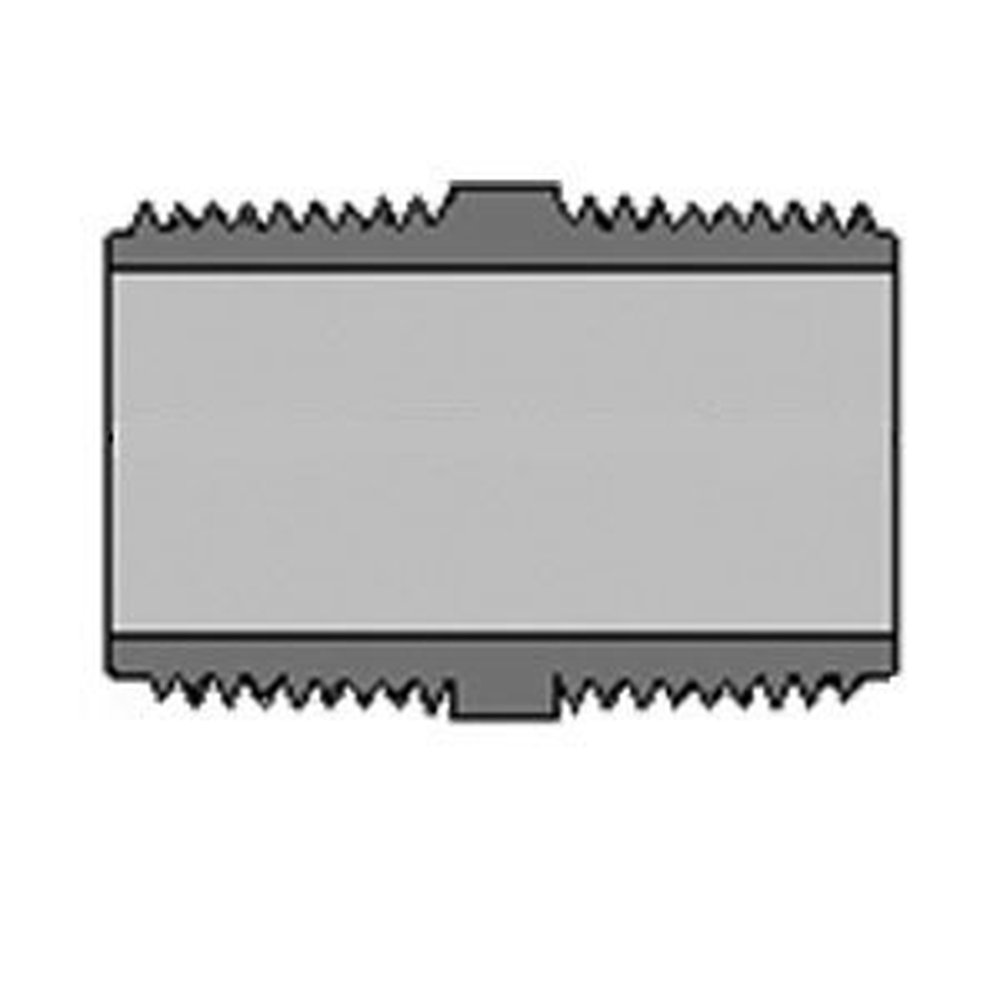

3/4X2-1/2 SCH 80 CPVC NIP 883-025C

Mouse over image to zoom, click to enlarge

Description: Spears® Pipe Nipple, 3/4 in Nominal Size, MNPT, 2-1/2 in Length, SCH 80/XH, Molded, CPVC, Gray, Domestic

Manufacturer PN: 883-025C

UPC:  05421112423

Forberg Smith PN: 3004578

Invoice Description:

3/4X2-1/2 SCH 80 CPVC NIP 883-025C


SPEC SHEET

How Can We Make This Page Better?

Spears® 883-025C Pipe Nipple, 3/4 in x 2-1/2 in L MNPT, CPVC, SCH 80/XH, Molded, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

PVC/CPVC/PE nipples furnished may be produced from extruded stock, or from molding grade PVC/CPVC compounds. Both processes provide quality products meeting ASTM requirements. Spears® thermoplastic nipples are produced in a variety of styles, several of which are illustrated below. These are referred to as Plain (no threads), TOE (Threaded One End), TBE (Threaded Both Ends), Grooved (which can be Plain x Groove, Groove x Thread, & Groove x Groove). Special varieties of polyethylene nipples include Cut-off, Four-In-One Cut-off and Four-In-One Cut-off Reducing. Close nipples are simply two (2) threads back to back. Short nipples is a term commonly used to designate a slightly longer nipple that is usually the smallest length above "close". The following table shows length of close and short nipples.
Spears® Pipe Nipple, 3/4 in Nominal Size, MNPT, 2-1/2 in Length, SCH 80/XH, Molded, CPVC, Gray, Domestic

Specifications

 Brand Name Spears®
 Color Gray
 Construction Molded
 Domestic or Import Domestic
 End Style MNPT
 Length 2-1/2 in
 Manufacturer Part Number 883-025C
 Material CPVC
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS 883-025C ; 883025C ; 054211124239 ; 54211124239 ; 05421112423
 Schedule Rating SCH 80/XH
 Standards/Approvals ASTM D1784/D1785/F437/F439/F441
