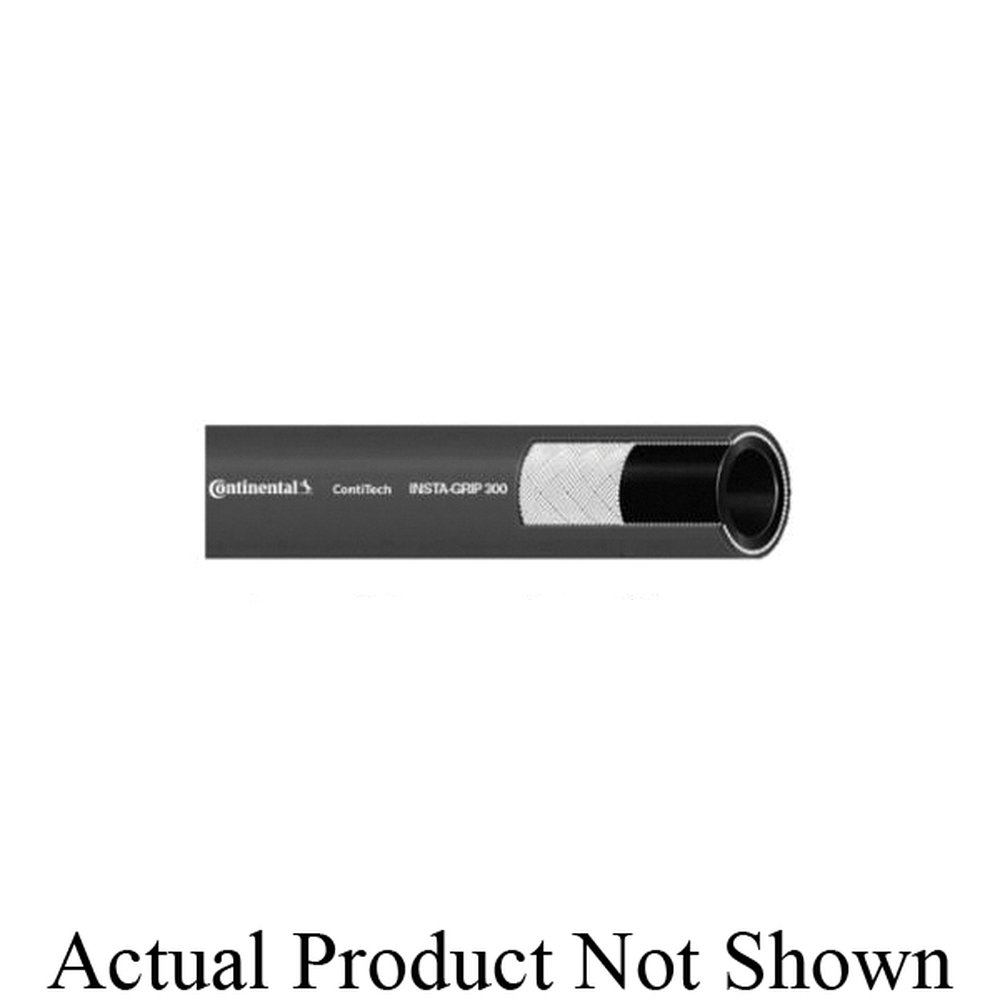

3/8 300 PSI BLUE INSTA- GRIP AIR/WATER HOSE

Mouse over image to zoom, click to enlarge

Description: For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems general industrial maintenance and automotive assembly applications. Non-conductive minimum electrical resistance greater than one (1) megohm per inch of hose length at 1000 Volts DC. MSHA approved covers.

Manufacturer PN: 20022681

Forberg Smith PN: 3050824

Invoice Description:

3/8 300 PSI BLUE INSTA- GRIP AIR/WATER HOSE

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

3/8 300 PSI BLUE INSTA- GRIP AIR/WATER HOSE

Price:  $5.44 / ft

(1 ft contains 12 in)



Availability: 755 ft  i


Quantity  ft Add to Cart

Description

For use with push-on fittings at working pressures of 300 psi. For low-pressure hydraulic and pneumatic systems such as shop air systems general industrial maintenance and automotive assembly applications. Non-conductive minimum electrical resistance greater than one (1) megohm per inch of hose length at 1000 Volts DC. MSHA approved covers.

Specifications

 BendRadius In 3
 BendRadius Mm 76.2
 Brand Name Continental
 ConstructionTube Chemivic oil and heat-resistant synthetic rubber ARPM class A (high oil resistance) [Silicone is not used in the manufacturing of this hose.]
 Country Of Origin US
 Cover Chemivic oil and heat-resistant synthetic rubber ARPM class A (high oil resistance) [Silicone is not used in the manufacturing of this hose.]
 Factory Stock Or Non-Stock S
 Hose Color / Fitting Material Blue
 Hose ID 3/8 In
 Hose ID (Fraction) 3/8
 Hose ID (MM) 9.53
 Hose ID (in) 0.38
 OD In 0.69
 OD Mm 17.53
 Product Code 53528101200400
 Reinforcement Black green blue red yellow and gray (contact customer service for more colors); MSHA approved weather- abrasion- and oil-resistant synthetic rubber. ARPM class B. (medium oil resistance)
 Series Insta-Grip 300
 Sub Brand INSTA-GRIP 300
 Working Pressure (Mpa) 2.07
 Working Pressure (PSI) 300

Resources

 Catalog
 Product Data Sheet

Package Information

 Base UOM FT
 Length (ft) 500
 Weight Kg 0.21
 Weight Lb 0.14
