Viega
30615 1-1/4 MEGAPRESS-G BV BRZ/CS PRESS X PRESS

Mouse over image to zoom, click to enlarge

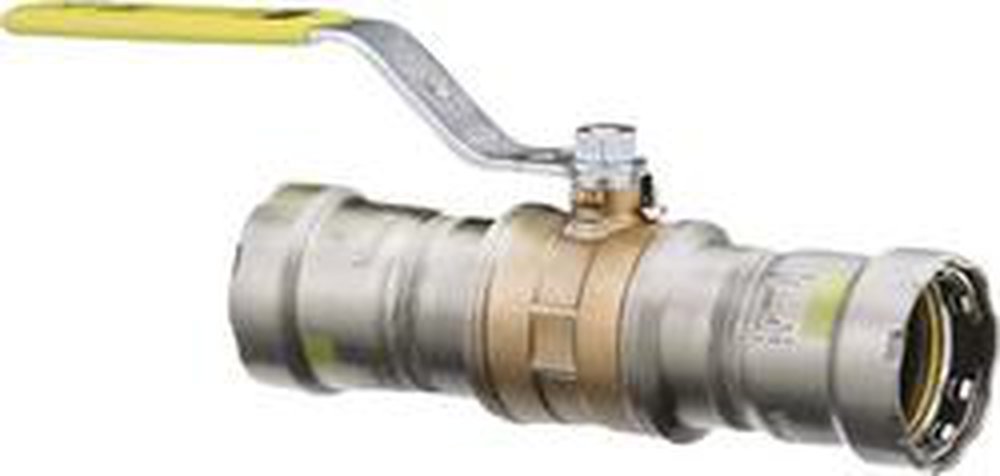

  • 30615 1-1/4 MEGAPRESS-G BV BRZ/CS PRESS X PRESS
  • 30615 1-1/4 MEGAPRESS-G BV BRZ/CS PRESS X PRESS

Description: MegaPress®, 30615, Ball Valve, Series: 6675, 1-1/4 in Nominal, Press End Style, 125 psi Pressure, -40 to 180 deg F, Stainless Steel Ball, 7.55 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Bronze Body, Eco Brass Stem Trim, Domestic

Manufacturer PN: 30615

UPC:  69151430615

Forberg Smith PN: 4566164

Invoice Description:

30615 1-1/4 MEGAPRESS-G BV BRZ/CS PRESS X PRESS


How Can We Make This Page Better?

MegaPress® 30615 6675 Ball Valve, 1-1/4 in Nominal, Press End Style, Bronze Body, Domestic

Log In for Pricing and Availability




Description

MegaPress®, 30615, Ball Valve, Series: 6675, 1-1/4 in Nominal, Press End Style, 125 psi Pressure, -40 to 180 deg F, Stainless Steel Ball, 7.55 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Bronze Body, Eco Brass Stem Trim, Domestic

Specifications

 Body Material Bronze
 Brand Name MegaPress®
 Domestic or Import Domestic
 End Style Press
 Inlet to Outlet Length 7.55 in
 Manufacturer Part Number 30615
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 30615 ; 30691514306156
 Pressure Rating 125 psi
 Series 6675
 Temperature Rating -40 to 180 deg F
 Top to Inlet Center 2.69 in
 Trim Material Eco Brass Stem

Features

▪ For use with Sch.5 to Sch.40 carbon steel pipe
▪ Carbon steel press ends
