Dixon Valve & Coupling

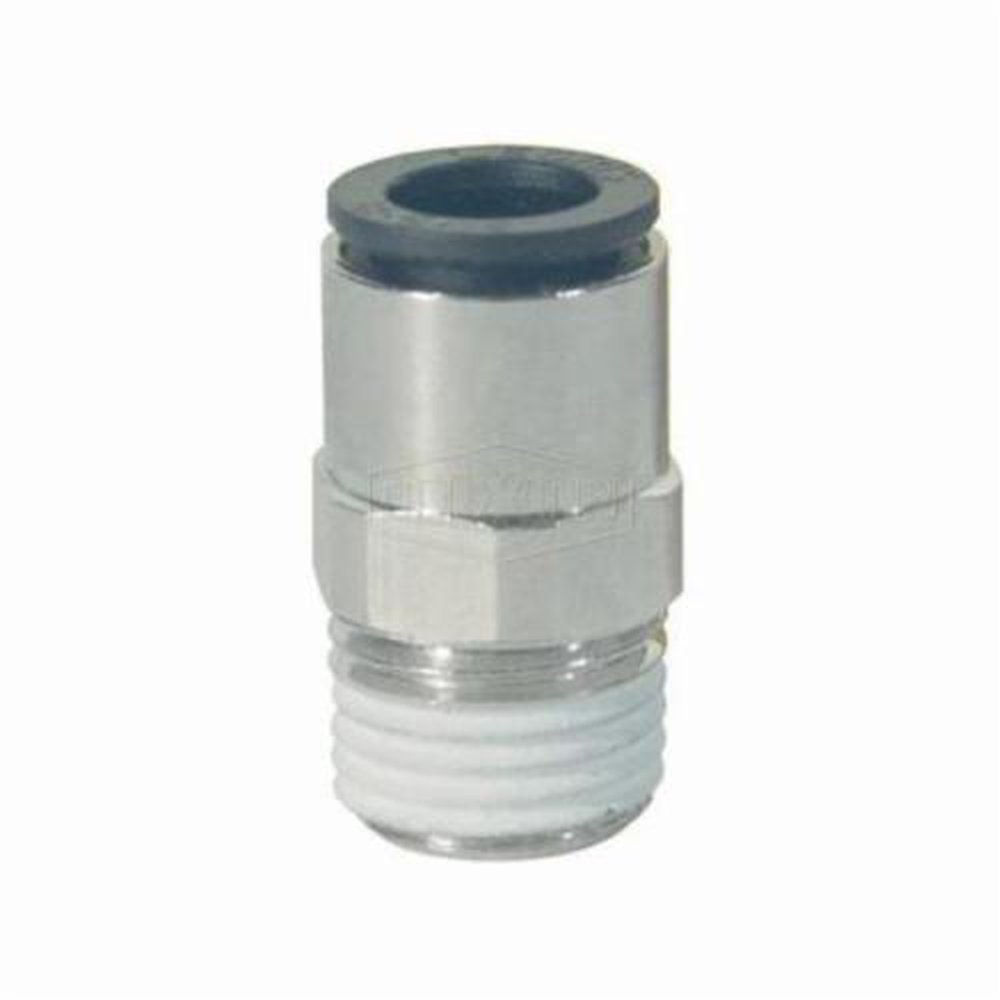

3175 53 11 PARKER 1/8 OD PRESS X 1/8 MIP PLATED BRS MALE ADAPTER W/ NITRILE SEAL

Mouse over image to zoom, click to enlarge

Description: Legris by Dixon® Push-In Connector, 1/8 in Nominal, MNPT x Tube, 290 psi, -4 to 175 deg F, Brass/Nylon, Nickel Plated, Domestic

Manufacturer PN: 31755311;3175-53-11

UPC:  69746410154

Forberg Smith PN: 3869850

Invoice Description:

3175 53 11 PARKER 1/8 OD PRESS X 1/8 MIP PLATED BRS MALE ADAPTER W/ NITRILE SEAL

UNSPSC: 40141720


How Can We Make This Page Better?

Legris by Dixon® 31755311 Push-In Connector, 1/8 in Nominal, MNPT x Tube, 290 psi Pressure, Brass/Nylon, Domestic

Price:  $3.29 / ea


Availability: 185 ea  i


Quantity  ea Add to Cart

Description

Legris by Dixon® Push-In Connector, 1/8 in Nominal, MNPT x Tube, 290 psi, -4 to 175 deg F, Brass/Nylon, Nickel Plated, Domestic

Specifications

 Brand Name Legris by Dixon®
 Domestic or Import Domestic
 End Style MNPT x Tube
 Finish Nickel Plated
 Manufacturer Part Number 31755311
 Material Brass/Nylon
 Nominal Size 8-Jan in
 Pressure Rating 290 psi
 Standards/Approvals PROP65: These warnings inform Californians about their exposures to chemicals that cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 Temperature Rating -4 to 175 deg F

Features

▪ Buna-N D seal
▪ Black body is glass-filled nylon
▪ Maximum circuit pressure depends equally on the type and diameter of the tube used
▪ Pressure rating given at ambient temperature 70 deg F
▪ Positive seal - Sealing and holding is accomplished instantaneously
▪ Reusable connect and disconnect numerous times
▪ Full flow fitting seals on outside diameter of tubing
▪ Pre-applied threaded sealant on all tapered male pipe threads
▪ Compatible tubing - Semi-rigid nylon, polyurethane and polyethylene tube
▪ Vacuum of 28 in Hg (99% vacuum) capability
▪ Nickel plated brass threads
▪ Silicone free
▪ Polypropylene release button
